STR-DB725/DB825

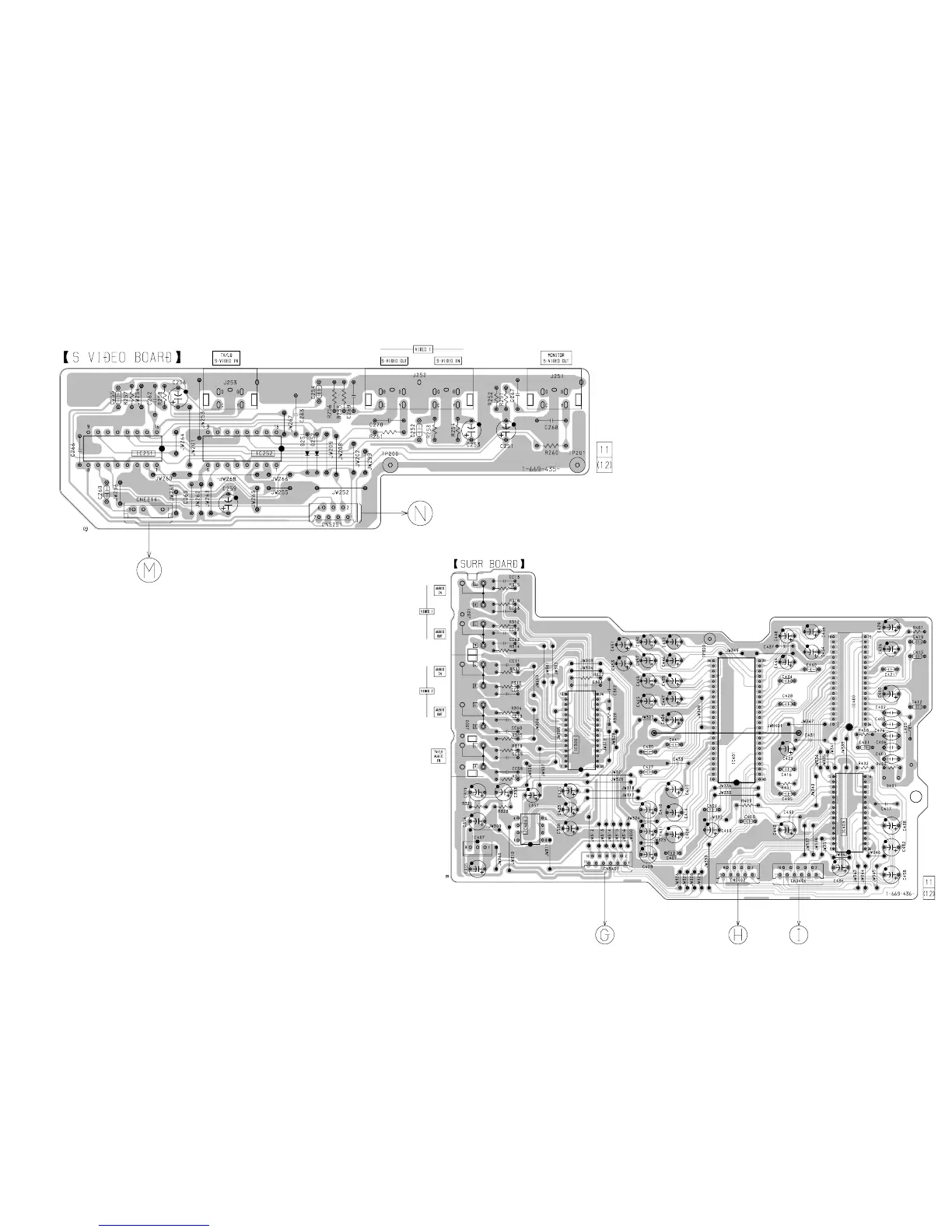

3-8. PRINTED WIRING BOARD – S-VIDEO SECTION –
• See page 5 for Circuit Boards Location.
(Page 19)
(Page 19) (Page 19)
(Page 15)
(Page 15)
