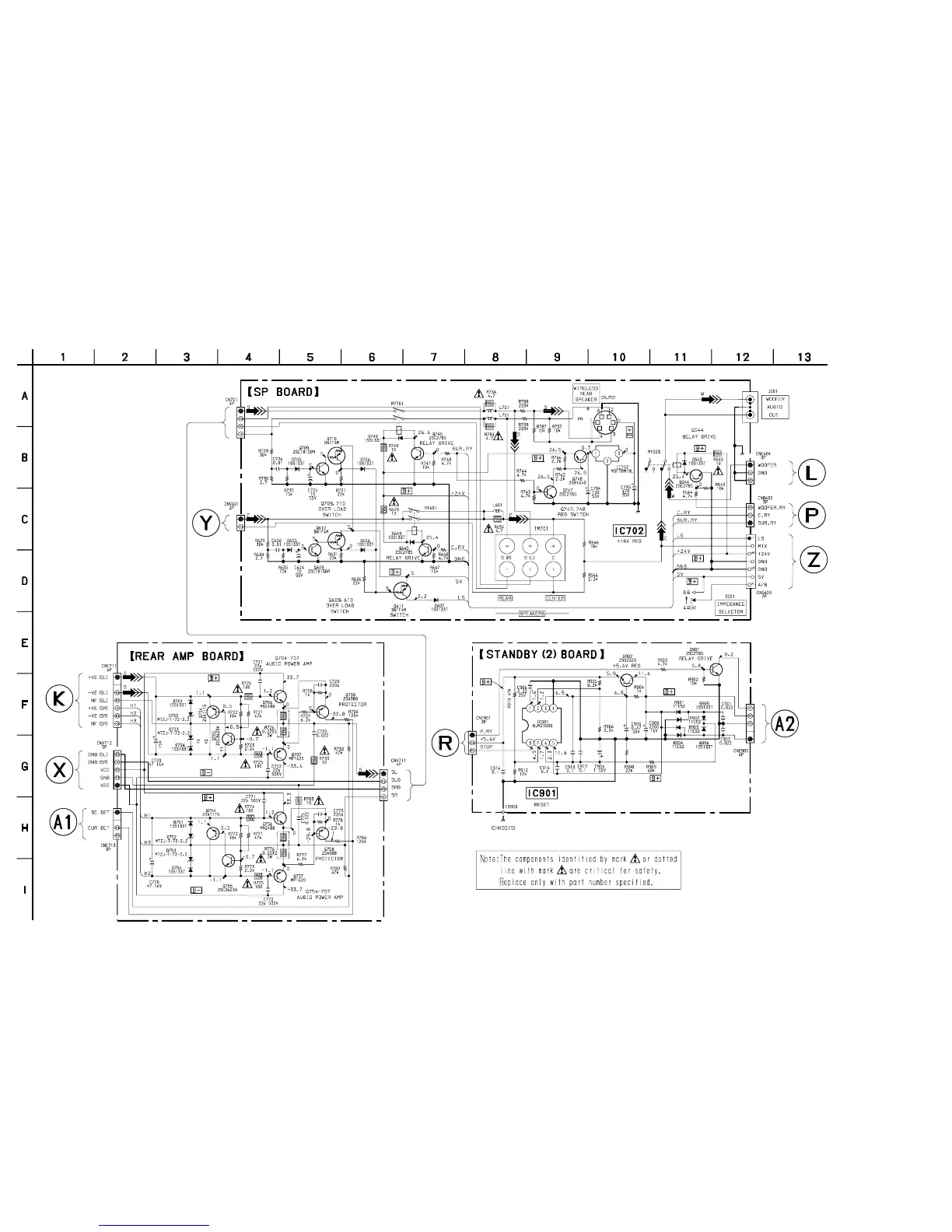

3-9. SCHEMATIC DIAGRAM – SPEAKER SECTION –
• See page 43 for IC Block Diagrams.
STR-DB725/DB825
(Page 38)
(Page 37)
(Page 37)
(Page 31)
(Page 41)
(Page 38)
(Page 31)
(Page 18)
(Page 18)
