– 48 –
SECTION 4

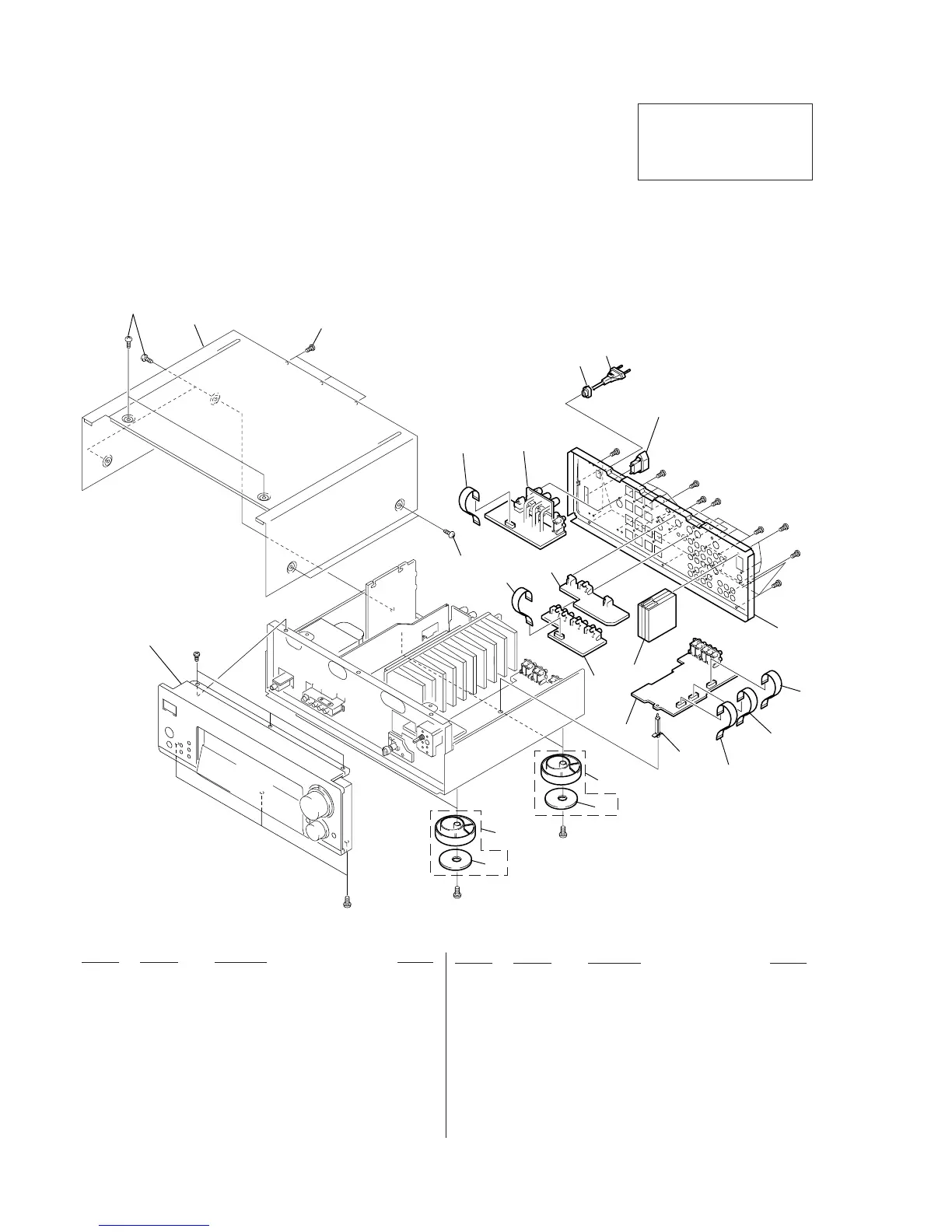

EXPLODED VIEWS
4-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
* 9 4-900-493-11 PANEL, BACK (DB825)
10 1-769-941-11 WIRE (FLAT TYPE)(11 CORE)
11 1-769-908-11 WIRE (FLAT TYPE)(9 CORE)
* 12 4-924-098-31 HOLDER, PC BOARD
* 13 3-703-244-00 BUSHING (2104), CORD
! 14 1-769-744-11 CORD, POWER
15 X-4949-523-1 FOOT ASSY (F50180S)
16 4-970-124-01 CUSHION (F50180S)
* 17 A-4407-575-A SURR BOARD, COMPLETE
! CNJ909 1-526-794-11 OUTLET, AC (AC OUTLET)
1 4-210-291-01 SCREW, TAPPING
* 2 4-900-512-01 CASE (DB725)
* 2 X-4950-431-1 CASE ASSY (DB825)
3 1-769-877-11 WIRE (FLAT TYPE)(7 CORE)(90mm)
* 4 A-4417-192-A SP BOARD, COMPLETE
* 5 A-4407-581-A S VIDEO BOARD, COMPLETE
6 1-769-875-11 WIRE (FLAT TYPE)(7 CORE)(70mm)
* 7 1-670-097-11 VIDEO BOARD
8 1-693-409-11 TUNER
* 9 4-900-493-01 PANEL, BACK (DB725)
1
1
1
2
3
4
CNJ909
#2
#2
#2
#2
#2
#2
#2
#2
#2
14
13
5
6
7
8
17
9
10
11
10
12
15
15
16
16
Front panel
#1
#1
#2
#2
To Next Page
