Sony STR-DE845 - Page 58

58

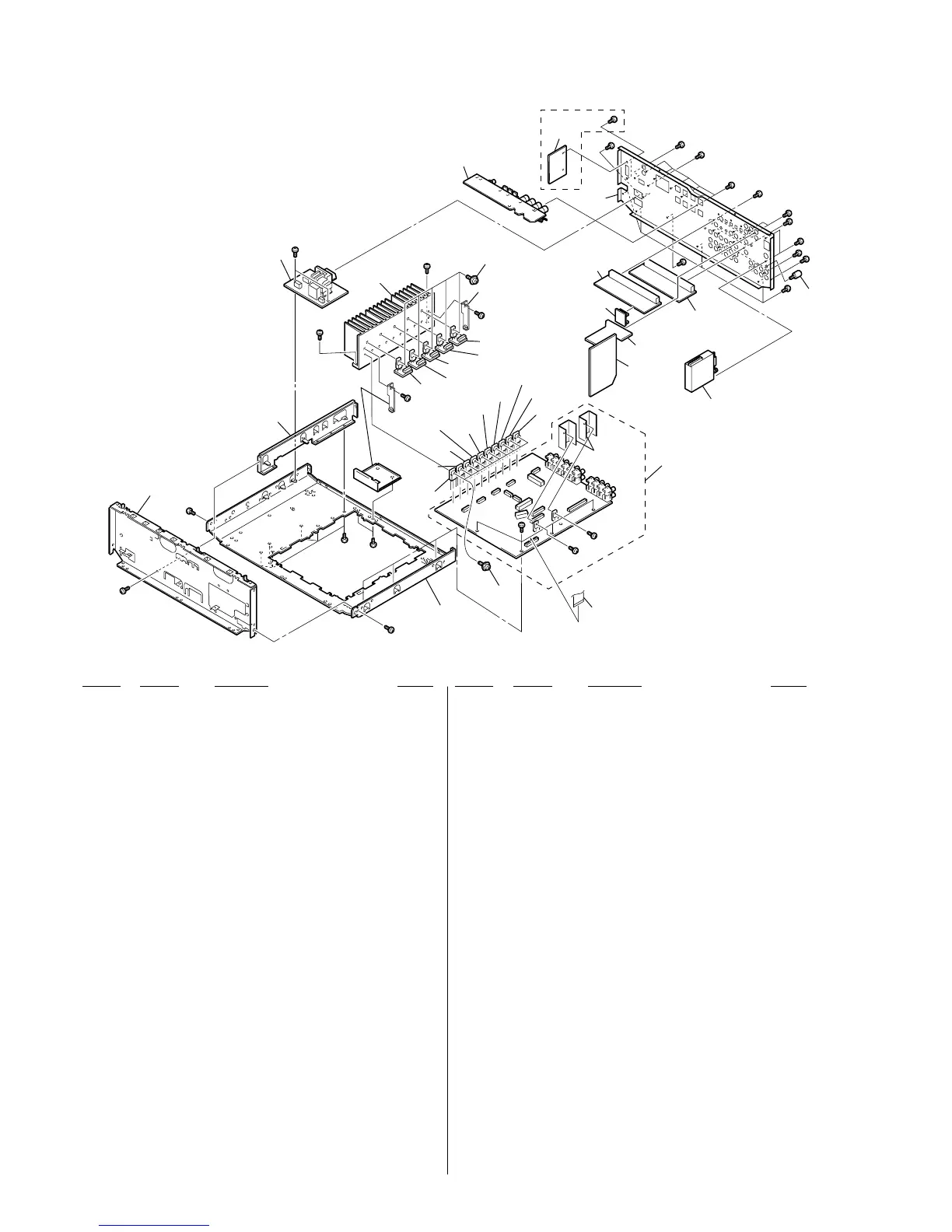

(3) CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
E, PX
#4
#4
#3
#3
#1
#1
#1
#1
#1
#1
#1
not
supplied
not
supplied
not supplied
TU301
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
110
119
107
108
106
102
109
111
120
112
113
117
106
Q757
Q756
Q707
Q706
Q556
Q606
Q506
Q557
Q607
Q507
118
104
103
105
114
not
supplied
not
supplied
101
not
supplied
not supplied
101 1-676-990-11 AC BOARD
102 1-676-986-11 BIAS (LS) BOARD
103 1-676-985-11 BIAS (C) BOARD
104 1-676-984-11 BIAS (R) BOARD
105 1-676-983-11 BIAS (L) BOARD
106 3-905-609-11 SCREW (TRANSISTOR)
107 1-676-991-11 SP BOARD
108 1-676-992-11 JOINT (1) (H) BOARD (DE845)
108 1-677-042-11 OSD JOINT (H) BOARD (DE945)
109 A-4428-783-A S-VIDEO BOARD, COMPLETE
(DE845: US, CND)
109 A-4428-817-A S-VIDEO BOARD, COMPLETE (DE945)
110 4-226-871-02 PANEL, BACK (DE945: US)
110 4-226-871-12 PANEL, BACK (DE945: CND)
110 4-226-871-32 PANEL, BACK (DE845: US)
110 4-226-871-42 PANEL, BACK (DE845: CND)
110 4-226-871-52 PANEL, BACK (MY, SP)
110 4-226-871-62 PANEL, BACK (CH)
110 4-226-871-72 PANEL, BACK (AUS)
110 4-226-871-82 PANEL, BACK (E, PX)
111 1-676-994-11 VIDEO BORAD (DE845)
111 A-4428-818-A OSD BOARD, COMPLETE (DE945)
112 1-676-982-11 5.1 IN BOARD
113 A-4428-791-A AU SW BOARD, COMPLETE
114 A-4428-764-A MAIN BOARD, COMPLETE (DE845: US)
114 A-4428-793-A MAIN BOARD, COMPLETE (DE845: CND)
114 A-4428-794-A MAIN BOARD, COMPLETE (EXCEPT US, CND)
114 A-4428-813-A MAIN BOARD, COMPLETE (DE945: US)
114 A-4428-822-A MAIN BOARD, COMPLETE (DE945: CND)
117 1-773-182-11 WIRE (FLAT TYPE) (23 CORE)
118 1-676-987-11 BIAS (RS) BOARD
119 1-677-004-11 V. SWITCH BOARD (E, PX)
* 120 1-537-738-21 TERMINAL, EARTH
Q506 8-729-051-93 TRANSISTOR 2SB1647 (DE945)
Q506 8-749-010-26 IC MP1620-OPY-M (DE845)
Q507 8-729-051-92 TRANSISTOR 2SD2560 (DE945)
Q507 8-749-010-25 IC MN2488-OPY-M (DE845)
Q556 8-729-051-93 TRANSISTOR 2SB1647 (DE945)
Q556 8-749-010-26 IC MP1620-OPY-M (DE845)
Q557 8-729-051-92 TRANSISTOR 2SD2560 (DE945)
Q557 8-749-010-25 IC MN2488-OPY-M (DE845)
Q606 8-729-051-93 TRANSISTOR 2SB1647 (DE945)
Q606 8-749-010-26 IC MP1620-OPY-M (DE845)
Q607 8-729-051-92 TRANSISTOR 2SD2560 (DE945)
Q607 8-749-010-25 IC MN2488-OPY-M (DE845)
Q706 8-729-051-93 TRANSISTOR 2SB1647 (DE945)
Q706 8-749-010-26 IC MP1620-OPY-M (DE845)
Q707 8-729-051-92 TRANSISTOR 2SD2560 (DE945)
Q707 8-749-010-25 IC MN2488-OPY-M (DE845)
Q756 8-729-051-93 TRANSISTOR 2SB1647 (DE945)
Q756 8-749-010-26 IC MP1620-OPY-M (DE845)
Q757 8-729-051-92 TRANSISTOR 2SD2560 (DE945)
Q757 8-749-010-25 IC MN2488-OPY-M (DE845)
TM301 1-693-407-23 TUNER (DE845: US, CND, E/DE945)
TM301 1-693-409-23 TUNER (MY, SP, AUS, CH)
