Sony STR-DH540 - Rear Panel

13
GB
A DIGITAL INPUT/OUTPUT section
B TUNER section
C SPEAKERS section (page 20)
D AUDIO INPUT/OUTPUT section
E VIDEO INPUT/OUTPUT section
(page 21, 25)
* You must connect the HDMI TV OUT or
MONITOR OUT jack to your TV to watch the
selected input image (page 21).

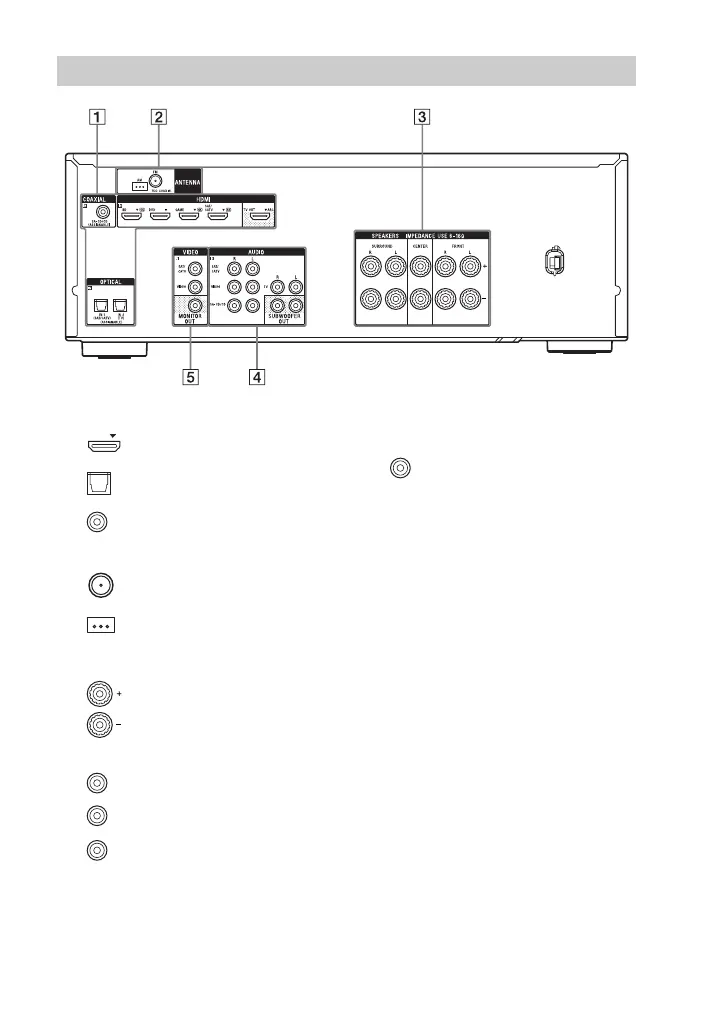

Rear panel
HDMI IN/OUT* jacks
(page 21, 24)
OPTICAL IN jacks (page 21,
25)
COAXIAL IN jack (page 26)
FM ANTENNA jack
(page 27)
AM ANTENNA terminals
(page 27)
AUDIO IN jacks
(page 21, 25, 26)
SUBWOOFER OUT
jacks (page 20)
Red (R)
White (L)
Black
VIDEO IN/OUT*
jacks
Yellow
