Connections
1: Installing the speakers
This receiver allows you to use up to a 5.2
channel system (5 speakers and 2
subwoofers).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.

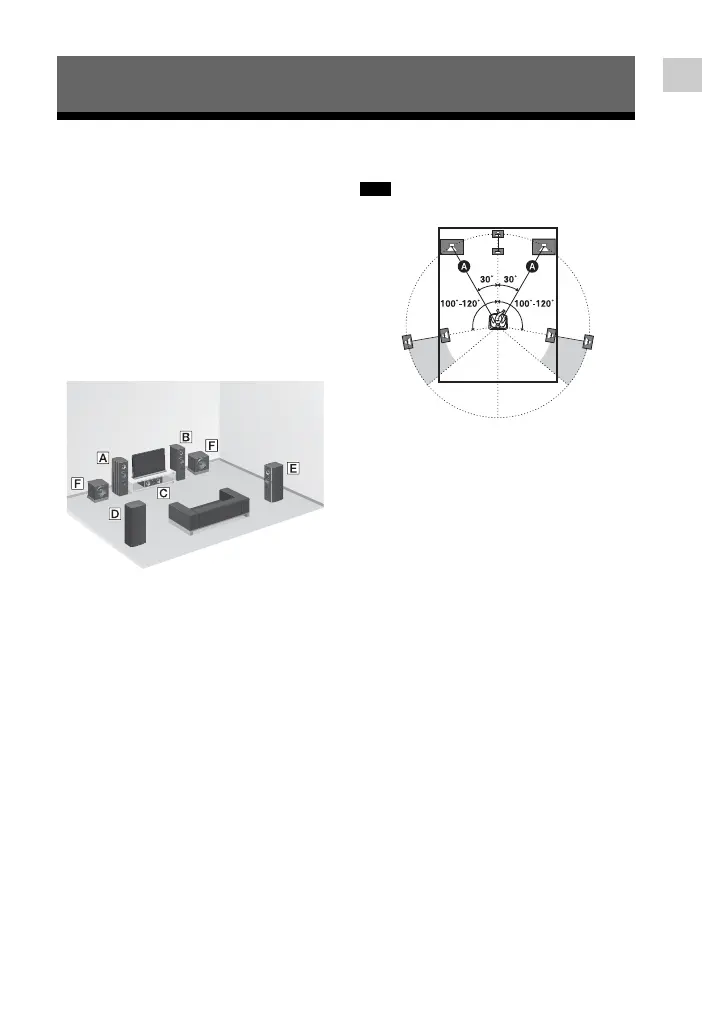

Example of speaker system
configuration
A Front speaker (Left)
B Front speaker (Right)
C Center speaker
D Surround speaker (Left)
E Surround speaker (Right)
F Subwoofer
• The angle A should be the same.
• Since the subwoofer does not emit highly
directional signals, you can place it wherever
you want.
Connections
Tips
