Sony STR-DN1070 - Connecting 5.1-Channel Speaker System with Front B Speaker

Monaural audio cable (not supplied)
Speaker cable (not supplied)
After you have made the bi-amplifier connection, set [Surround Back Speaker Assign] to [Bi-
Amp] in the [Speaker Settings] menu.
Note
After you have installed and connected your speakers, be sure to select the speaker pattern you
want using [Speaker Pattern] in the [Speaker Settings] menu.
You can only set [Surround Back Speaker Assign] if the speaker pattern is set to a setting that does
not have surround back and front high speakers.
[23] Preparation 2. Connecting speakers
Connecting 5.1-channel speaker system with front B
speaker connection
If you are not using surround back speakers or front high speakers, you can connect additional
front B speakers to the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B
terminals.

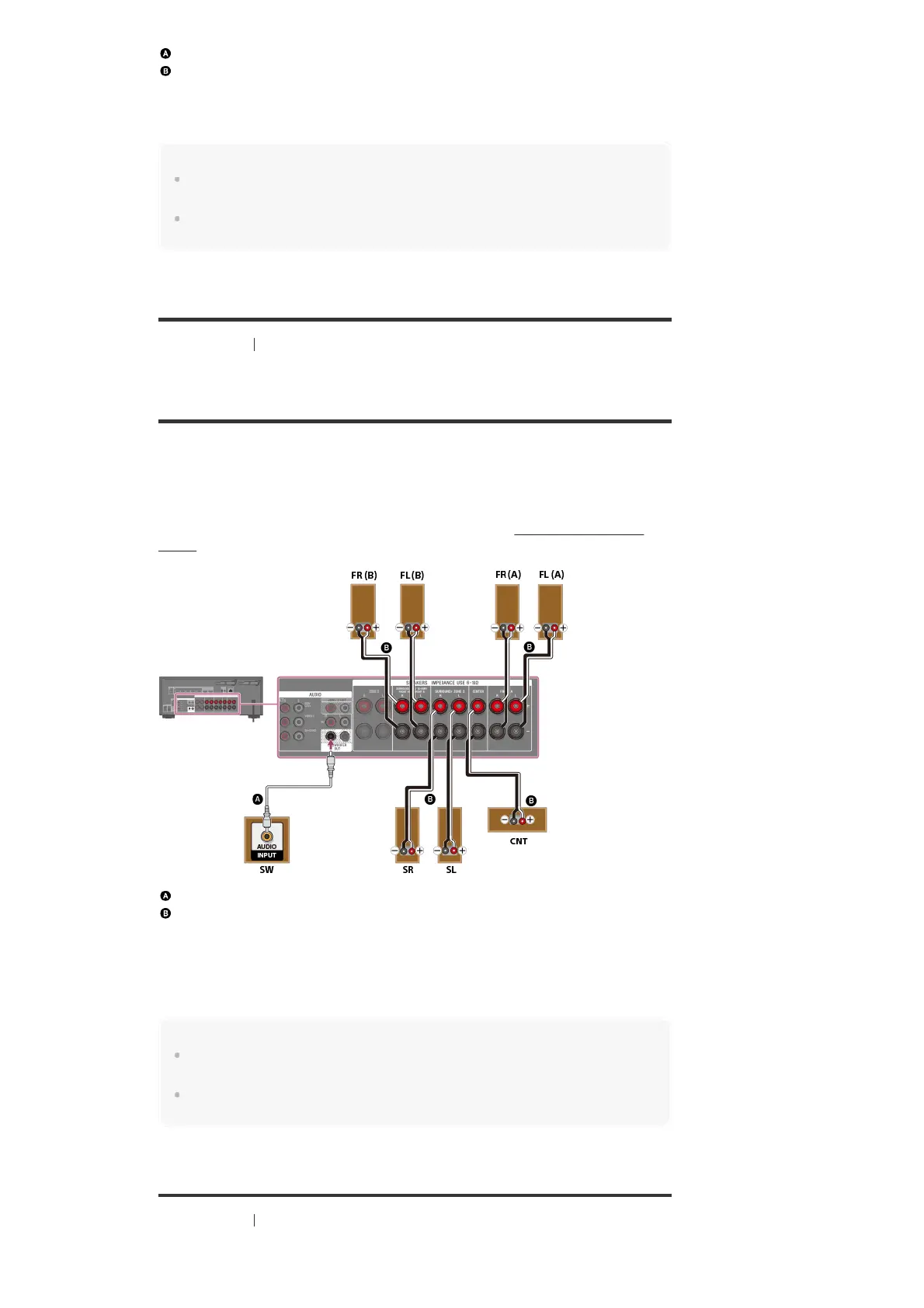

Connect each speaker as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the receiver, see “How to connect speaker
cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
After you have made the front B speaker connection, set [Surround Back Speaker Assign] to
[Front B] in the [Speaker Settings] menu.
You can select the front speaker system you want to use by pressing SPEAKERS on the
receiver.
Note
After you have installed and connected your speakers, be sure to select the speaker pattern you
want using [Speaker Pattern] in the [Speaker Settings] menu.
You can only set [Surround Back Speaker Assign] if the speaker pattern is set to a setting that does
not have surround back and front high speakers.
[24] Preparation 3. Connecting a TV
Connecting a TV
