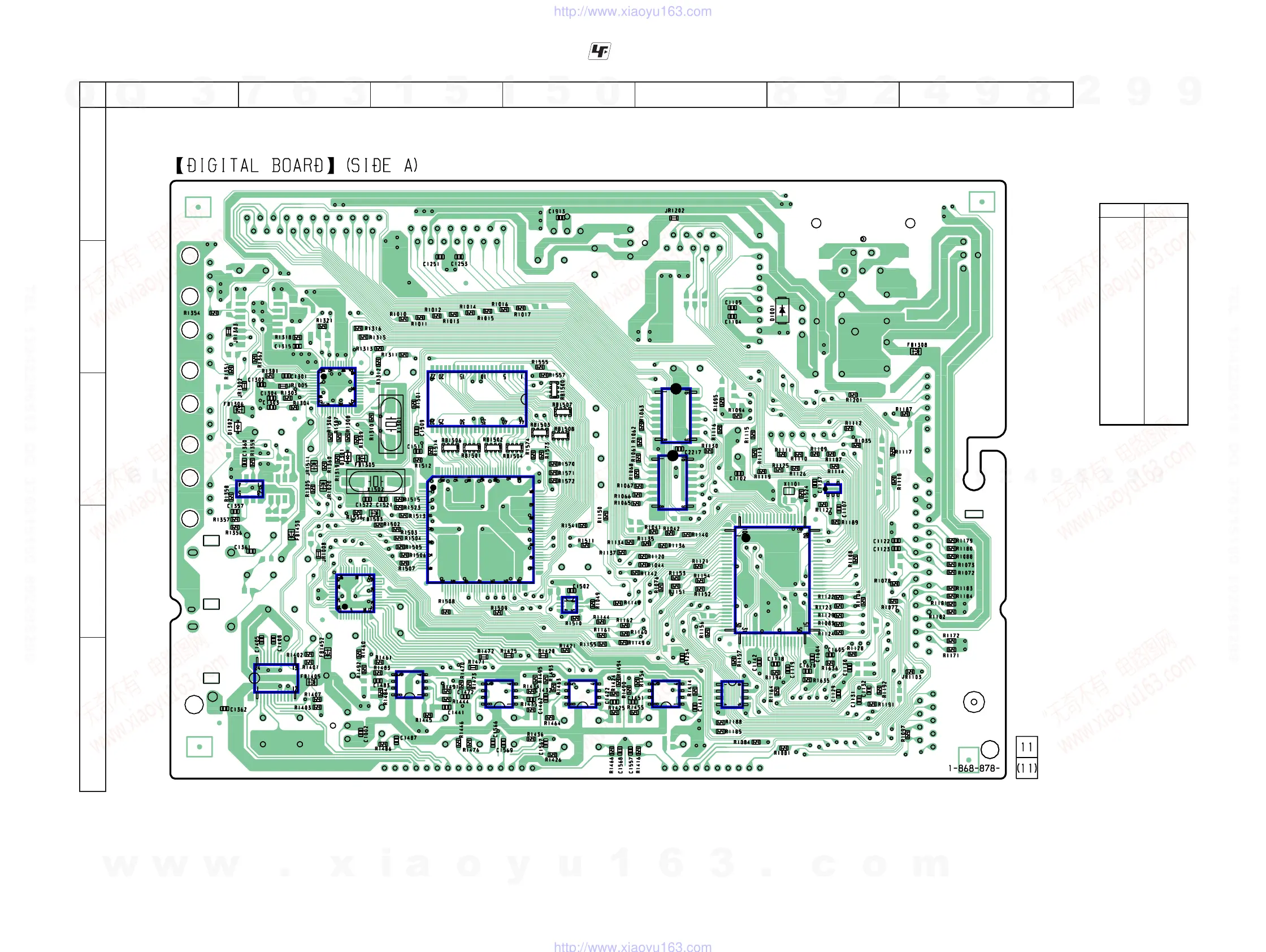

3-3. PRINTED WIRING BOARD – DIGITAL BOARD (SIDE A) –
:Uses unleaded solder.
• See page 15 for Circuit Boards Location.
IC1301
IC1303
IC1452
IC1501
IC1502
IC1602
IC1601
IC1503
IC1101
IC1131
IC1406
IC1405
IC1404
IC1403
IC1401
IC1111
13
54
12
A
B
C
D
E
34567
• Semiconductor
Location
Ref. No. Location
D1001 B-6
D1301 C-2
D1302 C-1
D1501 D-6
D1502 D-6
IC1101 D-5
IC1111 C-6
IC1131 E-5
IC1301 B-2
IC1303 C-2
IC1401 E-2
IC1403 E-3
IC1404 E-3
IC1405 E-4
IC1406 E-5
IC1452 D-2
IC1501 D-3
IC1502 C-3
IC1503 D-4
