STR-K980
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-01 CUSHION
52 3-077-331-21 +BV3 (3-CR)
53 3-701-748-00 CLAMP
54 4-249-675-01 +BV SUMITITE S 4X6 ROUND
55 3-905-609-01 SCREW (TRANSISTOR)
* 56 3-703-244-00 BUSHING (2104), CORD
0 57 1-829-627-11 POWER-SUPPLY CORD
58 A-1188-347-A MAIN BOARD, COMPLETE
59 1-828-993-11 WIRE (FLAT TYPE) (17 CORE)
60 1-828-963-11 WIRE (FLAT TYPE) (11 CORE)
61 A-1188-350-A DIGITAL BOARD, COMPLETE
0 F901 1-532-350-00 FUSE (T4AL/250V)
Q503 6-702-390-01 IC MN2488-OPY-MK

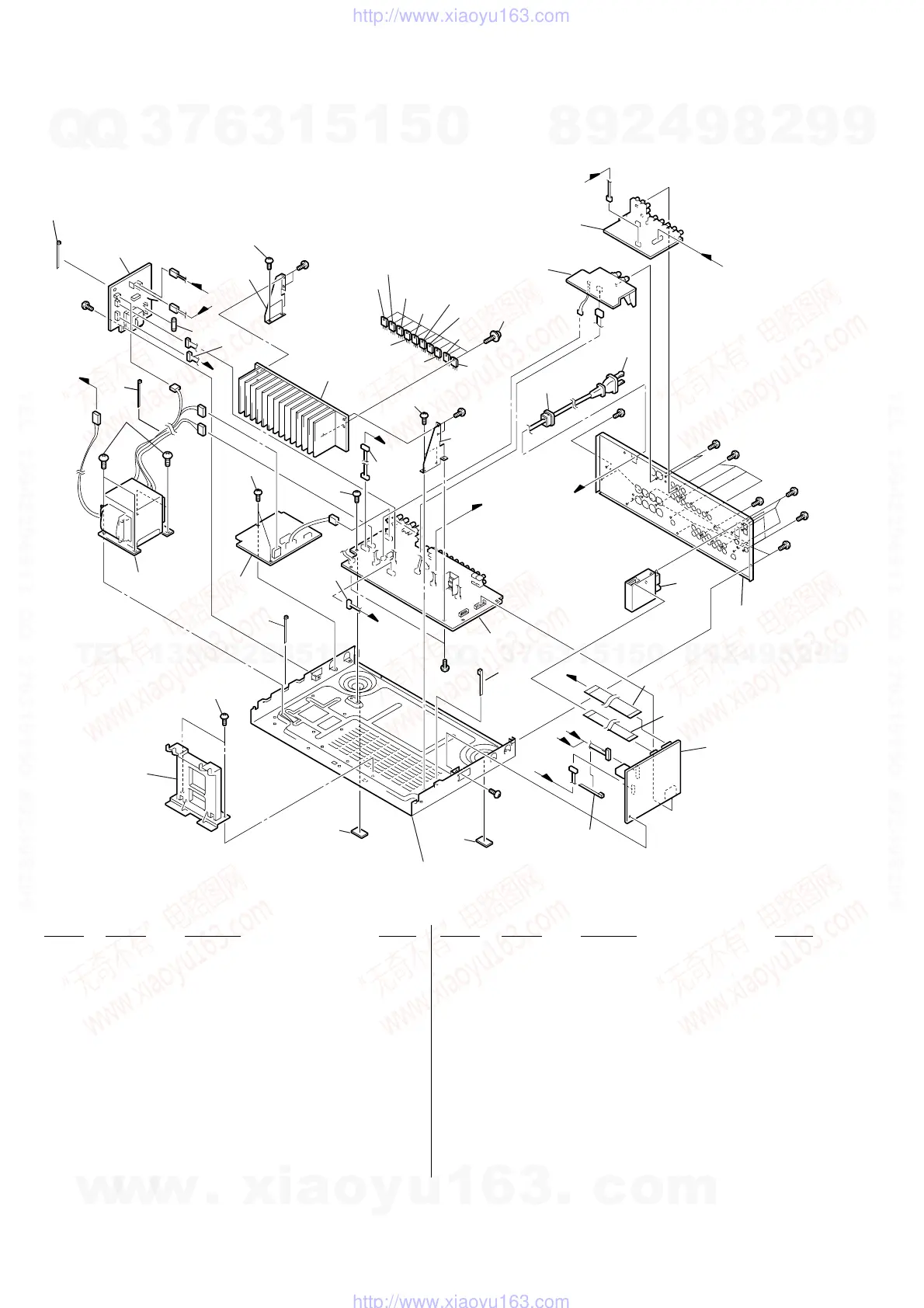

4-2. CHASSIS SECTION
T901
54
Q604
Q603
Q754
Q654
Q653
Q703
Q504
Q503
Q704
55
Q753
52
53
53
53
53
53
#1
#1
52
#1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
52
#1
61
60
59
not supplied
58
52
TN1
#1
#1
#1
#1
#1
#1
#1
#1
56
57
51
51
52
F901
a
a
c
b
b
c
d
e
d
e
f
f
g
g
Q504 6-702-391-01 IC MP1620-OPY-MK
Q533 6-702-390-01 IC MN2488-OPY-MK
Q534 6-702-391-01 IC MP1620-OPY-MK
Q653 6-702-390-01 IC MN2488-OPY-MK
Q654 6-702-391-01 IC MP1620-OPY-MK
Q703 6-702-390-01 IC MN2488-OPY-MK
Q704 6-702-391-01 IC MP1620-OPY-MK
Q753 6-702-390-01 IC MN2488-OPY-MK
Q754 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-523-11 POWER TRANSFORMER
TN1 1-693-675-11 TUNER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
