HTC-NX1

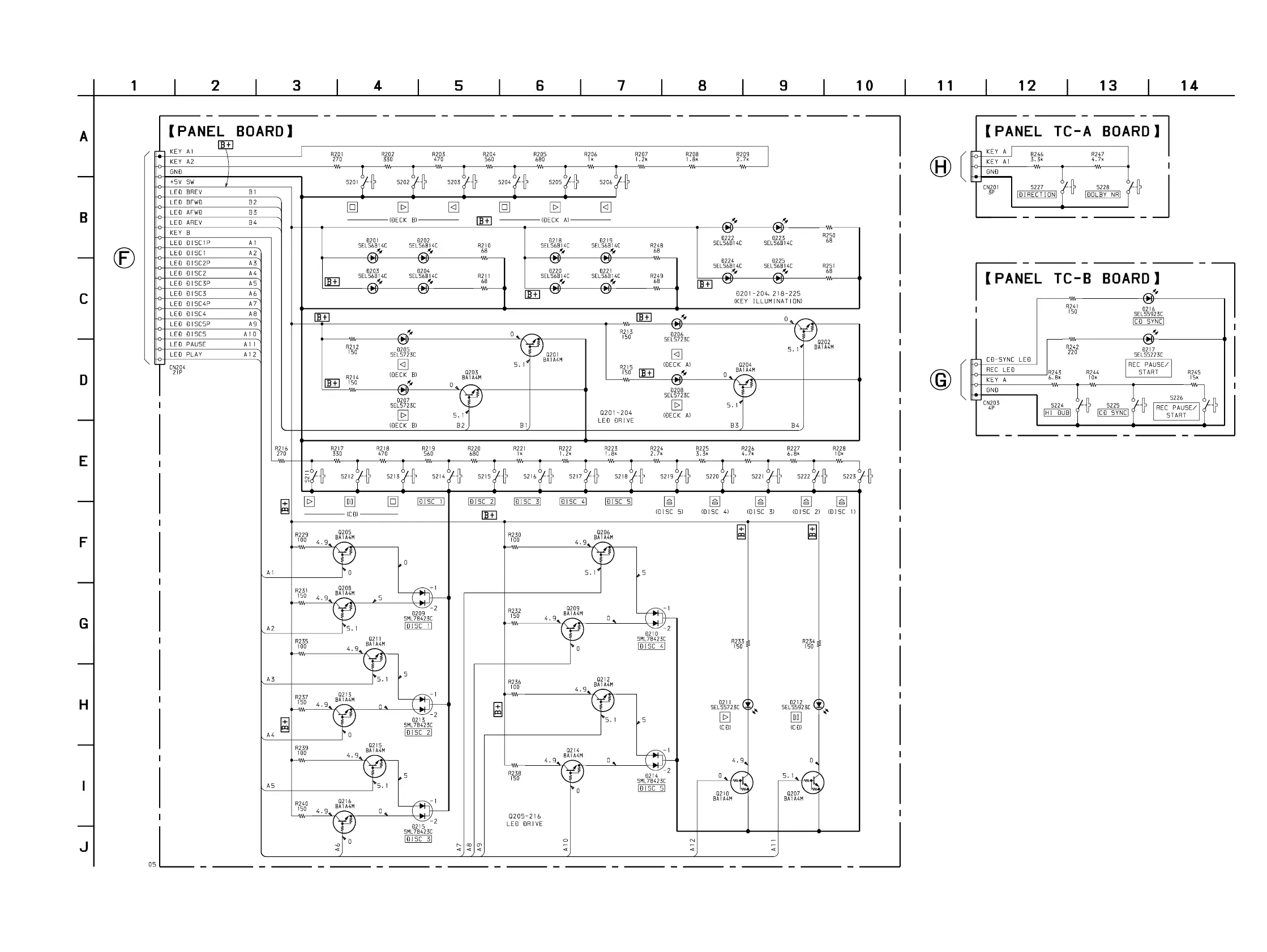

7-14. SCHEMATIC DIAGRAM – PANEL Section –
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : CD PLAY
(Page 29)
(Page 29)
(Page 29)
