Sony STR-NX3 Service Manual

11

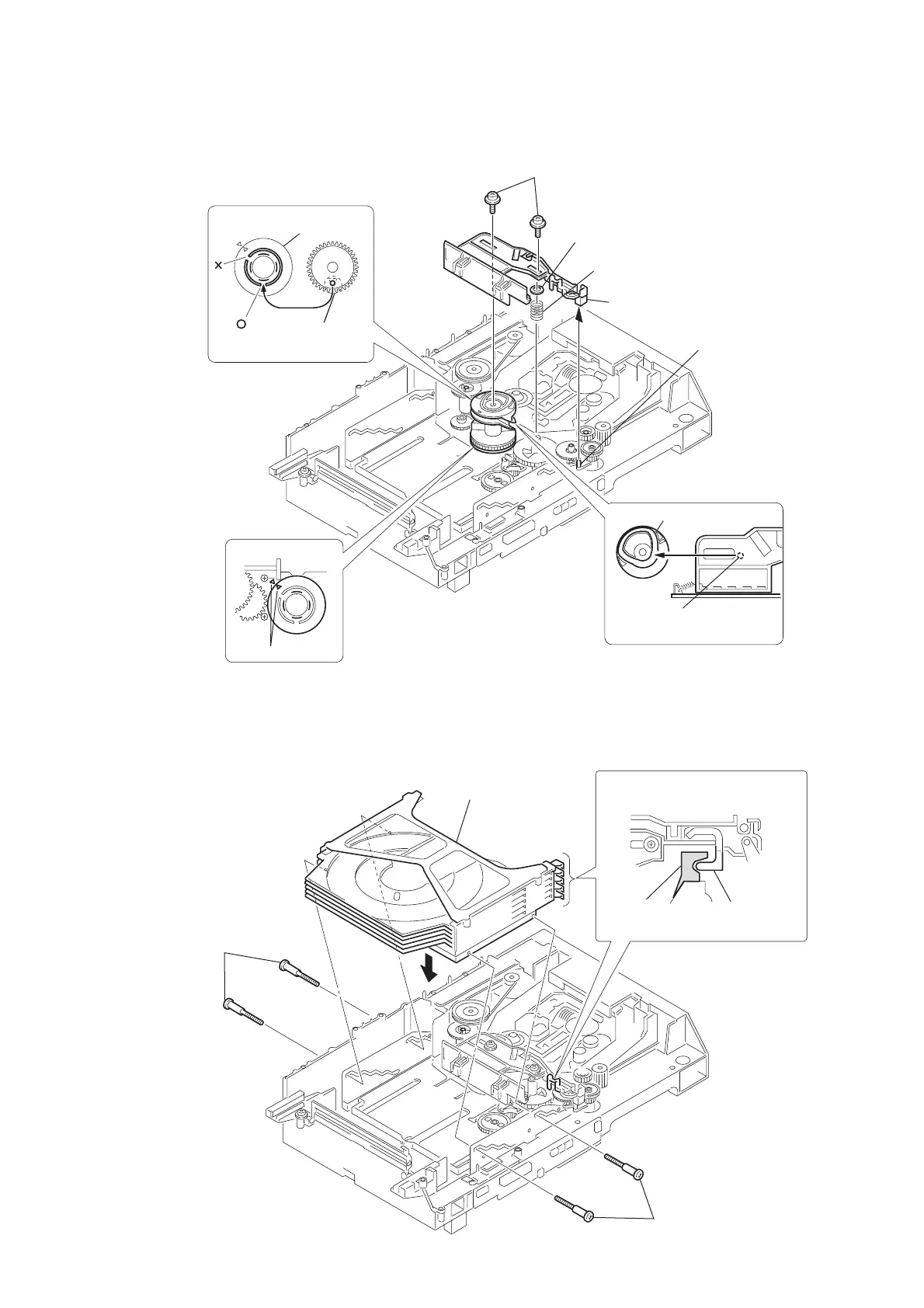

SLIDER (SELECTION) INSTALLATION
STOCKER SECTION INSTALLATION
portion A
2 gear (chuking)
6 two screws
(PTPWH M2.6)
5 washer
3 convex portion of
slider (selection)
4 compression spring
7 Insert the slider (selection)
into the portion A.
1 rotary encoder
rotary encoder
Align with the slot of
rotary encoder.
align marking
gear (chuking)
Insert a convex portion into
a groove of gear (chuking).
2 portion A of tray (sub)
1 stocker section
3 two step screws
3 two step screws
Hook the portion A of tray (sub)
to the slider (selection).
potion A
of tray (sub)
sticking of
slider (selection)
