8

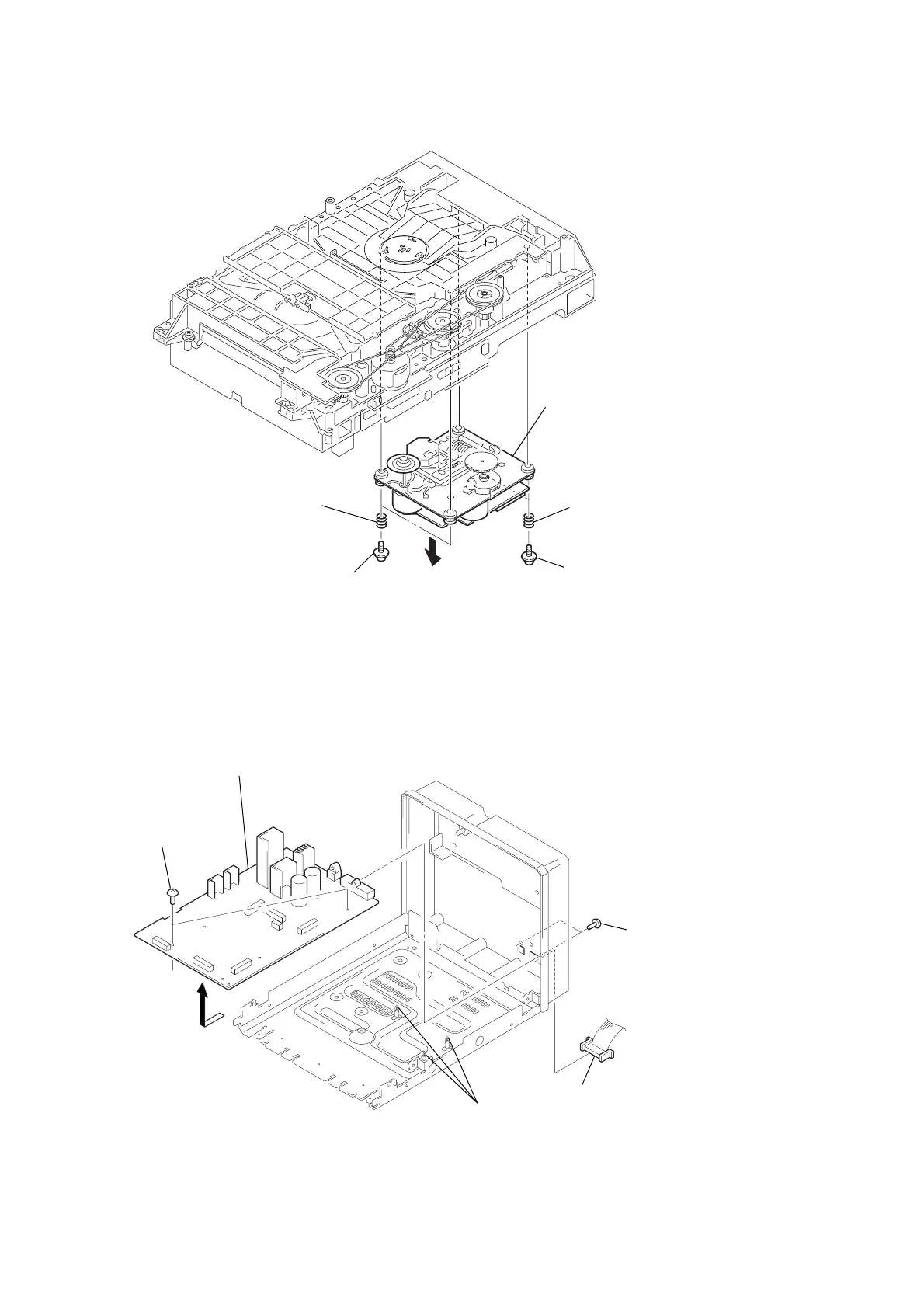

CD BASE UNIT (BU-K1BD33)
MAIN BOARD
4
CD base unit
(BU-K1BD33)
2
compression spring
(silver)
1
two screws
(PTPWH M2.6)
1
two screws
(PTPWH M2.6)
3
compression spring
(black)
2
two screws
(BVTP3
×
10)
2
two screws
(BVTP3
×
8)
4
Remove the MAIN board
in the arrow
A
direction.
1
connection cord
(CN101)
A
3
three PC board
holders
