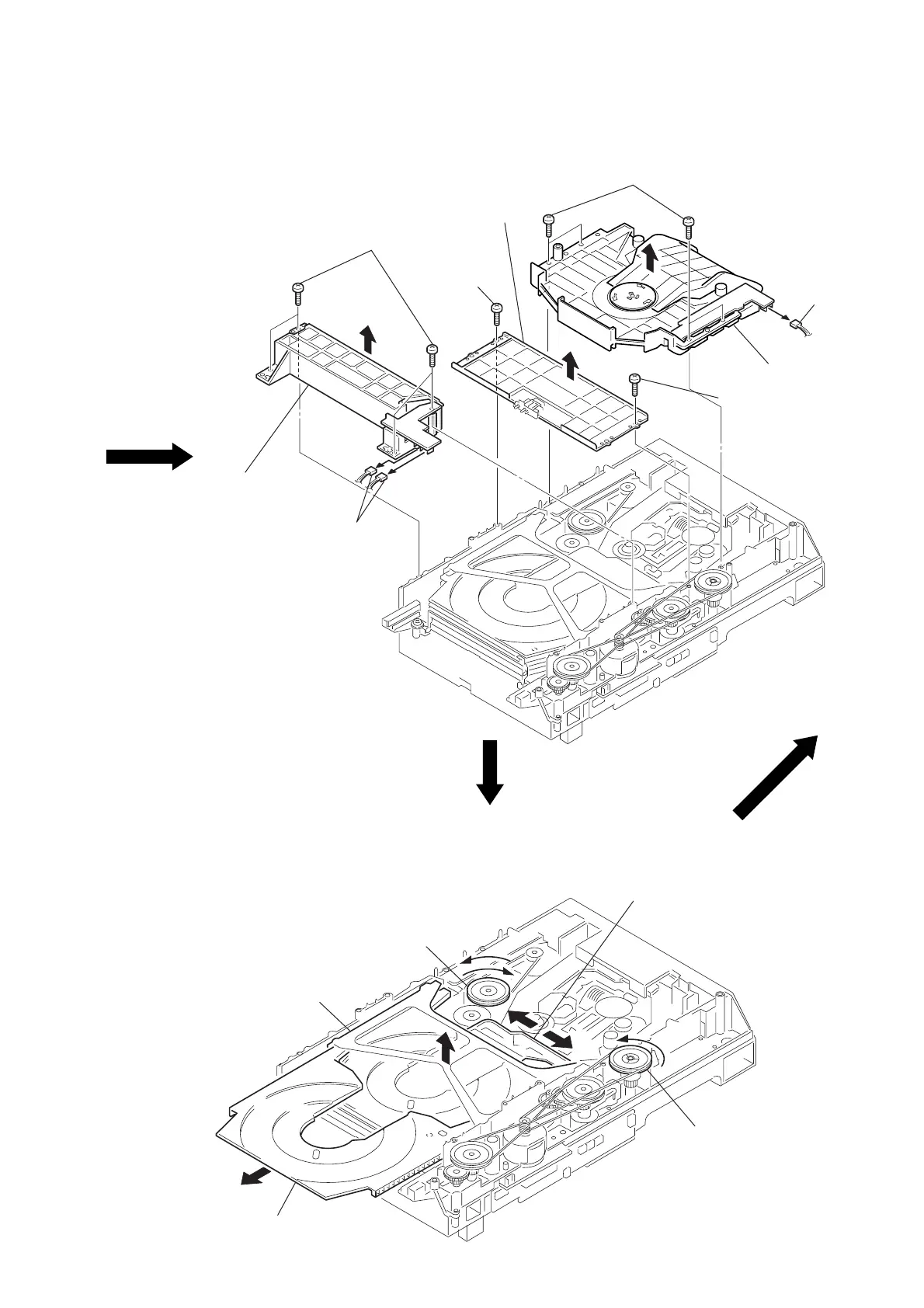

9
FITTING BASE (GUIDE) ASS’Y, BRACKET (CHASSIS) AND
MAGNET ASS’Y
TRAY (SUB)
7
four screws
(BVTP M2.6)
2
four screws
(BVTP M2.6)
5
bracket
(chassis)
4
screw
(BVTP M2.6)
4
screw
(BVTP M2.6)
6
connector
(CN710)
1
two connectors
(CN709, 715)
3
fitting base
(guide) ass’y
8
magnet ass’y
from CD mechanism
deck section
(CDM53D-K1BD3)
(page 7)
pulley (LD)
stocker
section
tray (sub)
pulley (mode)
slider (selection)
1
Rotating the pulley (LD), shift the slider (selection) in the arrow
A
direction.
2
Rotating the pulley (mode) in the arrow direction, adjust the tray (sub) to be removed.
3
Rotating the pulley (LD), shift the slider (selection) in the arrow
B
direction.
4
Rotating the pulley (mode) in the arrow direction, remove the tray (sub) to be removed.
A
B
To Next Page
