Note 1: In cleaning the lens, do not apply an excessive force.
As the optical pick-up is vulnerable, application of
excessive force could damage the lens holder.
Note 2: In cleaning, do not use a cleaner other than exclusive clean-
ing liquid (KK-91 or isopropyl alcohol).
Note 3: Wipe the objective lens spirally from center toward outside.
(See Figure A)

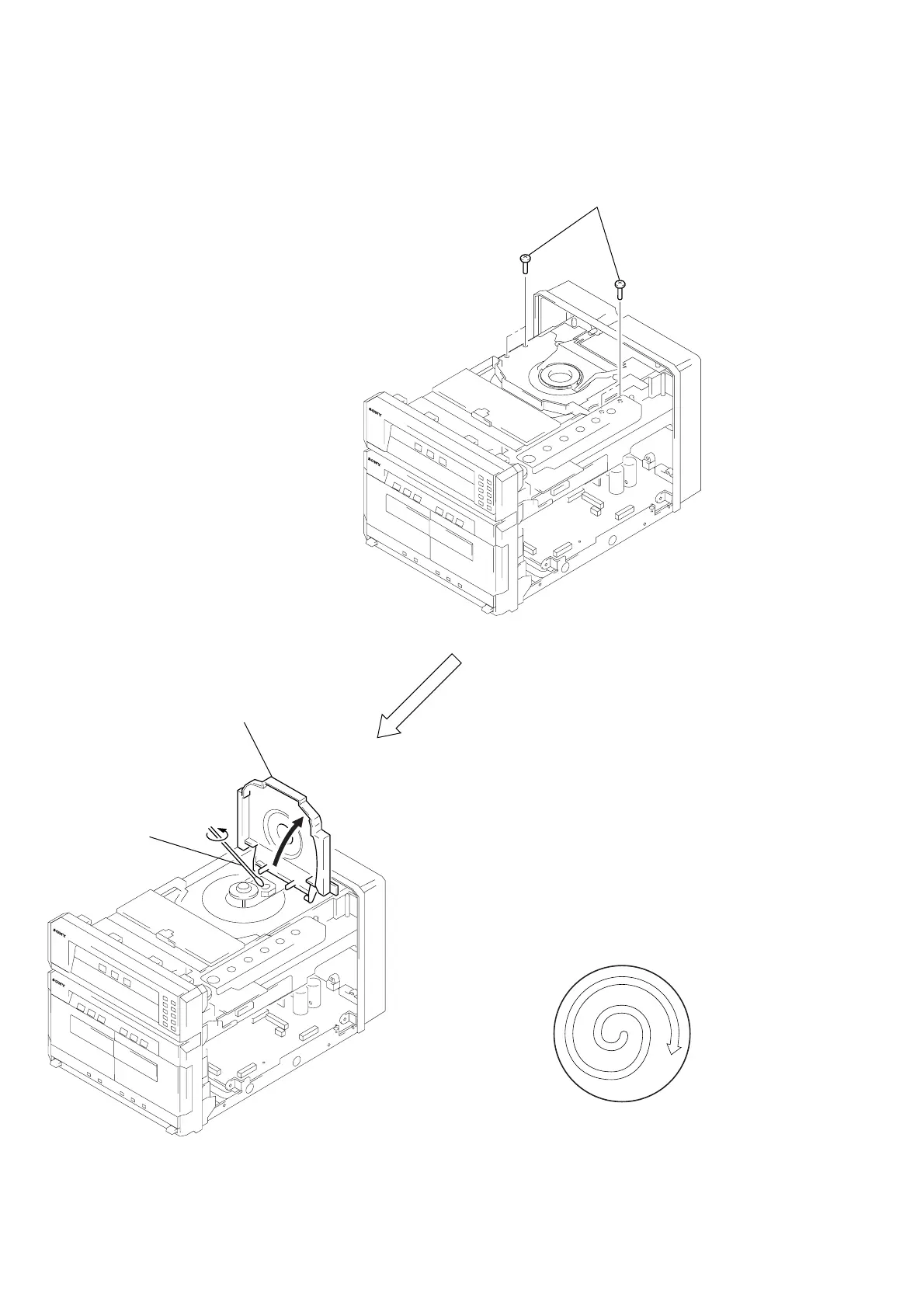

OPTICAL PICK-UP CLEANING
1
Remove the case. (Refer to disassembly page 8)
3
Open the magnet
ass’y.
4
Cleaning the
optical pick-up.
2
four screws
(BVTP M2.6)
(Figure A)
To Next Page
