6

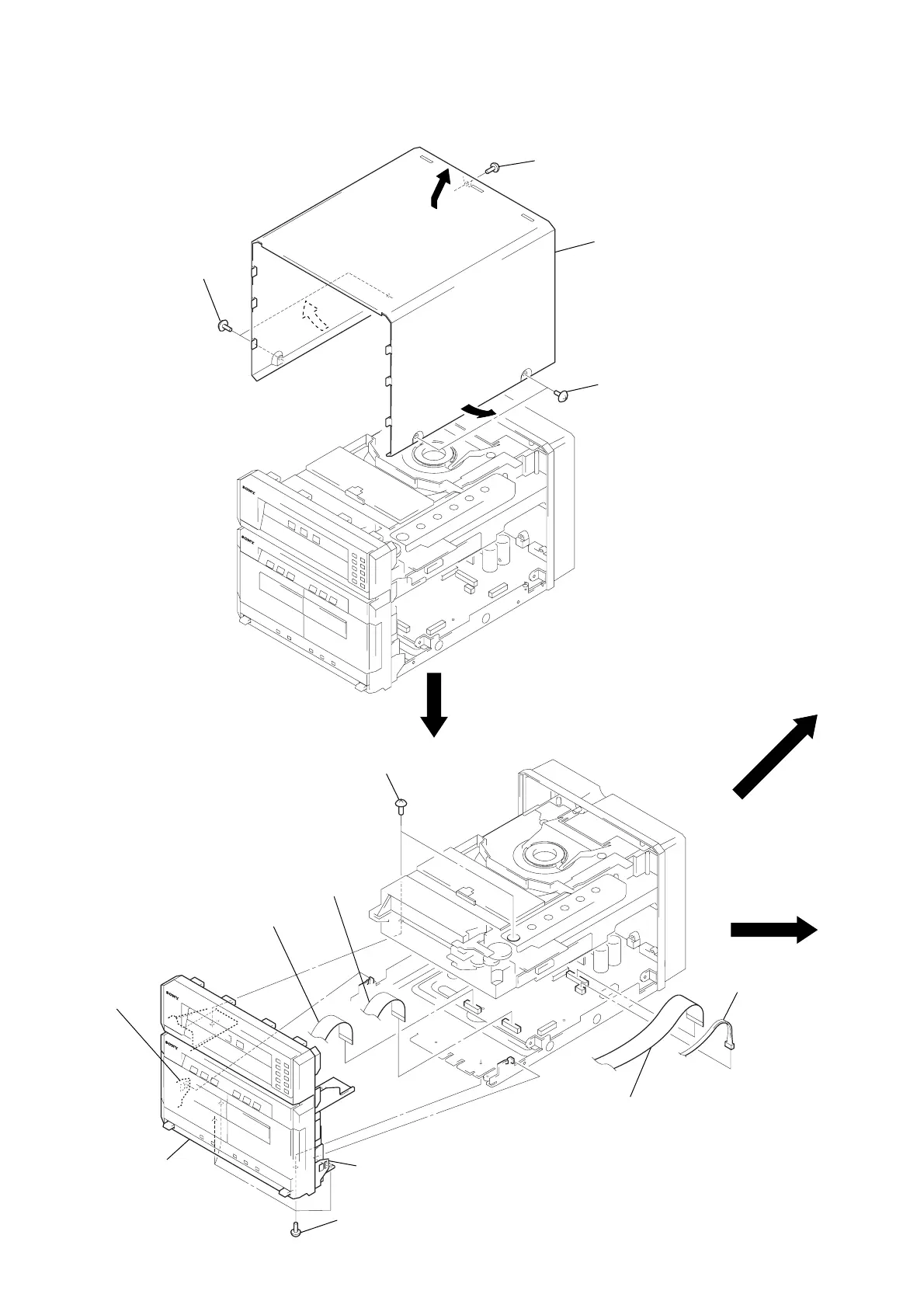

CASE
FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1
screw
(BVTP3
×
10)
2
two screws
(case 3 TP2)
2
two screws
(case 3 TP2)
3
Remove the case
in the arrow
A
direction.
A
3
two screws
(BVTP3
×
10)
3
four screws
(BVTP3
×
5)
1
flat cable (17 core)
(16 cm)(CNS104)
1
flat cable (15 core)
(CNS101)
1
flat cable (21 core)
(CN102)
2
connecto
r
(CN105)
4
claw
4
claw
5
front panel
section
