Sony STR-NX3 - Printed Wiring Boards - PANEL Section

2020
STR-NX1/NX3

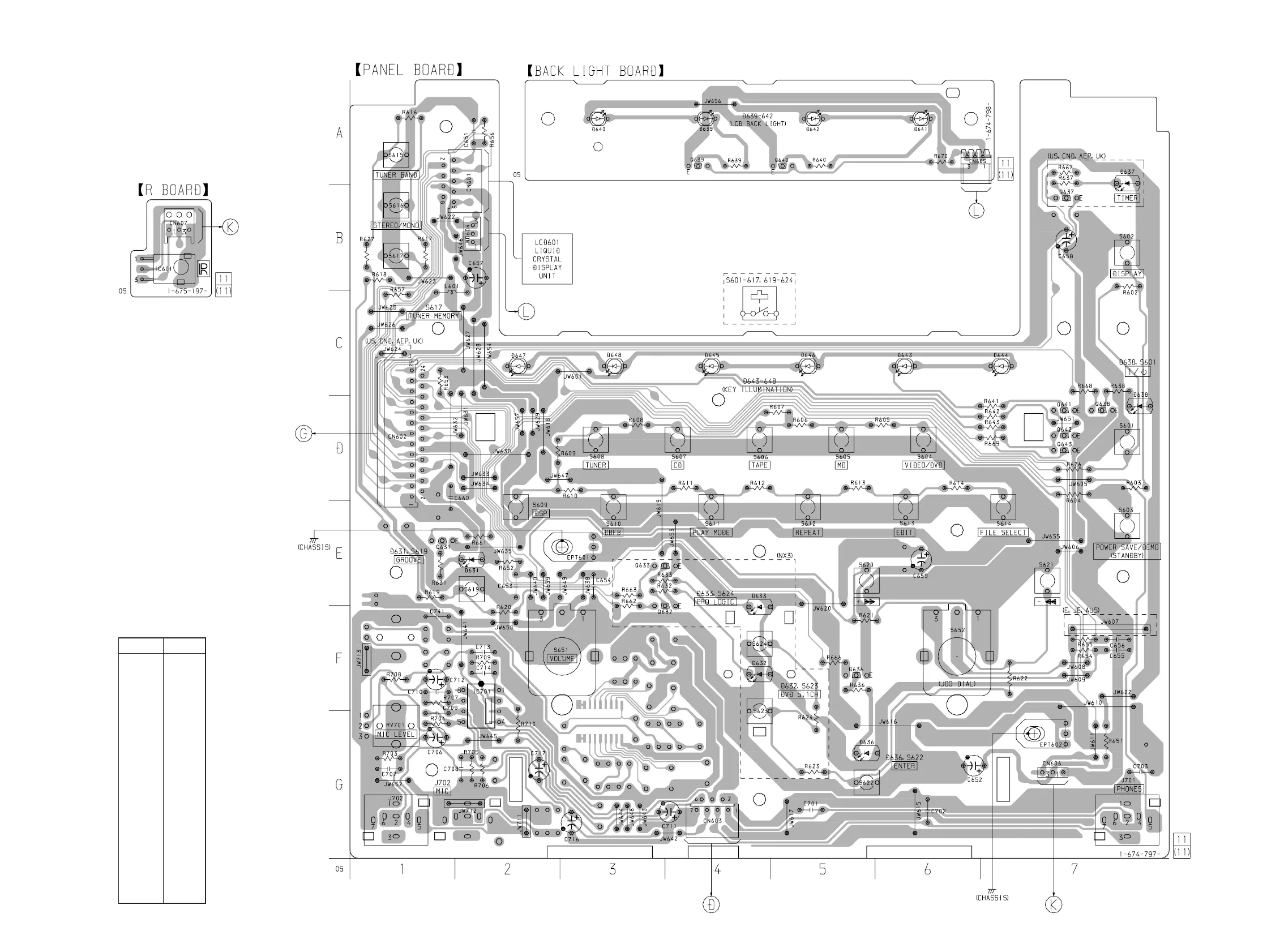

5-10. PRINTED WIRING BOARDS – PANEL Section – • See page 11 for Circuit Boards Location.
D631 E-2
D632 F-4
D633 F-4
D636 G-5
D637 A-7
D638 D-7
D643 C-6
D644 C-7
D645 C-4
D646 C-5
D647 C-2
D648 C-3
IC701 F-2
Q631 E-1
Q632 F-3
Q633 E-3
Q636 F-5
Q637 B-7
Q638 D-7
Q641 D-7
Q642 D-7
Q643 D-7
• Semiconductor
Location
Ref. No. Location
(Page 15)
(Page 15)
