Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451
452
452
453
454
455
455
456
456
457
458
458
459
464
464
464
464
459
460
460
461
462
463
M1
#6
#5
#4
465
* 451 X-3374-214-4 CHASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3376-497-3 FLYWHEEL (FWD) ASSY
456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR2)
459 A-2004-629-A MECHANICAL BLOCK ASSY
460 3-016-566-01 SLIDER, REVERSE
* 461 A-2007-732-A LEAF SW BOARD, COMPLETE
462 3-016-575-11 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
464 3-030-823-01 SCREW (+BVTT) (2X3.5)
465 3-027-453-01 SPRING (GROUND), TENSION
M1 A-2004-628-A MOTOR ASSY, CAPSTAN

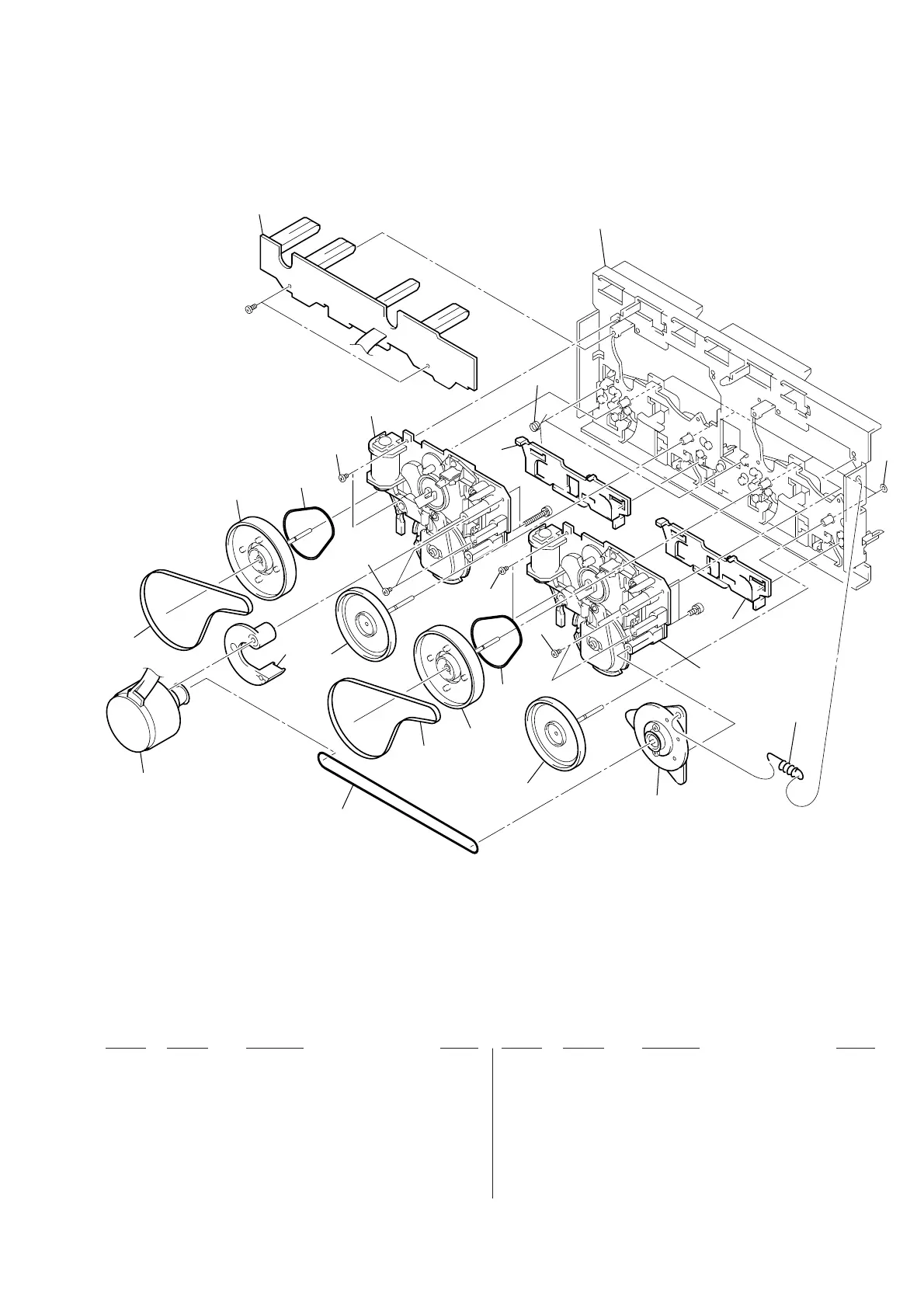

(7) TAPE MECHANISM DECK SECTION-2
(TCM-230AWR2)
