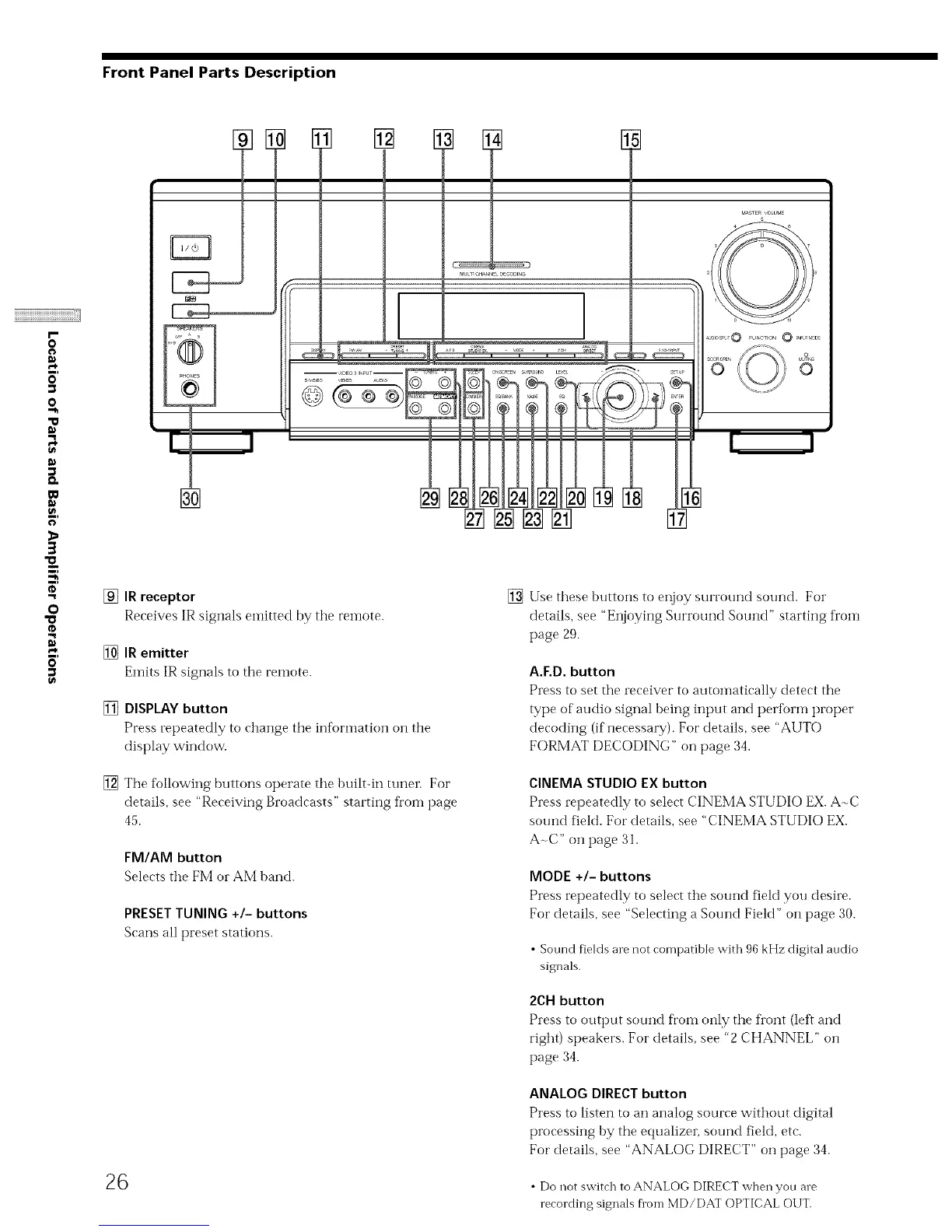

Front Panel Parts Description
r-
o
e_
o
"o
"R
p_
D.
¢0
3
$,
"R
o
"o
O
"R
e_
_HONES
@
M_STER_OLUME
__':_ ....II10 ii(/ ))/ 0
[]
[] IR receptor
Receives IR signals emitted by the [ei-llote.
[] IR emitter
Emits IR signals to the remote.
[] DISPLAY button
Press repeatedly to change the information on the
display window.
[] The following buttons operate the built-in tuner. For
details, see "Receiving Broadcasts" starting fl'om page
45.
FM/AM button
Selects the FM or AM band.
PRESETTUNING +/- buttons
Scans all preset stations.
26
[]
Use these buttons to enjoy surround sound. For
details, see "Enjoying Surround Sound" starting from
page 29.
A.ED. button
Press to set the receiver to automatically detect the
type of audio signal being input and perform proper
decoding (if necessary). For details, see "AUTO
FORMAT DECODING" on page 34.
CINEMA STUDIO EX button
Press repeatedly to select CINEMA STUDIO EX. A-C
sound field. For details, see "CINEMA STUDIO EX.
A_C" on page 31.
MODE +/- buttons
Press repeatedly to select the sound field you desire.
For details, see "Selecting a Sound Field" on page 30.
• Sound fields are not compatible with 96 kHz digital andio
signals.
2CH button
Press to output sound fl'om only the front (left and
right) speakers. For details, see "2 CHANNEL" on
page 34.
ANALOG DIRECT button
Press to listen to an analog source without digital
processing by the equalizer, sound field, etc.
For details, see "ANALOG DIRECT" on page 34.
•Do not switch to ANALOG DIRECT when yon me
recording signals flora MD/DAT OPTICAL OUT.
To Next Page
