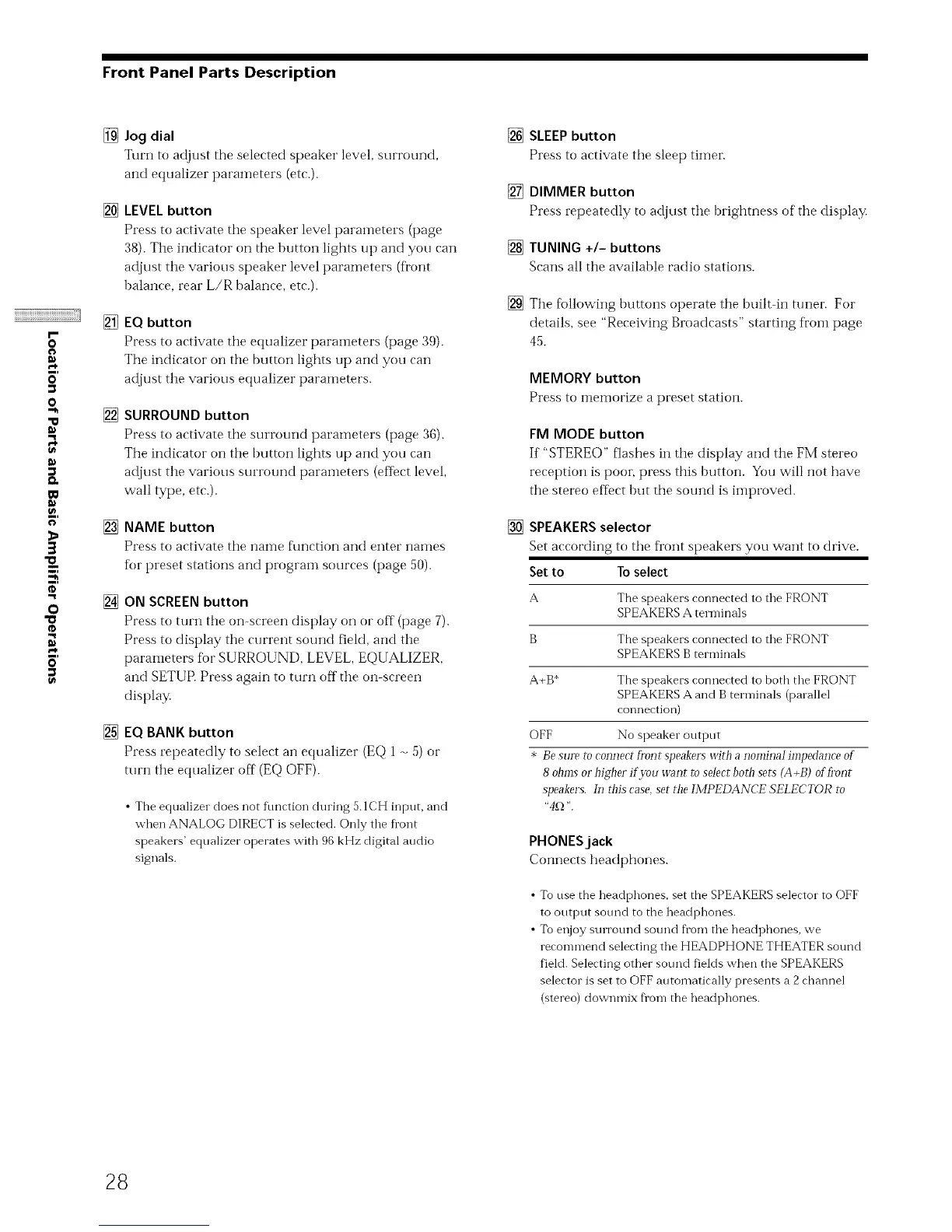

Front Panel Parts Description
p-
o
e_
o
"*h
"R
e_
:o
_m,
1>
3
"R
o
"o
"R
e_
[] Jog dial
Turn to adjust the selected speaker level, surround,
and equalizer parameters (etc.).
[] LEVEL button
Press to activate the speaker level parameters (page
38). The indicator on the button lights up and you can
adjust the various speaker level parameters (fl'ont
balance, rear L/R balance, etc.).
[] EQ button
Press to activate tire equalizer parameters (page 39).
The indicator on the button lights up and you can
adjust tire various equalizer parameters.
[] SURROUND button
Press to activate tire surround parameters (page 36).
The indicator on tire button lights up and you can
adjust tire various surround parameters (efIect level,
wall type, etc.).
[] NAME button
Press to activate tire name function and enter names
for preset stations and program sources (page 50).
[] ON SCREEN button
Press to turn tire on-screen display on or off (page 7).
Press to display tire current sound field, and tire
parameters tbr SURR(.)UND, LEVEL, EQUALIZER,
and SETUR Press again to turn off tire on-screen
display.
[] EQ BANK button
Press repeatedly to select an equalizer (EQ 1 - 5) or
turn tire equalizer off (EQ OFF).
• The equalizer does not function during 5.1CH input, and
when ANALOG DIRECT is selected. Only the fl'ont
speakers' equalizer operates with 96 kHz digital audio
signals.
[]
[]
SLEEP button
Press to activate the sleep timer.
DIMMER button
Press repeatedly to adjust tire brightness of the display.
[] TUNING +/- buttons
Scans all tire available radio stations.
[]
[]
Tire fffllowing buttons operate tire built-in tuner. For
details, see "Receiving Broadcasts" starting fl'Oln page
45.
MEMORY button
Press to memorize a preset station.
FM MODE button
If "STERE(-)" flashes in tire display and tire FM stereo
reception is poor, press this button. You will not have
the stereo effect but the sound is improved.
SPEAKERS selector
Set according to tire front speakers you want to drive.
Set to To select
A The speakers connected to the FRONT
SPEAKERS A terminals
B The speakers connected to the FRONT
SPEAKERS B terminals
A+B* The speakers connected to both the FRONT
SPEAKERS A and B terminals (parallel
connection)
OFF No speaker output
* Be sure to connectO'ontspeakers with a nominalimpedance of
8 ohms or higher if?vu want to select both sets (,4+13) offi'ont
speakers. In this case, set the IMPEDANCE SELECTOR to
"4£_".
PHONESjack
Connects headphones.
• To use the headphones, set the SPEAKERS selector to OFF
to output sotmd to the headphones.
• To enjoy surround sound from the headphones, we
recommend selecting the HEADPHONE THEATER sound
field. Selecting other sotmd fields when the SPEAKERS
selector is set to OFF automatically presents a 2 channel
(stereo) downmix fi'om the headphones.
28
