STR-V5550/V7770

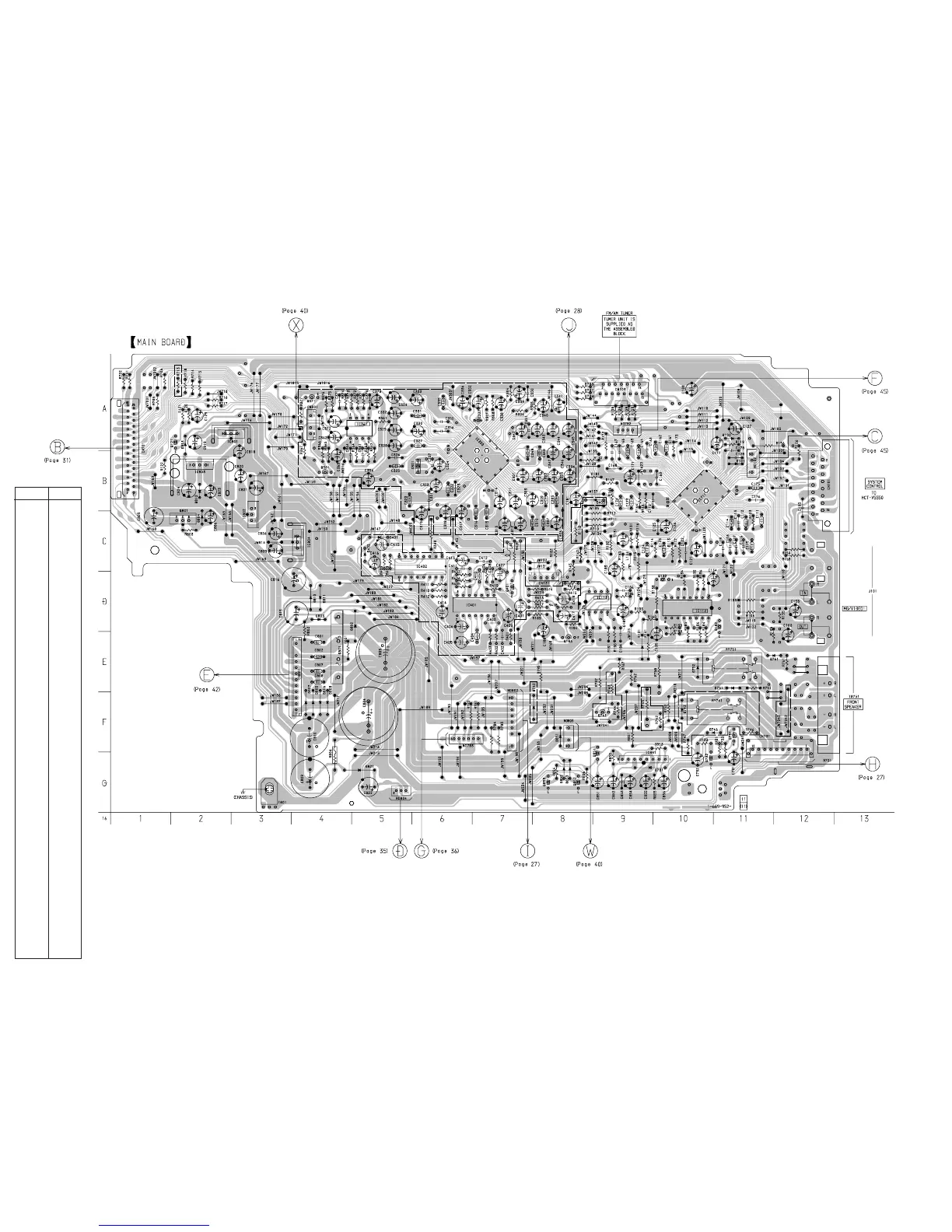

4-3. PRINTED WIRING BOARD — MAIN SECTION —
• Refer to page 10 for Circuit Boards Location.
— 17 — — 18 —
Ref. No. Location
D101 B-11
D102 B-11
D131 E-9
D401 D-5
D402 D-5
D403 C-9
D742 F-8
D743 F-10
D746 F-11
D751 F-11
D752 E-10
D761 E-12
D781 G-10
D801 E-4
D802 F-5
D803 E-4
D804 C-2
D805 F-4
D806 F-4
D807 F-4
D808 F-4
D810 E-4
D811 E-4
D812 C-2
D813 B-2
D851 F-8
D852 G-8
D853 G-8
IC111 C-10
IC112 E-10
IC113 E-9
IC300 A-7
IC361 A-5
IC401 E-7
IC402 D-6
IC801 B-2
IC802 C-3
IC803 B-2
IC804 D-4
IC851 G-9
Q121 B-2
Q132 D-10
Q182 E-11
Q183 E-8
Q361 B-4
Q371 A-4
Q401 D-7
Q731 G-11
Q732 G-10
Q741 F-9
Q801 C-2
Q851 G-9
Q852 H-8
Q853 H-8
• Semiconductor
Location
V7770
V7770
V5550
V5550
V7770
V7770
V7770
V7770
V5550
