When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
• Abbreviation
HK : Hong Kong
SP : Singapore
MY : Malaysia
CH : Chinese
TH : Thai
IA : Indonesia
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
SECTION 5
EXPLODED VIEWS
— 52 —
1 4-900-825-01 KNOB (JOG)
2 4-900-826-01 KNOB (VOLUME)
3 1-773-125-11 WIRE (FLAT TYPE) (19 CORE)
4 X-4950-248-1 SLIDING PANEL SUB ASSY (V5550)
4 X-4950-249-1 SLIDING PANEL SUB ASSY (V7770)
* 5 A-4414-709-A LOADING PANEL BOARD, COMPLETE
6 4-900-855-01 COVER
* 7 4-900-858-01 CASE
8 4-812-134-00 RIVET (DIA. 3.5), NYLON
* 9 4-900-852-01 HOLDER LEVEL
10 3-363-099-01 SCREW (CASE 3 TP2)
11 4-951-620-11 SCREW (2.6 × 10), +BVTP
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
A
A
10
10
10
10
7
#2
#2
#2
#2
#2
#2
#1
#1
Slide mechanism
Supplied with
S653
Supplied with
S652
Front panel
11
6
5
4
1
2
3
8
9
11
11
11
11
11

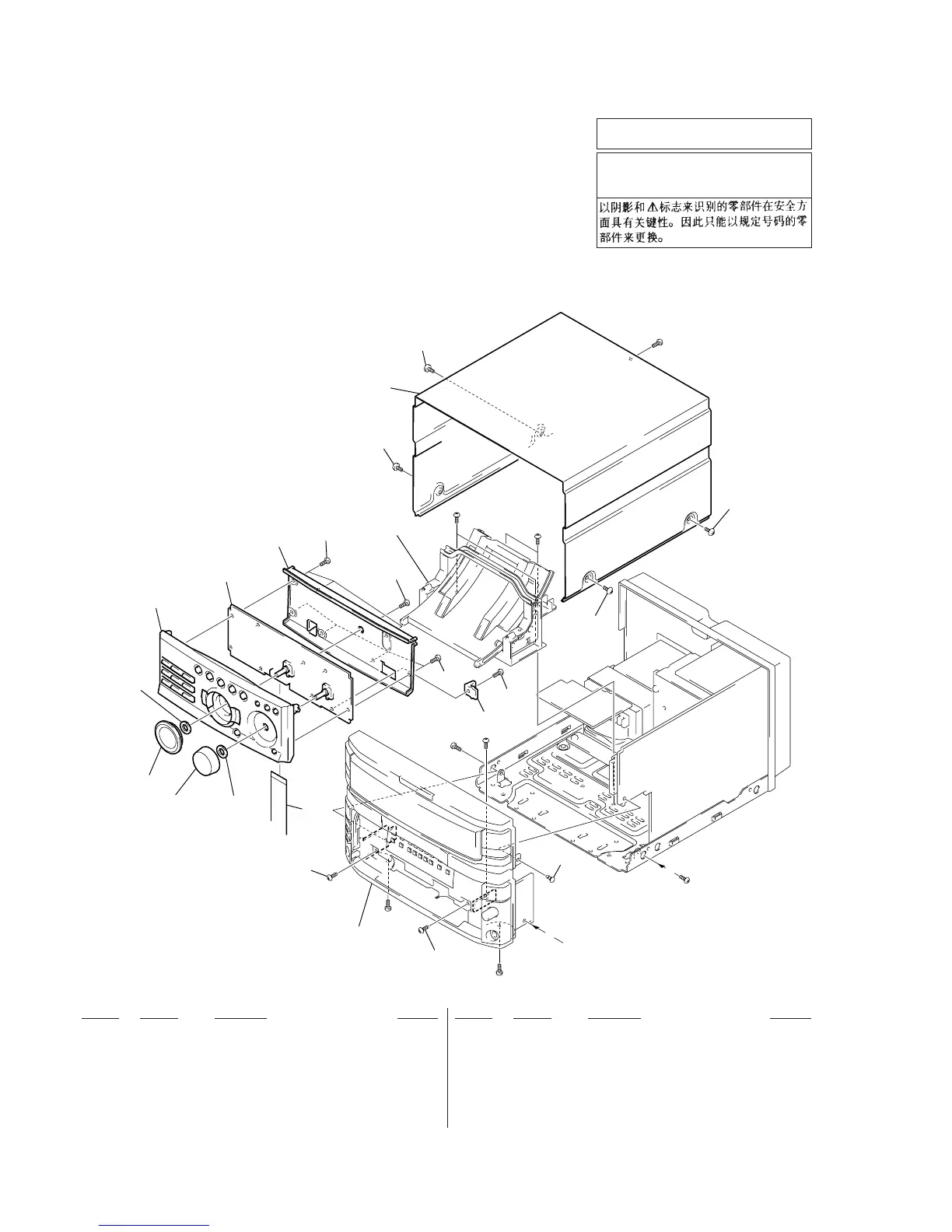

5-1. CASE AND SLIDING PANEL SECTION
To Next Page
