Sony STR-V7770 - Slide Mechanism Section

— 54 —
101 4-900-844-01 LEVEL SLIDER
102 4-951-620-01 SCREW (2.6X8), +BVTP
103 X-4950-394-1 HOLDER (L) ASSY
104 X-4950-395-1 HOLDER (R) ASSY
* 105 4-210-042-01 BRACKET (SENSOR)
106 4-900-846-01 GEAR (1)
107 4-900-862-01 SHAFT CENTER
108 4-900-864-01 BRACKET TOP
109 4-900-847-01 GEAR (2)
110 3-344-059-01 BELT (L)
* 111 1-669-965-11 MOTOR BOARD
112 4-212-966-01 SPRING LAVEL
113 4-212-965-01 STOPPER LAVEL
M891 A-4660-926-A MOTOR (CDM) ASSY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
102
102
106
111
109
110
113
106
102
112
107
102
104
102
102
103
105
101
108
#3
M891
not
supplied
not supplied
not supplied
not
supplied
not supplie
d

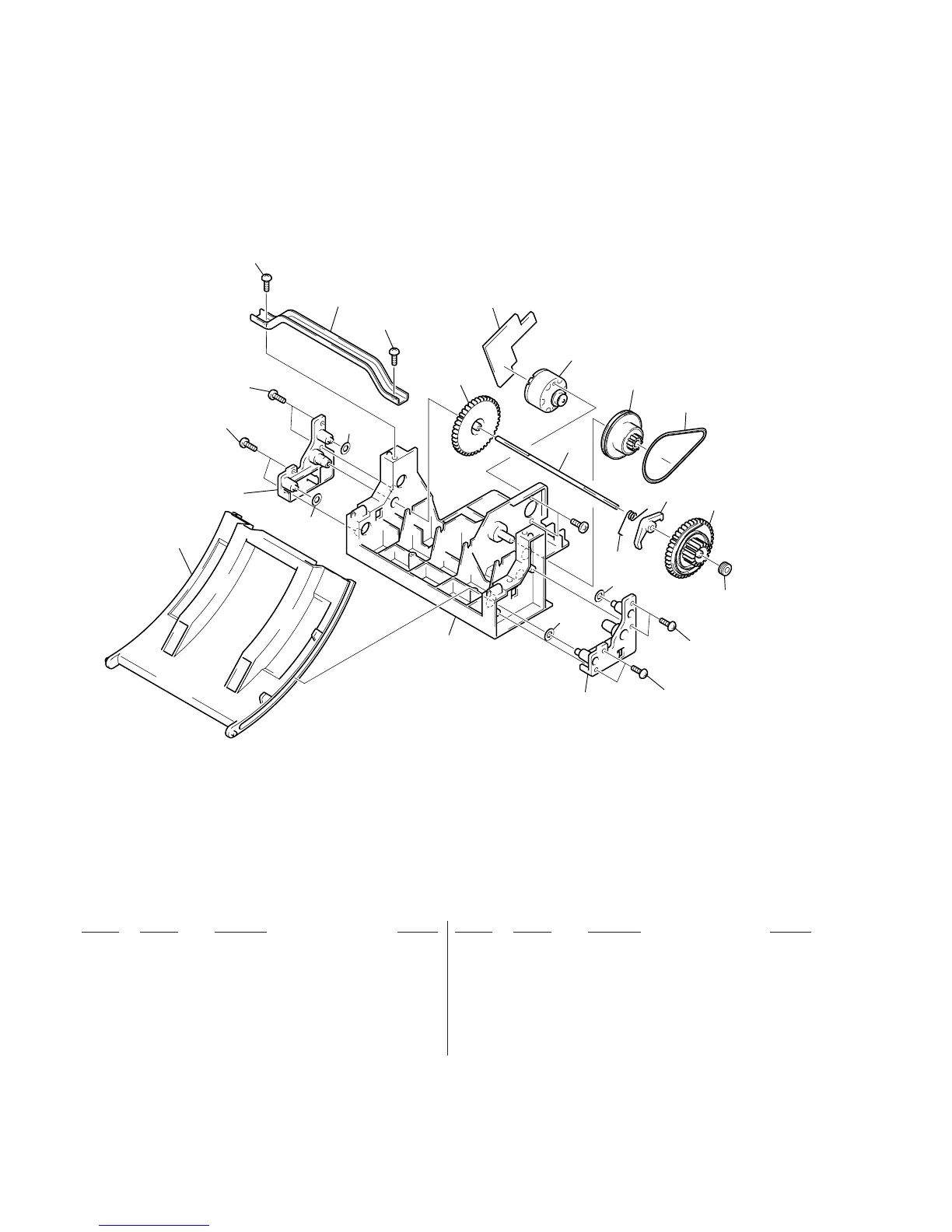

5-3. SLIDE MECHANISM SECTION
