— 43 —

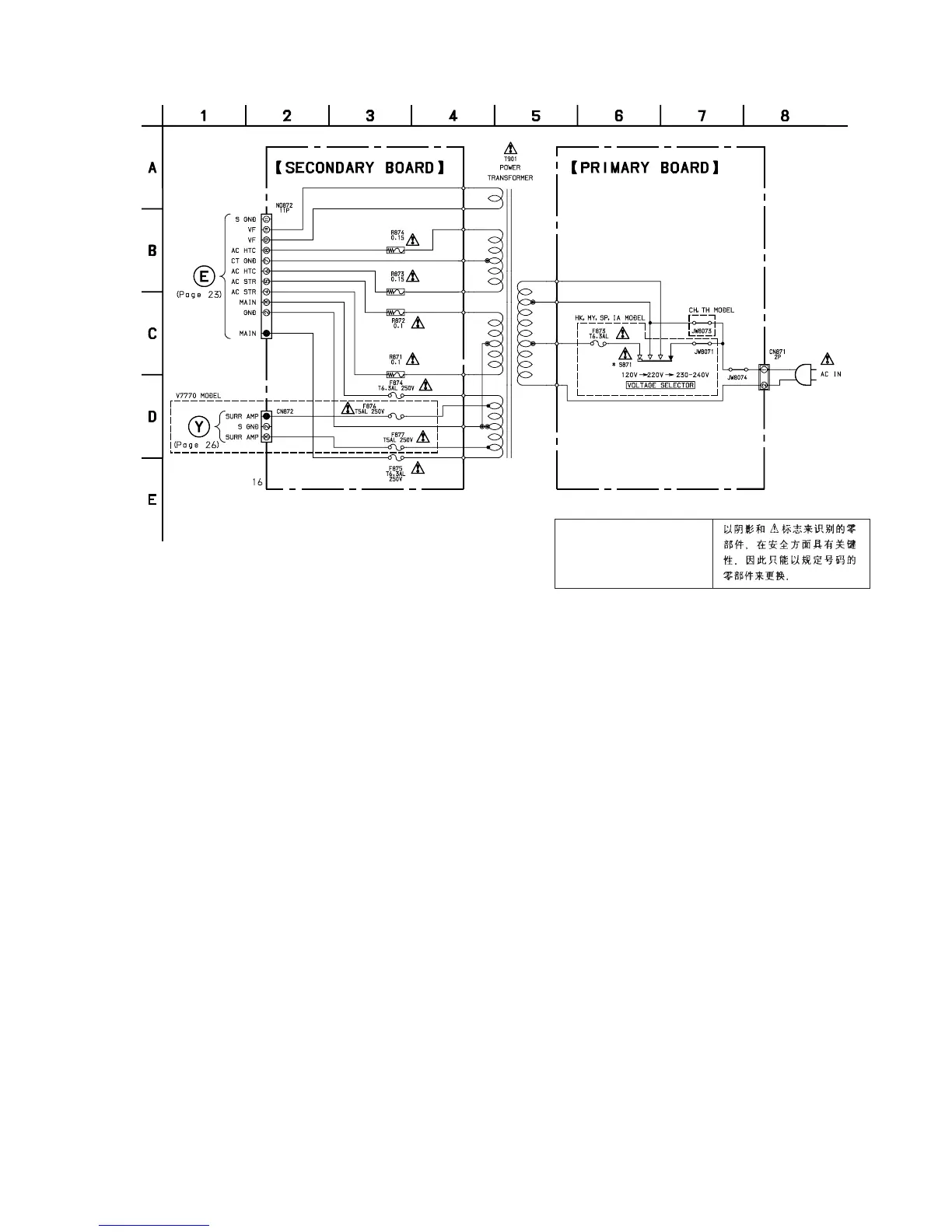

4-16. SCHEMATIC DIAGRAM – TRANS SECTION –
STR-V5550/V7770
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
