— 44 —

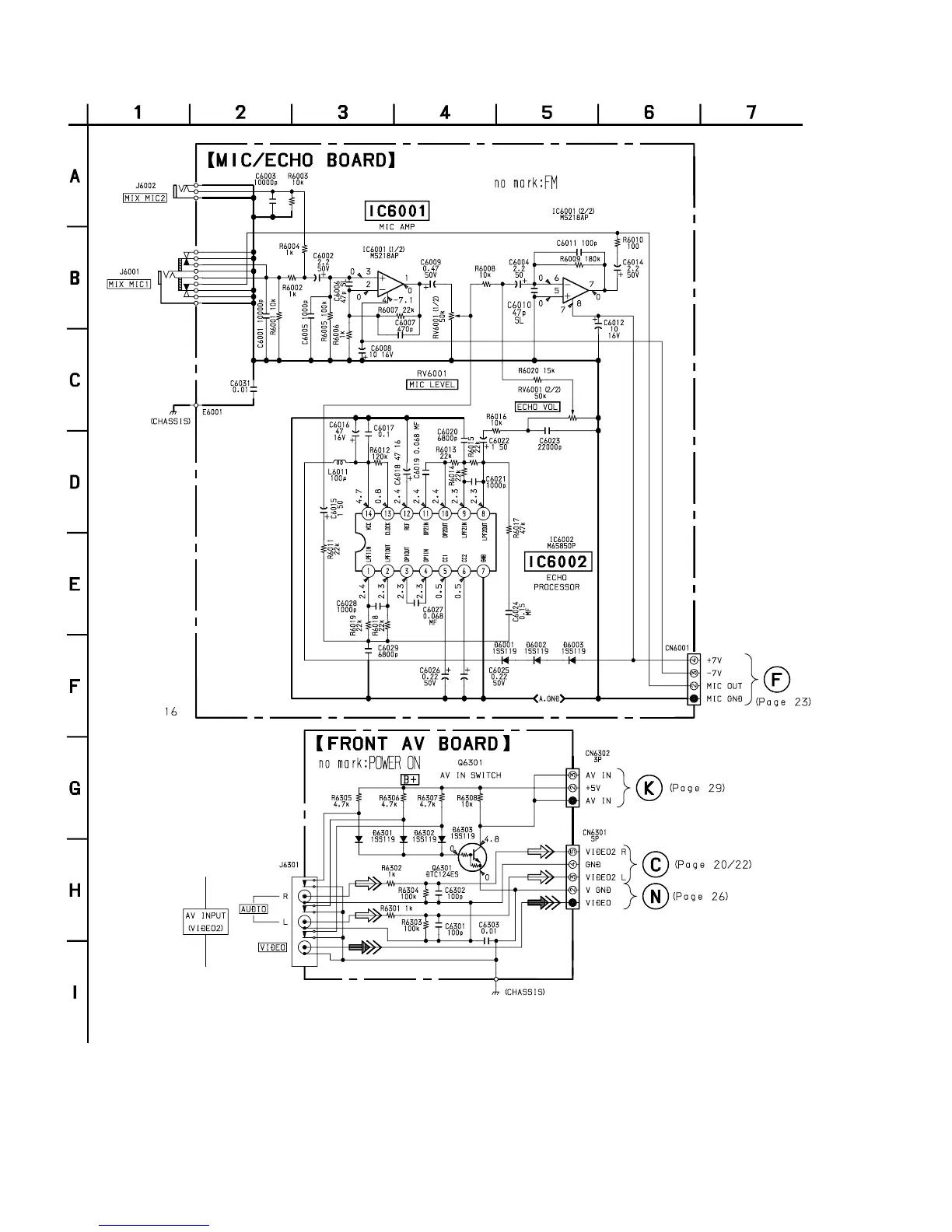

4-17. SCHEMATIC DIAGRAM – AV/MIC SECTION –
STR-V5550/V7770
• Refer to page 48 for IC Block Diagrams.
