Sony STR-V7770 - Printed Wiring Board - Display Section

STR-V5550/V7770

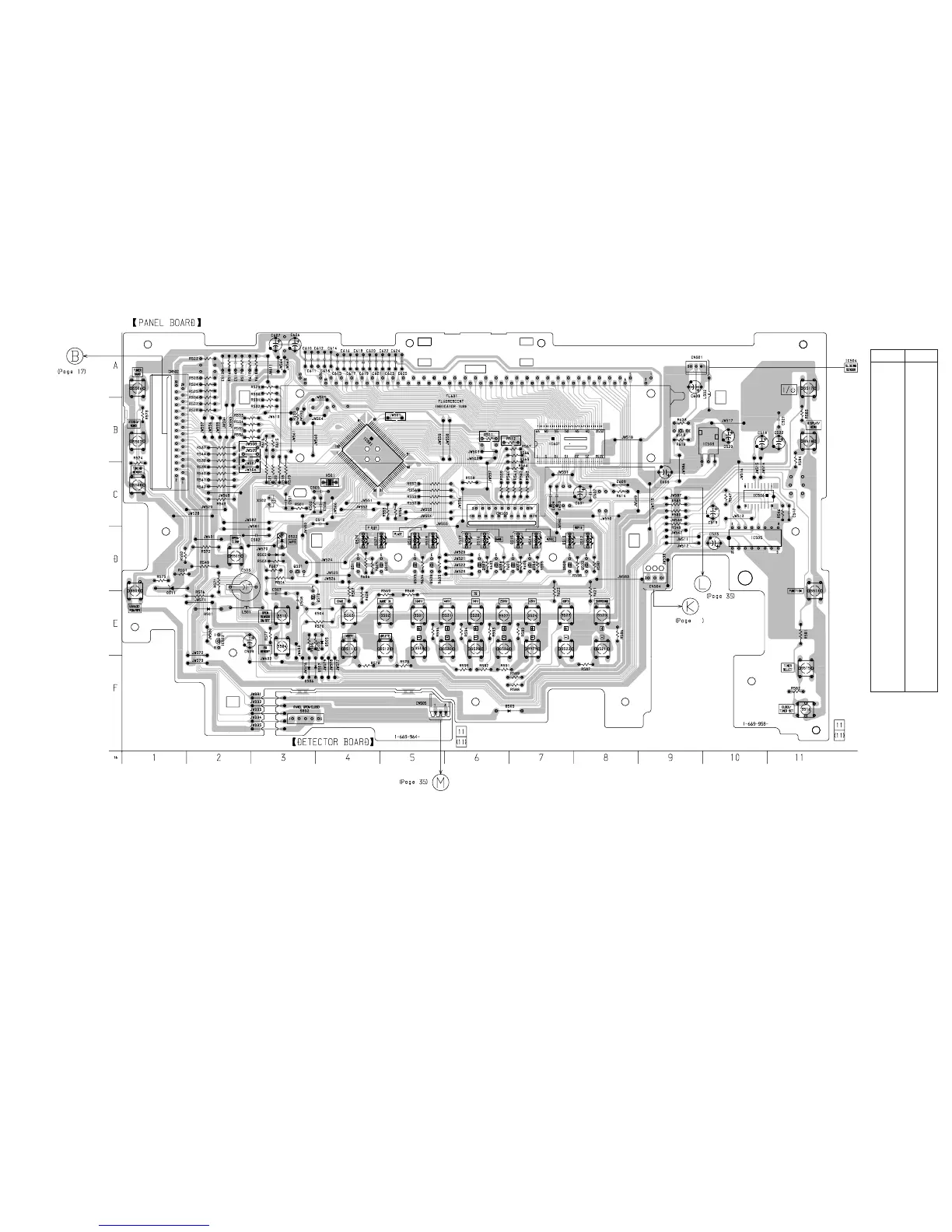

4-10. PRINTED WIRING BOARD — DISPLAY SECTION —
• Refer to page 10 for Circuit Boards Location.
— 31 — — 32 —
Ref. No. Location
D501 E-2
D502 D-3
D504 E-4
D505 F-4
D506 F-3
D507 F-3
D509 F-6
D511 D-1
D512 D-8
D513 D-7
D514 D-7
D515 D-7
D516 D-6
D517 D-6
D518 D-5
D519 D-5
D520 D-4
D521 D-5
D522 D-3
IC501 B-4
IC502 E-2
IC503 B-10
IC505 D-10
IC506 C-10
IC601 B-7
Q501 D-3
Q502 D-8
Q503 D-7
Q505 D-7
Q504 D-7
Q506 D-6
Q507 D-6
Q508 D-5
Q509 D-5
Q510 D-5
Q511 D-4
Q512 E-3
Q513 B-9
• Semiconductor
Location
V5550
V7770
V5550
V7770
V7770TH
45
