Sony STR-V7770 - Front Panel Section

— 53 —
51 X-4950-247-1 FRONT PANEL ASSY (V5550)
51 X-4950-324-1 FRONT PANEL ASSY (V7770)
53 X-4949-993-1 ESCUTCHEON (L) ASSY
54 X-4949-994-1 ESCUTCHEON (EQ) ASSY
56 4-977-358-11 CUSHION
57 4-962-708-11 EMBLEM (4-A), SONY
58 4-951-620-01 SCREW (2.6 × 8), +BVTP
* 59 A-4414-708-A MIC/ECHO BOARD, COMPLETE
* 60 1-669-960-11 HEADPHONE BOARD
* 61 A-4417-072-A PANELBOARD, COMPLETE
(V5550: HK, MY, SP, CH)
* 61 A-4414-737-A PANEL BOARD,COMPLETE(V5550: IA)
* 61 A-4417-076-A PANEL BOARD,COMPLETE
(V7770: HK, MY, SP, CH)
* 61 A-4417-069-A PANEL BOARD,COMPLETE (V7770: TH)
* 62 4-932-810-11 CUSHION (FL)
* 63 4-900-849-01 HOLDER (FL)
* 64 1-669-957-11 FRONT AV BOARD
65 4-900-845-01 BRACKET SLIDER
* 66 1-669-964-11 DETECTOR BOARD
67 4-900-868-01 KNOB (CENTER)
68 4-900-867-01 KNOB (CONTROL)
FL601 1-517-775-11 INDICATOR TUBE, FLUORESCENT
IC504 8-719-070-85 IC KU381-40
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
60
65
62
62
63
61
64
58
58
58
58
58
58
58
58
56
58
68
54
53
57
51
67
56
66
59
not supplied
not supplied
FL601
IC504

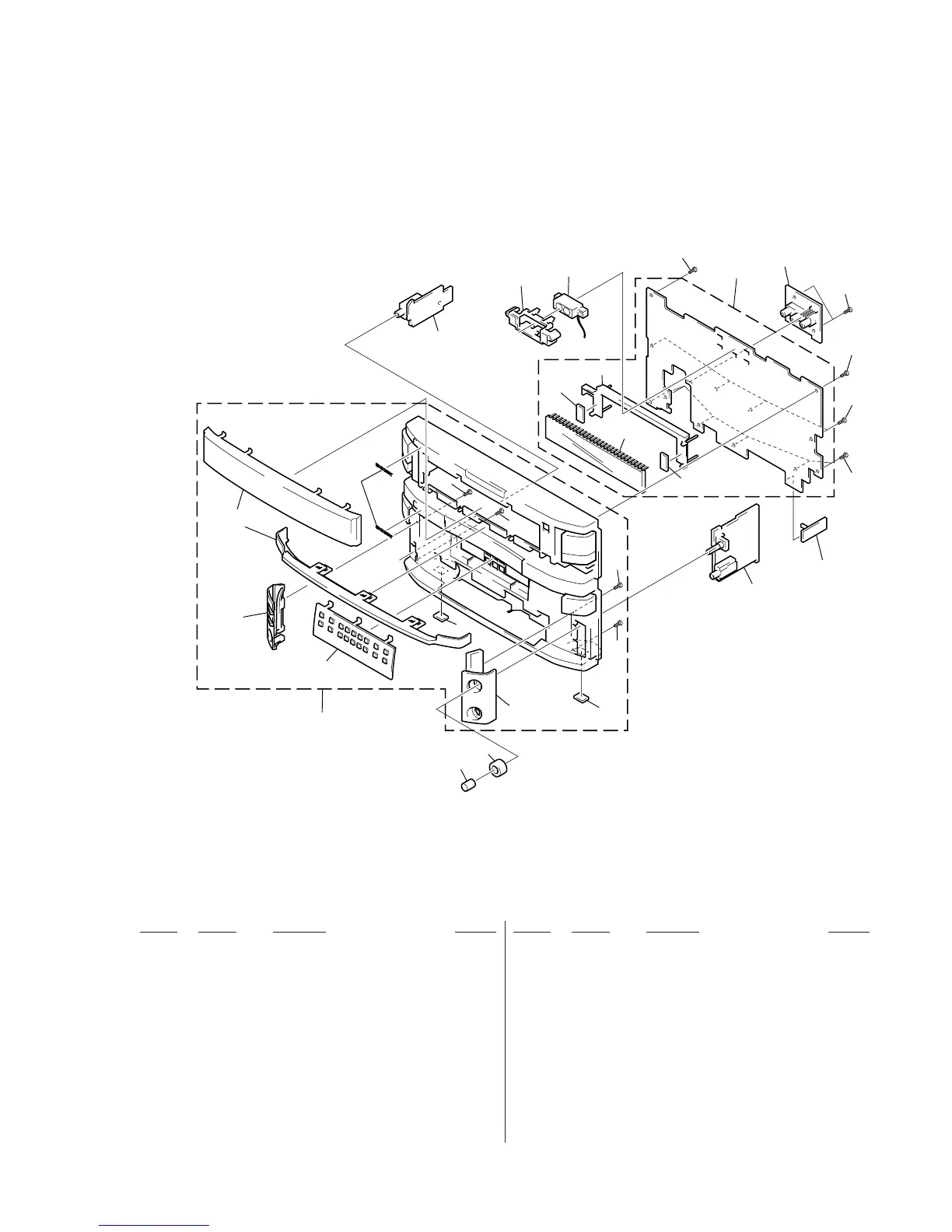

5-2. FRONT PANEL SECTION
