SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

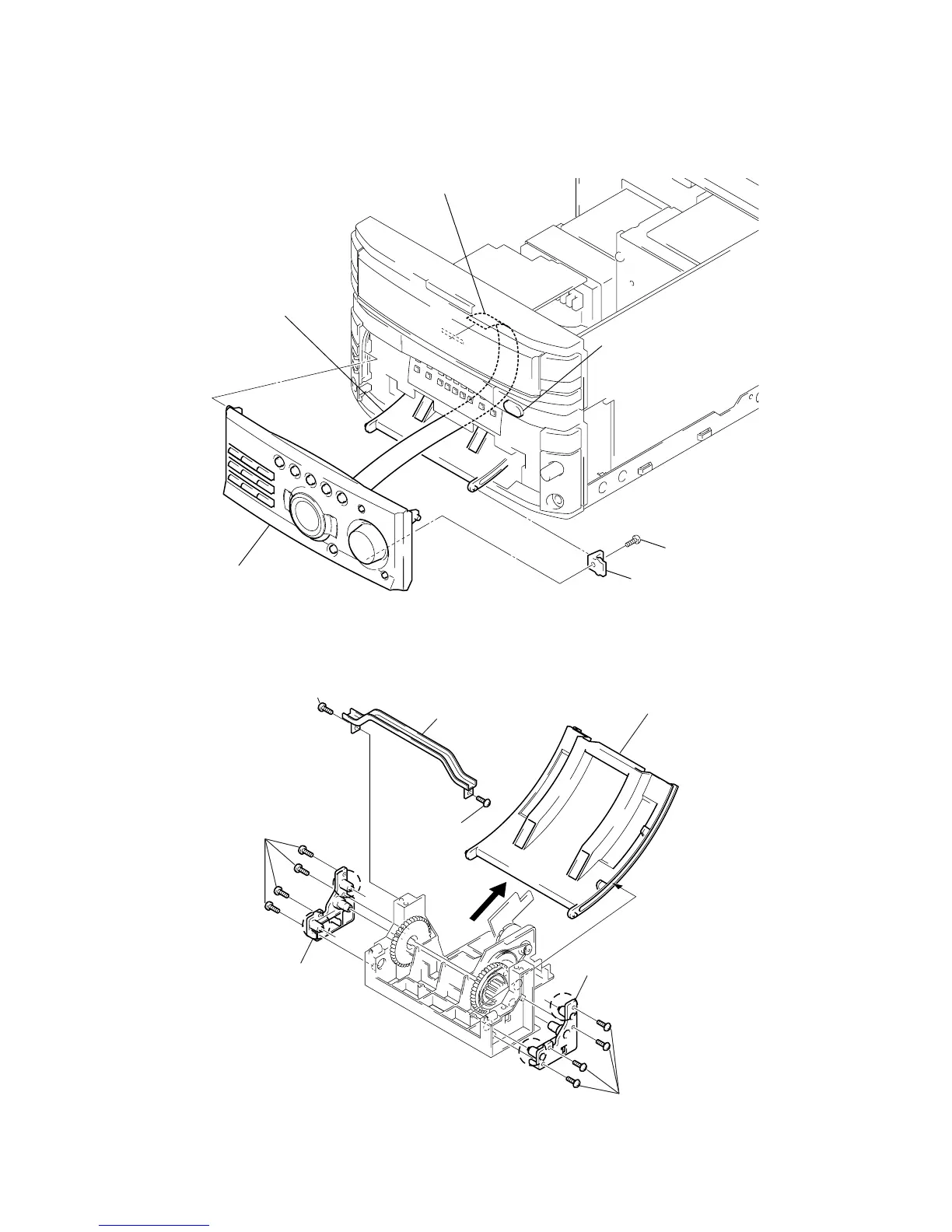

2-1. SLIDING PANEL ASSEMBLY
• NOTE FOR INSTALLATION (LEVEL SLIDER)
(Perform this DISASSEMBLY after the front panel is removed.)
NOTE :
Attach in the reverse order, but make sure the rollers (
a
,
b
) of the
holder (L) assembly and holder (R) assembly fit into the grooves of
the level slider.
4
Flat type cable (19 core)
2
Screw (BVTP 3
×
8)
3
Holder level
5
Sliding panel assembly
Slide mechanism
1
Push the OPEN/CLOSE button to
open the Sliding panel assembly.
1
Screw (BVTP2.6
×
8)
4
Four screws
(BVTP2.6
×
8)
5
Holder (L) assembly
a
a
b
b
6
Four screws (BVTP2.6
×
8)
7
Holder (R) assembly
8
Remove the Level slider direction of arrow.
2
Screw
(BVTP2.6
×
8)
3
Top bracket
To Next Page
