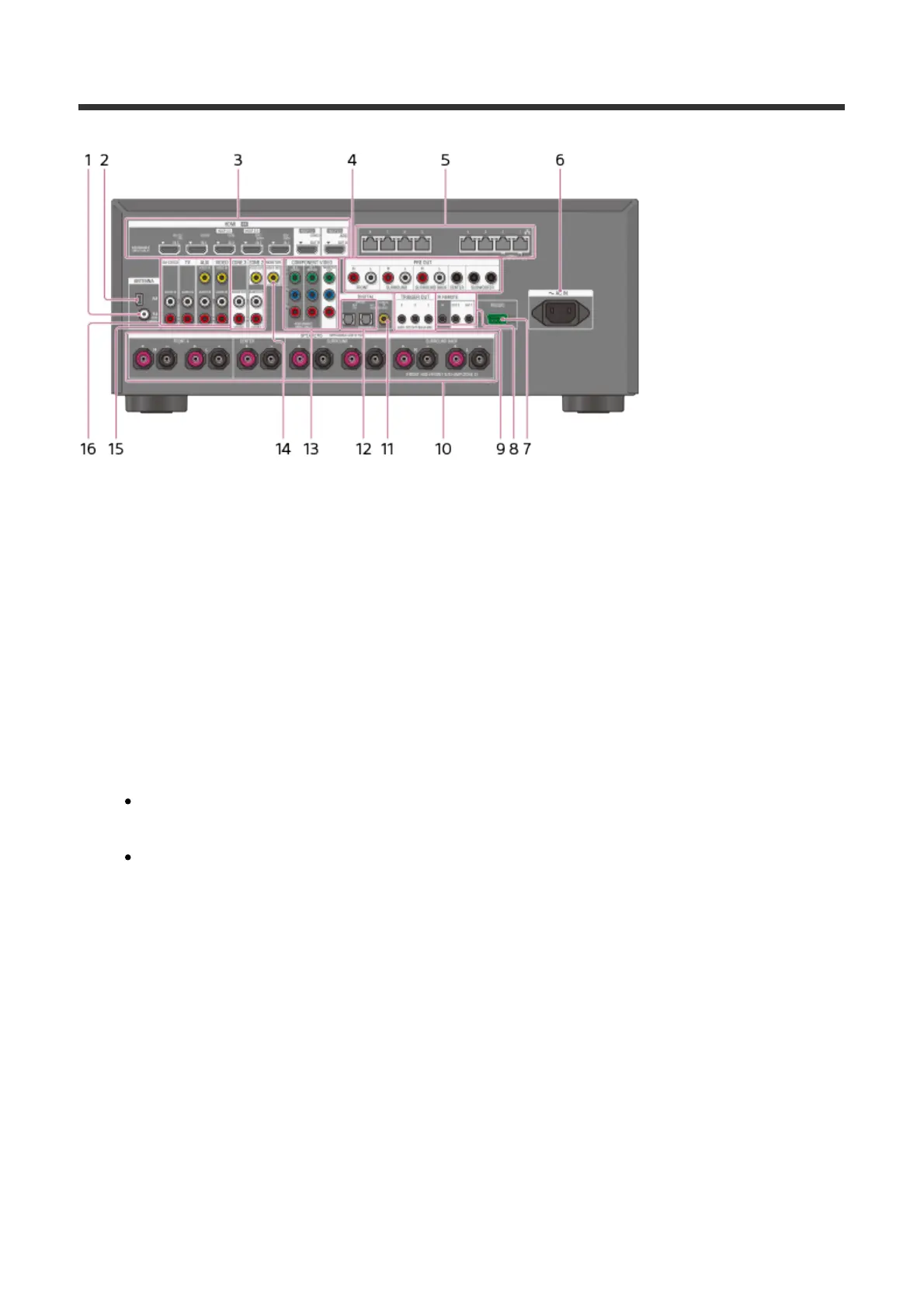

Rear panel (STR-ZA3000ES)
1. FM ANTENNA terminal
2. AM ANTENNA terminal
3. HDMI IN/OUT (*1) jacks
4. PRE OUT jacks
Connect to an external power amplifier and a subwoofer.
5. Giga-bit Ethernet HUB (*2)
6. AC IN terminal
Connect the supplied AC power cord (mains lead).
7. RS232C port (*2)
8. IR REMOTE IN/OUT jacks
You can control the receiver from a distance by connecting an IR repeater (not
supplied) to the IR REMOTE IN jack.
You can start or stop playback of devices such as a CD player connected to the
receiver by connecting an IR Blaster (not supplied) to the IR REMOTE OUT jack.
9. TRIGGER OUT jacks
Connect to interlock on/off of the power supply of other 12V TRIGGER compliant
equipment, or the amplifier/receiver of zone 2 or zone 3.
10. SPEAKERS terminals
11. DIGITAL COAXIAL IN jack
12. DIGITAL OPTICAL IN jacks
13. COMPONENT VIDEO IN/OUT (*1) jacks
14. MONITOR VIDEO OUT (*1) jack
15. ZONE 2/ZONE 3 OUT jacks
16. Video/audio input jacks
*1
You must connect your TV to HDMI OUT or MONITOR VIDEO OUT jack to watch images from
the selected input.
