WARNING. To meet EMI emission and safety specifications, the waveform
monitor must be installed in a Tektronix 1700F00, 1700F02, or 1700F05
enclosure. The enclosure front edges must securely contact the conductive front
bezel on all four sides.
The optional 1700F00 cabinet is the basic element for all of the cabinets. The
1700F02 portable carrying case is an enhanced version of the 1700F00 cabinet,
as is the 1700F05 side-by-side rack mount assembly. All cabinets are available
from your Tektronix representative.
The portable cabinet, 1700F02, is shown in Figure 1–2. The 1700F02 has a
handle, four feet, and a flip-up stand. The mounting hole sizes and spacing are
different from those of the 1700F00.
21 cm
(8.25 in)
42.7 cm
(16.2 in)
13 cm
(5.1 in)

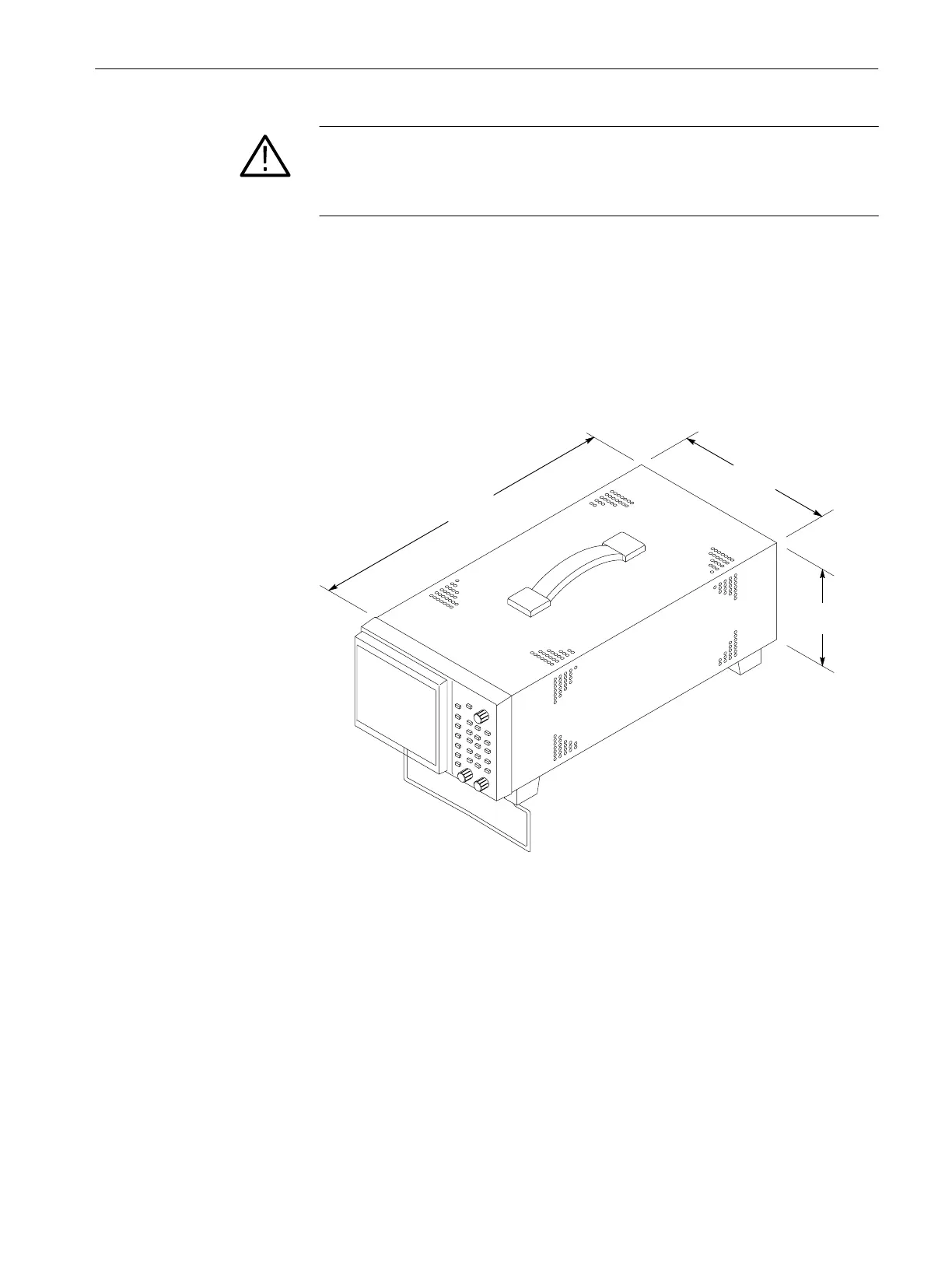

Figure 1-2: 1700F02 portable cabinet
