WFM 1125 Option 0A/0B/0C/0D User Manual
3-21
SAVE :
CHA
ACQU :
CHB
BTA
YPbPr

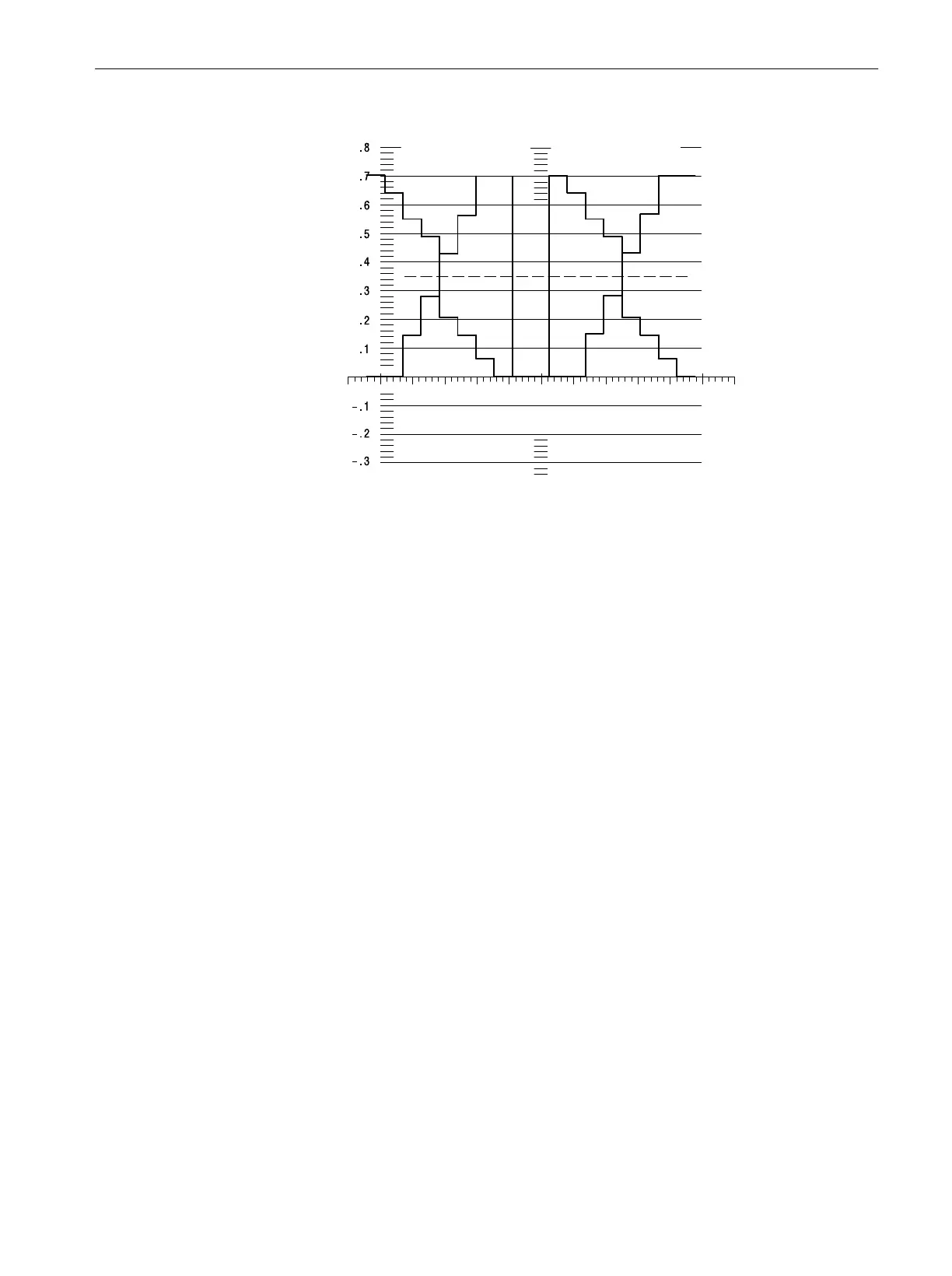

Figure 3-15: Waveform display example in Save and Display mode
Setting Sweep
The sweep rate for the horizontal axis and magnification along the horizontal
axis can be changed using the SWEEP button and MAG button, respectively.
The sweep rate can be selected from the bezel menu, however the sweep rate
readout on the bezel menu is available only when CH1, CH2, CH3, or PARADE
is selected. In Overlay, Vector, Bowtie, and Status modes, the sweep mode is
disabled.
The following options are available when channel 1, 2 or 3 is selected:
H 1 LINE: Waveform of 1 line is displayed. You can choose a line from field or
frame by using the line selection feature. For more information about the
relation between the sweep setting and the horizontal scale for each option,
refer to Table 3–2 and Table 3–3 on page 3–12.
H 2 LINE: Waveforms of 2 line is displayed successively. You can choose lines
from field or frame by using the line selection feature. For more information
about the relation between the sweep setting and the horizontal scale for each
option, refer to Table 3–2 and Table 3–3 on page 3–12.
H 1 FIELD: All the lines in 1 video field are displayed.
