Sony TRINITRON BVM-14G1A - Control Unit (BKM-10 R)

8-14
REF NO. PART NO. DESCRIPTION REMARK
401 4-050-851-01 KNOB, CONTROL
402 X-4033-118-1 PANEL ASSY, CONTROL
403 * A-1372-134-A HB MOUNTED PWB
404 * A-1372-133-A HA MOUNTED PWB
405 * A-1375-149-A HC COMPLETE PWB
406 * A-1372-136-A HD MOUNTED PWB

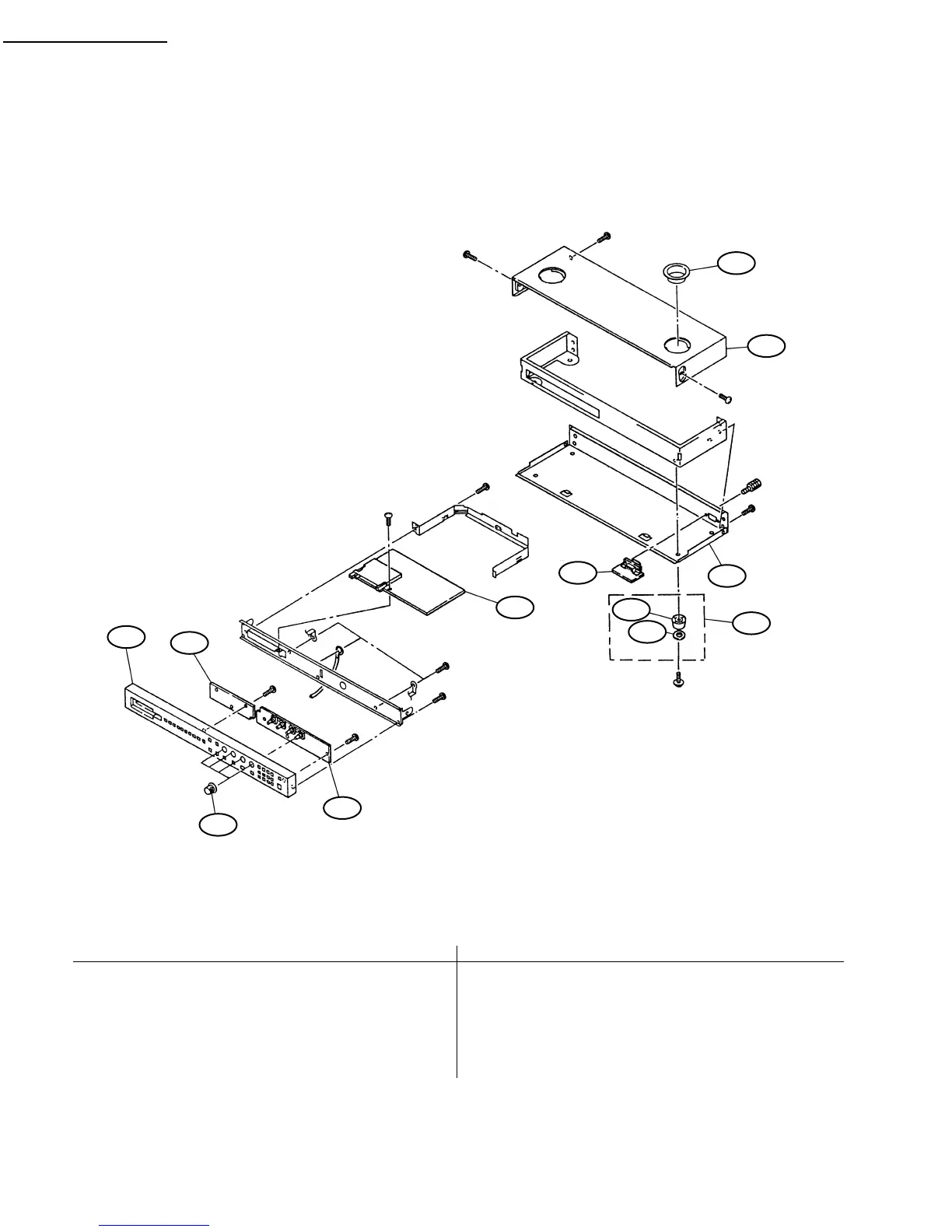

8-7. CONTROL UNIT (BKM-10R)
REF NO. PART NO. DESCRIPTION REMARK
407 4-050-852-01 HOLDER, FOOT
408 4-050-858-01 COVER (TOP)
409 4-050-857-01 COVER (BOTTOM)
410 X-4033-117-1 FOOT ASSY 411,412
411 X-4836-202-9 FOOT
412 * 3-668-845-01 CUSHION, LEG
402
403
401
404
405
410
409
406
408
407
411
412
+BV3x12
+BV3x12
+BV3x12
+PSW3x6
+PS4x16
+B4x8
+B4x8
+B4x8
+B4x8
+PSW3x6
+PSW3x6
CONTROL UNIT
