Sony TRINITRON BVM-14G1A - Bezel Assy Removal (14 G5 A;14 G5 E;14 G5 U); HA, HB, YA, YB and YC Boards Removal (14 G5 A;14 G5 E;14 G5 U)

2-8

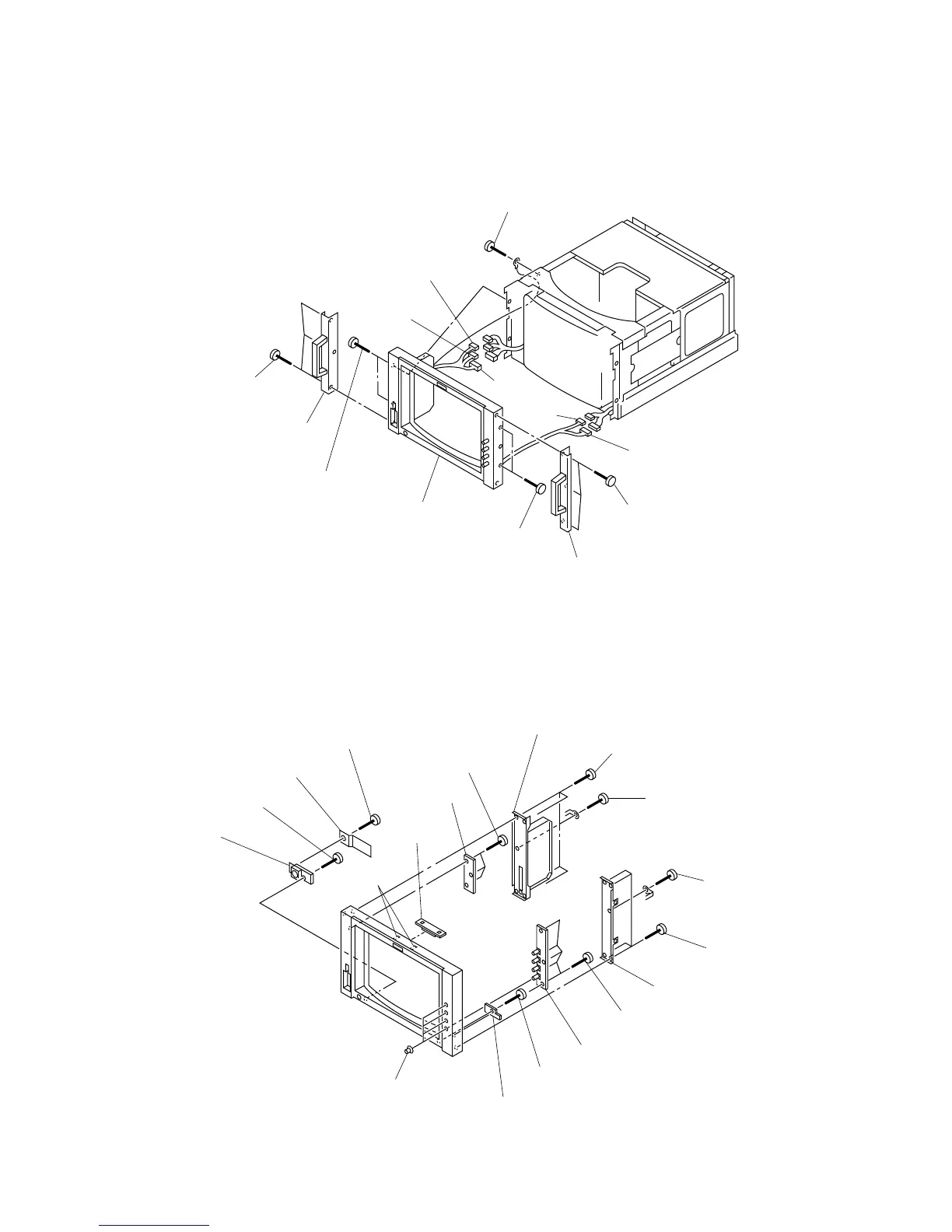

2-2-7-1-1. BEZEL ASSY REMOVAL (14G5A/14G5E/14G5U)
2-2-7-1-2. HA, HB, YA, YB AND YC BOARDS REMOVAL (14G5A/14G5E/14G5U)
6 Two screws
(+B4x8)
4 Three screws
(+PSW4x14)
2 Three screws
(+PSW4x14)
7 Two screws
(+B4x8)
1 Screw
(+BVTT4x8)
5 Handle assy
3 Handle assy
8 Bezel assy
6 pin
8 pin
9 pin
16 pin
16 pin
0 Three screws
(+BVTP3x12)
8 Four screws
(+BVTP3x12)
5 Five screws
(+BVTP3x12)
2 Four screws
(+BVTP3x12)
9 Bezel bracket (L)

3 Bezel bracket (R)

!™ Two claws

!• Screw
(+BVTP3x10)

!§ Screw
(+BVTP3x10)

7 Screw
(+PSW3x6)

1 Screw
(+PSW3x6)

!¢ Screw
(+BVTP3x10)

4 Four control knobs
!ª YC board !£ YA board
6 HA board
!∞ YB board
!¡ HB board
!¶ YC insulator
