Sony TRINITRON BVM-14G1A - TA and TB Boards Removal; YA, YB and YC Boards Removal (14 G1 A;14 G1 E;14 G1 U)

2-7

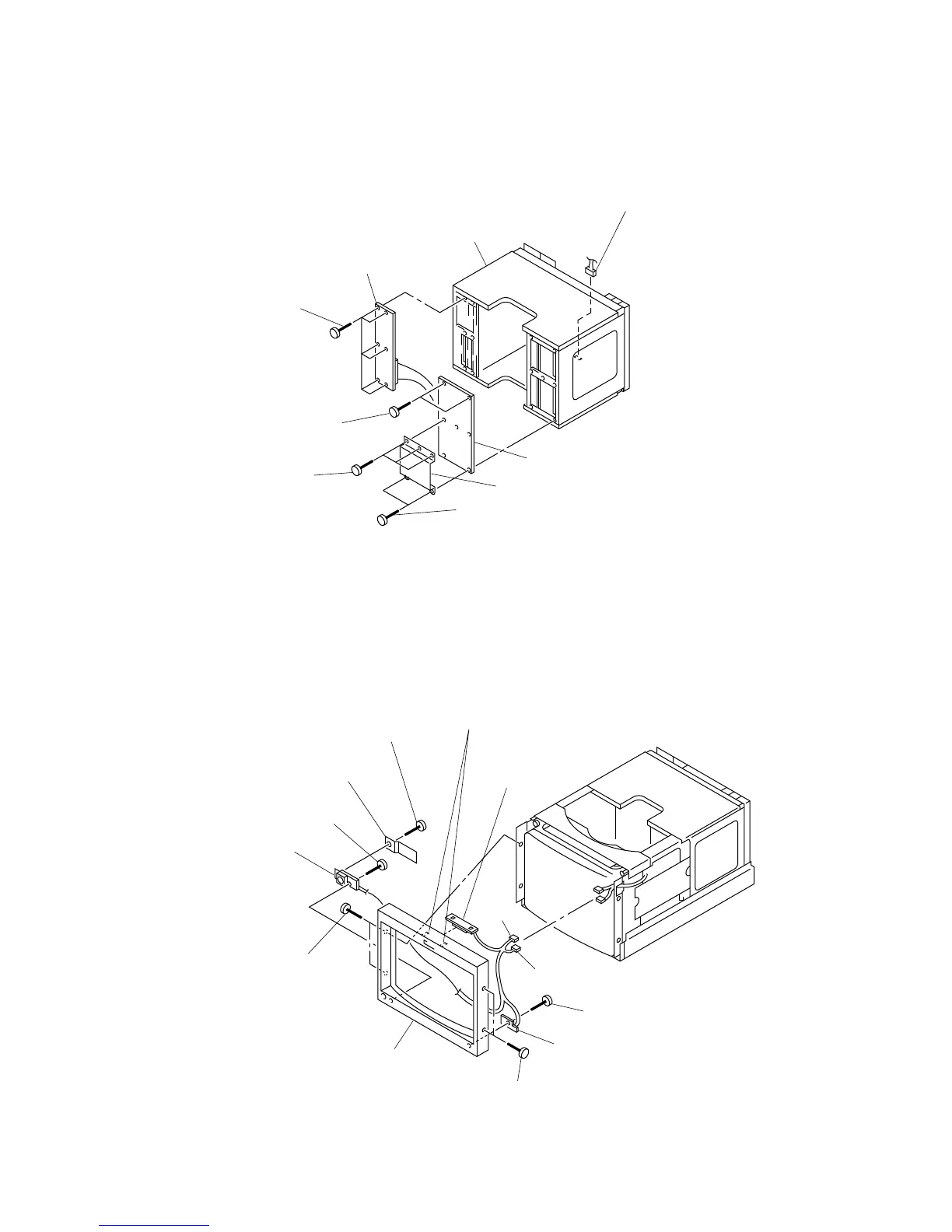

2-2-6. TA AND TB BOARDS REMOVAL
2-2-7-1. YA, YB AND YC BOARDS REMOVAL (14G1A/14G1E/14G1U)
3 Two screws
(+BVTT3x8)
4 Three screws
(+BVTT3x8)
6 Two screws
(+BVTT3x8)
1 Six screws
(+BVTT3x8)
7 TB board
5 T shield
2 TA board
Card slot assy
CN102
[ 14G1U/14G1E/14G1A/20G1U/20G1E/20G1A]
2 Two screws
(+B4x8)
1 Two screws
(+B4x8)
4 Two claws

6 Screw
(+BVTP3x10)
8 Screw
(+BVTP3x10)
!º Screw
(+BVTP3x10)
7 YB board
3 Bezel assy
5 YA board
!¡ YC board
9 YC insulator

6 pin
8 pin
