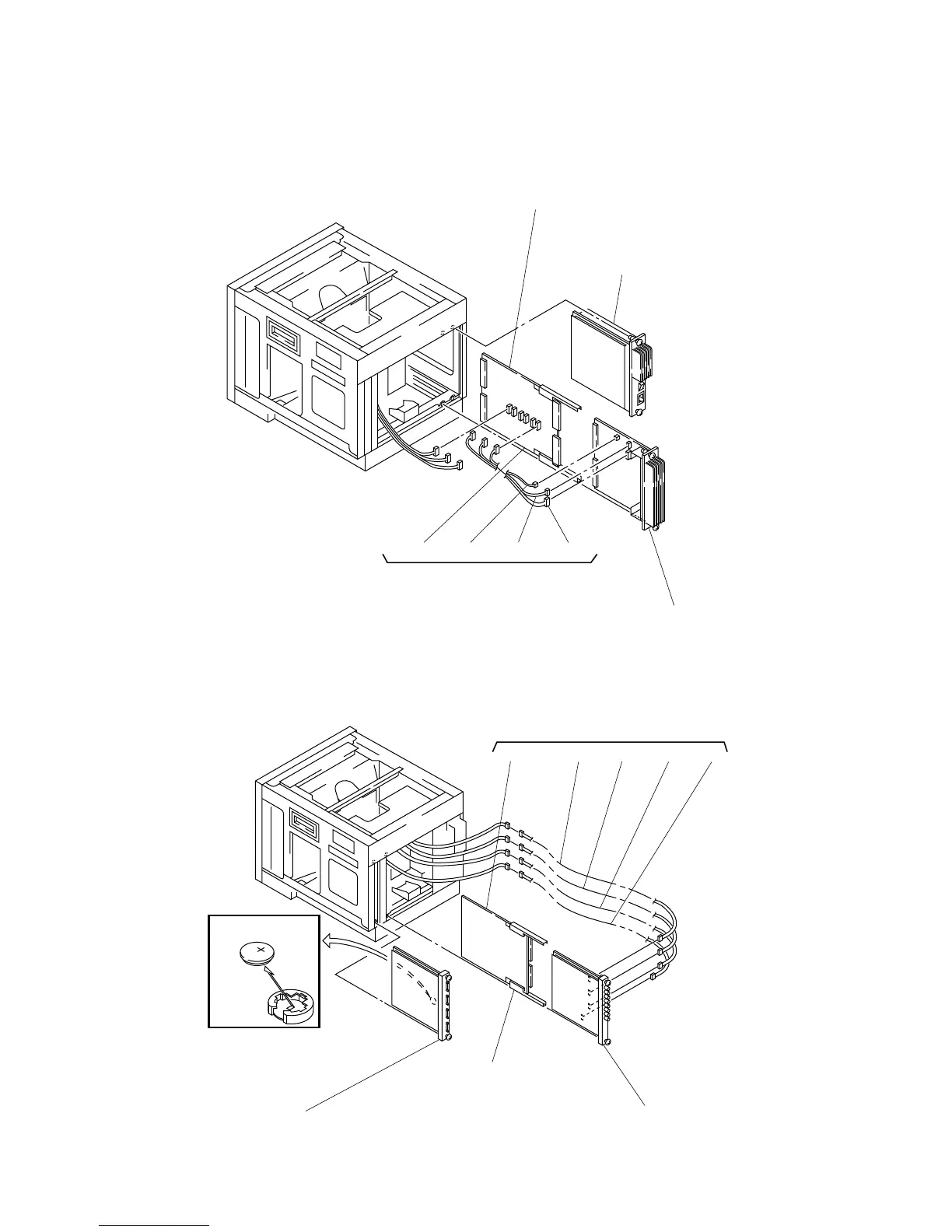

2-2-3. E AND G BOARDS REMOVAL AND CHECK
Note: The G board can be checked in the same way of the E board.
2-2-4. BC AND BK BOARDS REMOVAL AND CHECK
Note: The BC board can be checked in the same way of the BK board.
2 G board
[ Loosen two screws(+B4x20) ]
1 E board
[ Loosen two screws(+B4x20) ]
Z board

Extension board / Cable kit
(Part No. : A-1394-806-B)

∗ Insert the Z board into the slot and insert the E board 
into the connect on the Z board.
CN905 CN903 CN902
1 BK board
[ Loosen two screws(+B4x20) ]
2 BC board
[ Loosen two panel stopper screws ]
Z board

Extension board / Cable kit
(Part No. : A-1394-806-B)

∗ Insert the Z board into the slot and
insert the BK board into the connect
on the Z board.
CN2
CN3
CN4
CN5
Battery(CR2025)
Battery removal
Battery
holder
