Sony TRINITRON BVM-14G1A - 3 Set-Up Adjustments; Preparations

3-1
SECTION 3
SET-UP ADJUSTMENTS
Perform the following adjustments when replacing the CRT.
3-1. Preparations
[Required Tools and Measuring Instruments]
1. Signal generator
2. Oscilloscope
3. Color analyzer (MINOLTA CA-100)
4. Following specified cables for connecting RS-232C pin
of CA-100 and OPTION pin of monitor.
[Setting of INPUT CONFIGURATION Menu]
Unless specified otherwise, set the INPUT CONFIGURA-
TION menu of the SETUP menu as follows.
FORMAT ........................... COMPONENT YUV
SMPTE/EBU N-10
SLOT NO ........................... 6
INPUT NO ......................... 1
SYNC MODE .................... INT
SCREEN MODE ............... 4:3 NORM
SAFE AREA ...................... OFF
CHANNEL NAME ............ PROG
COLOR TEMP .................. STD
H PHASE ........................... 000

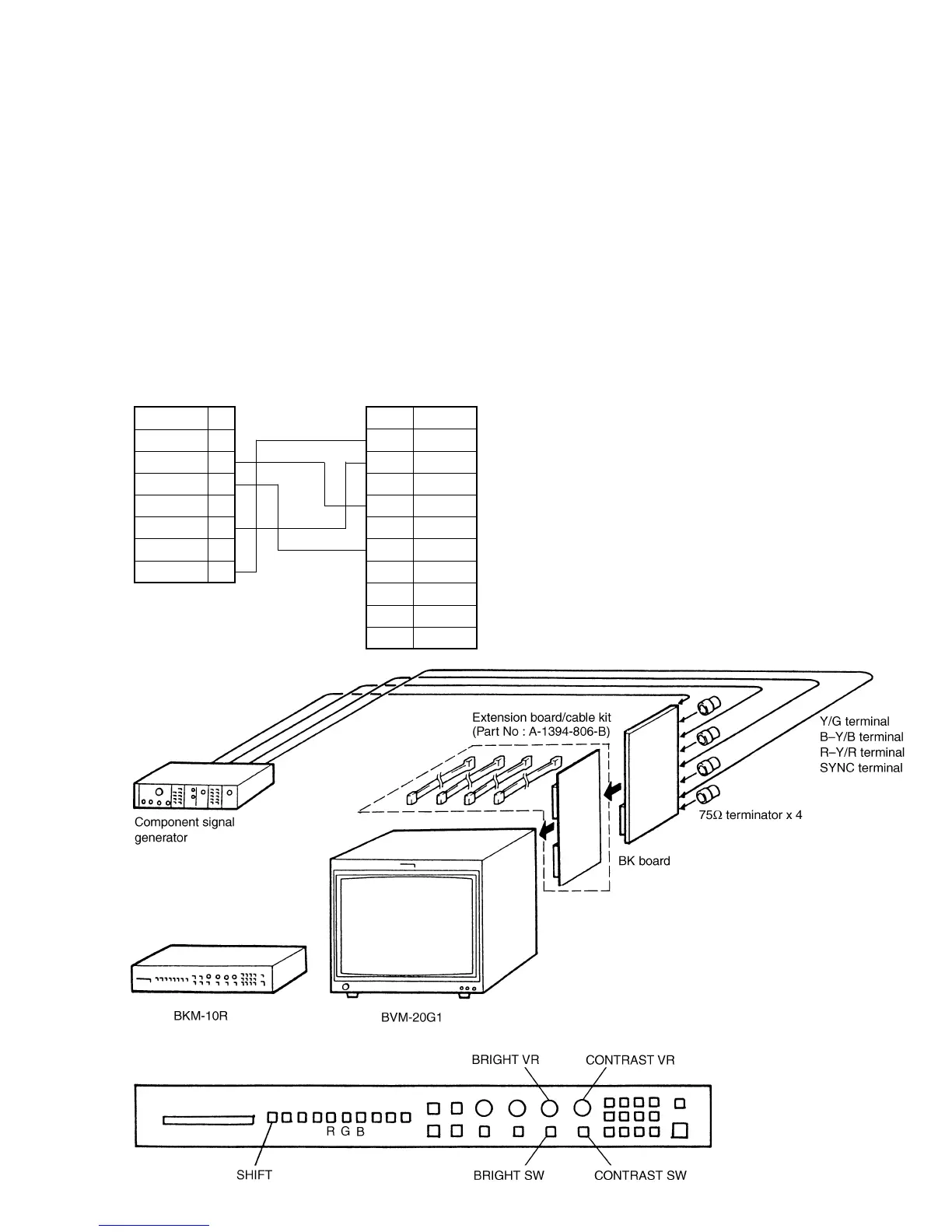

BVM Option connector side
Mini DIN 8pin
CA-100 RS-232C connector side
D Sub 25pin
H SYNC
V SYNC
RTS
GND
NC
TXD
+5V
RXD
1
2
3
4
5
6
7
8
FG
TXD
RXD
RTS
CTS
NC
GND
NC
NC
DTR
NC
1
2
3
4
5
6
7
8
9 to 19
20
21 to 25
• CONNECT
Front Panel of BKM-10R
