Sony TRINITRON BVM-14G1A - FBT Block Assy Removal (14 G1 A;14 G1 E;14 G1 U;14 G5 A;14 G5 E;14 G5 U); FBT Block Assy Removal (20 G1 A;20 G1 E;20 G1 U)

2-4

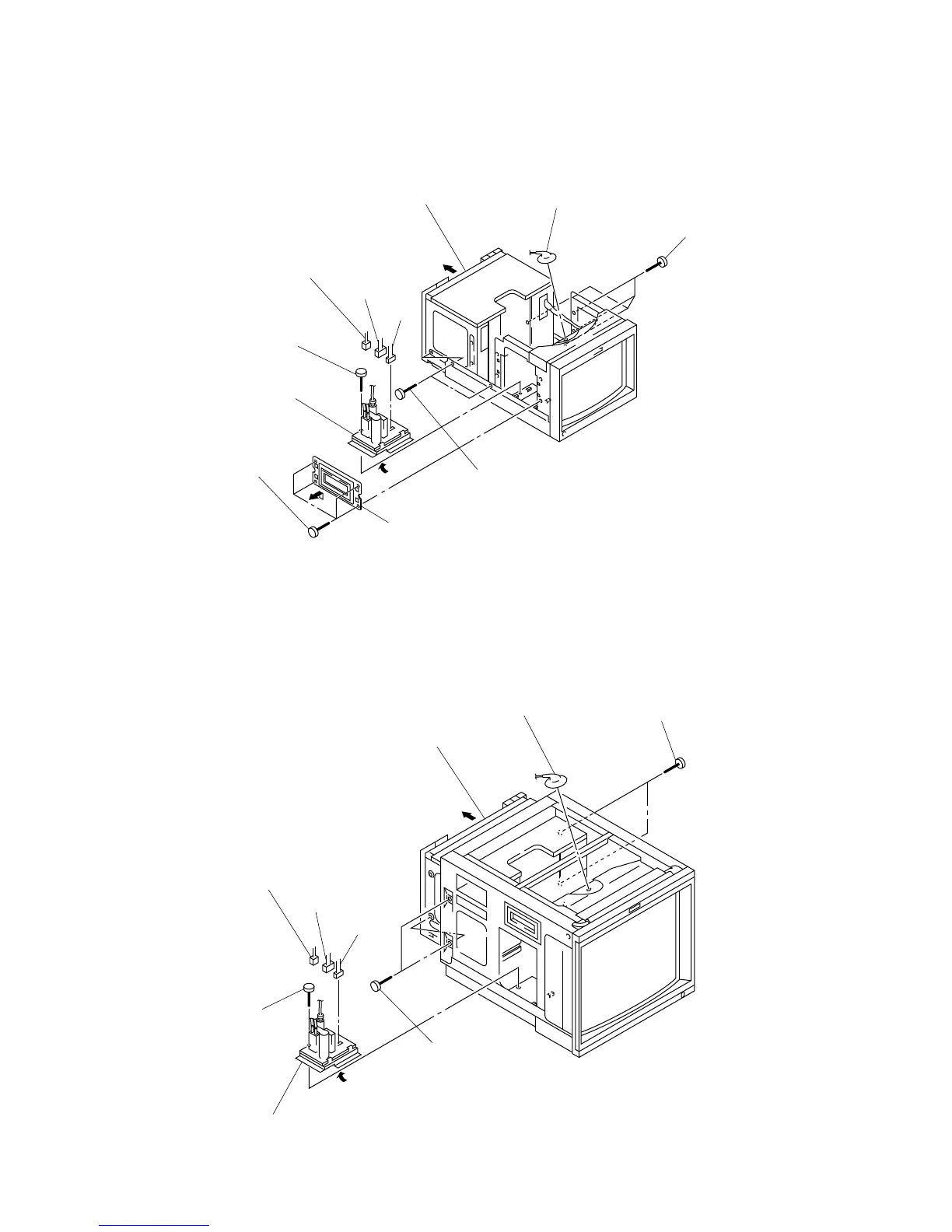

2-2-2-1. FBT BLOCK ASSY REMOVAL (14G1A/14G1E/14G1U/14G5A/14G5E/14G5U)
2-2-2-2. FBT BLOCK ASSY REMOVAL (20G1A/20G1E/20G1U)
1 Four screws
(+P4x8)
4 Four screws
(+P4x8)
3 Two screws
(+P4x8)
7 Screw
(+PS4x8)
6 Anode cap
2 Handle assy
5 Card slot assy
8 FBT block assy
CN904
CN901
CN902
2 Two screws
(+P4x8)
1 Two screws
(+P4x8)
5 Screw
(+PS4x8)
4 Anode cap
3 Card slot assy
6 FBT block assy
CN904
CN901
CN902
