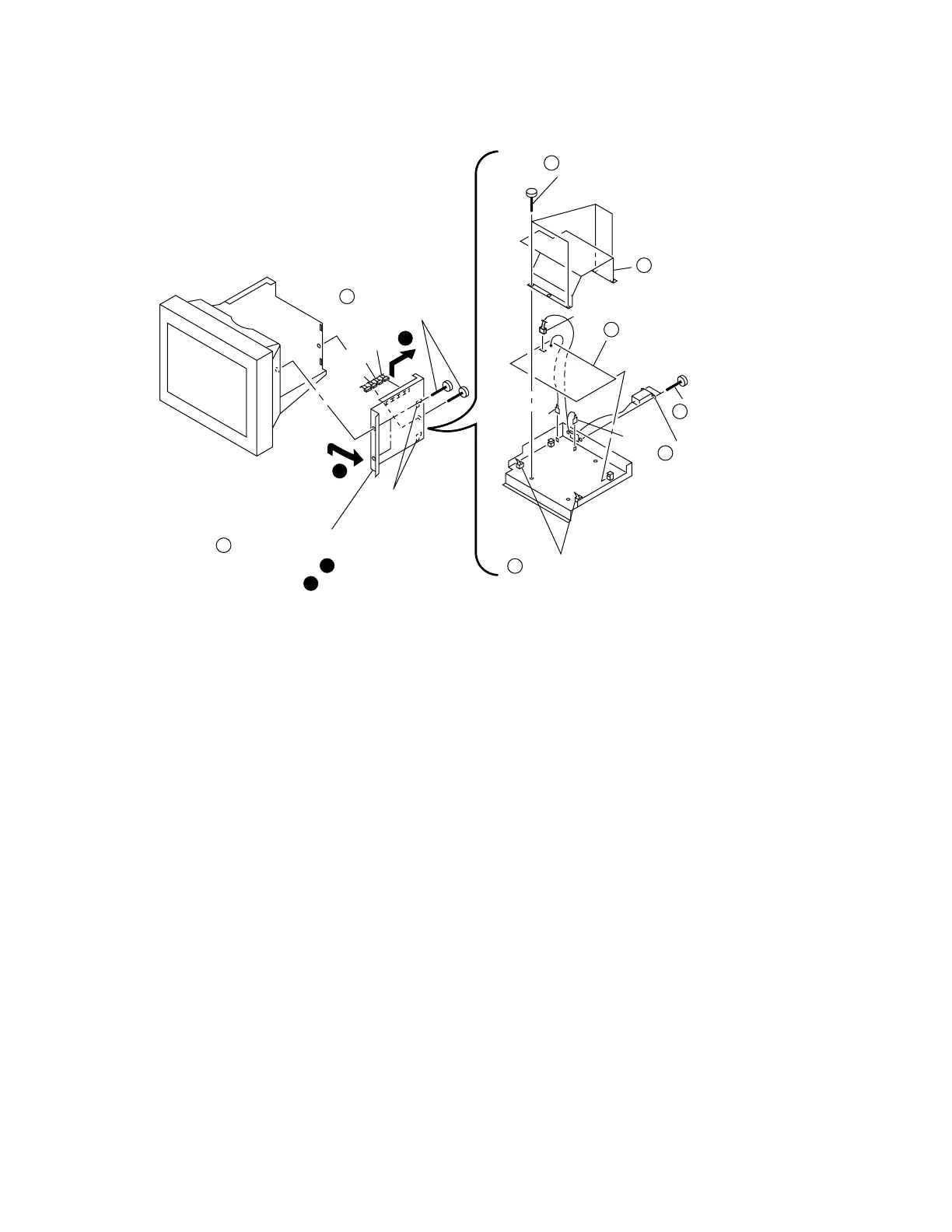

Sony Trinitron CPD-E500 - 2-3. G BOARD REMOVAL

CPD-E500/E500E
A
B
Three screws
(+ BVTT 4 x 8)
Two hooks
Four screws
(+BVTP 3 x 8)
G shield
G board
CN602
CN654
CN653
CN652
CN650
GND
GND
Open the G block in the direction
of the arrow . and remove of
the arrow .
A
B
Two printed circuit board holders
2
1
Two screws
(+ BVTP 3 x 8)
7
AC inlet (3P)
8
5
3
4
6
2-3. G BOARD REMOVAL
2-2
