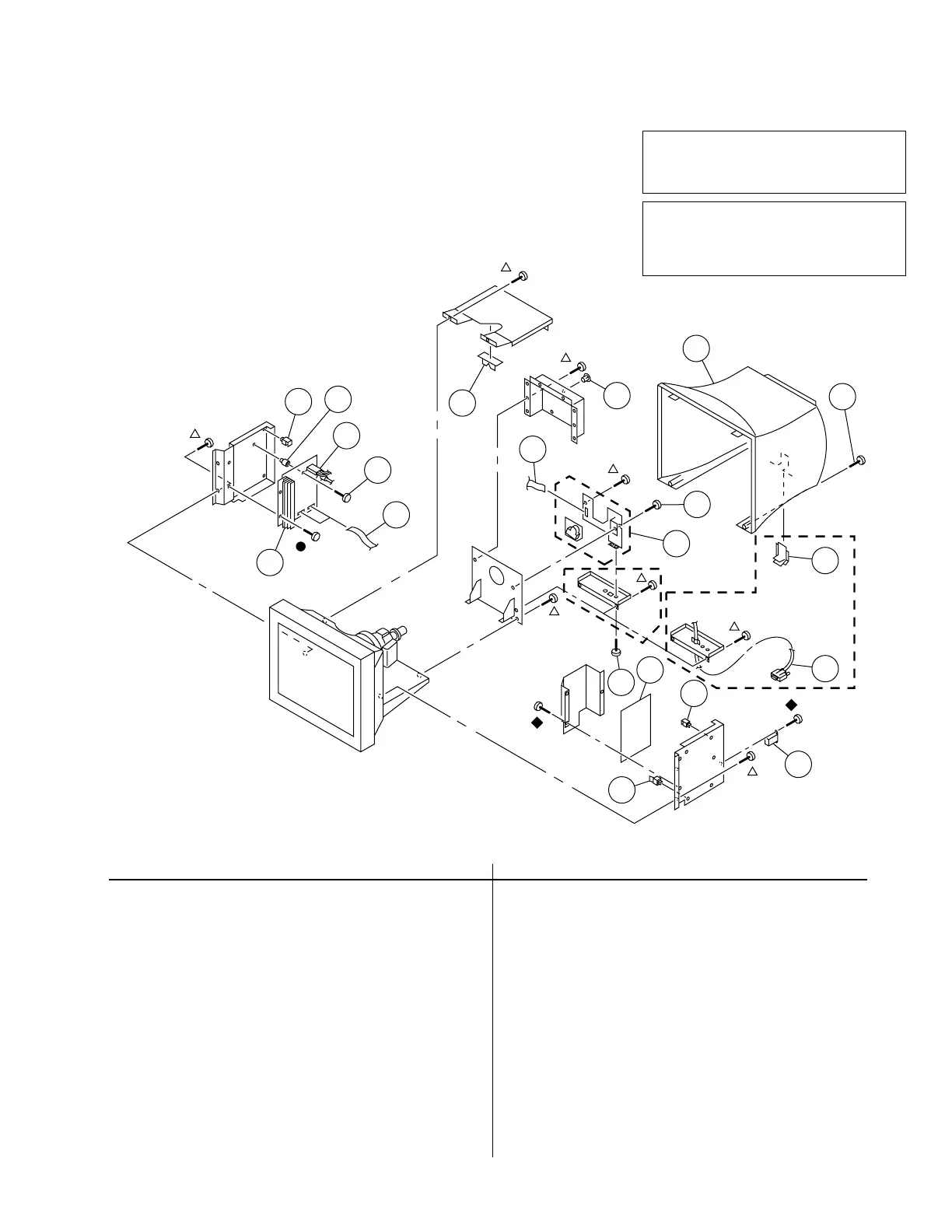

Sony Trinitron CPD-E500 - SECTION 6 EXPLODED VIEWS; 6-1. CHASSIS EXPLODED VIEW

CPD-E500/E500E
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.
6-1. CHASSIS
z 7-685-648-79 +BVTP 3X12
x 7-685-663-71 +BVTP 4X16
7-685-646-79 +BVTP 3X8
f 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
x
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
18
11
1
12
2
13
3
14
15
17
4
5
5
6
7
8
19
10
9
16
[U/C model]
[AEP
model]
1 * A-1346-859-B D BOARD, COMPLETE [AEP] 2
1 * A-1346-827-B D BOARD, COMPLETE 2
[U/C for Japan-made set]
1 * A-1346-860-B D BOARD, COMPLETE 2
[U/C for Mexico-made set]
2 ! X-4560-175-1 TRANSFORMER ASSY, FLYBACK
(NX-4502//J1D4)
3 4-062-115-01 SCREW +P 3.5X20 TYPE2
4 * 4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD
5 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
6 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
7 * A-1316-480-A G BOARD, COMPLETE [AEP]
7 * A-1316-443-B G BOARD, COMPLETE
[U/C for Japan-made set]
7 * A-1316-481-A G BOARD, COMPLETE
[U/C for Mexico-made set]
8 ! 1-251-382-31 INLET, AC 3P (WITH NOISE FILTER)
9 4-205-206-01 SCREW (HD15) [AEP]
9 7-685-881-09 SCREW +BVTP 4X8 (S) [U/C]
10 4-074-915-01 COVER, PIG TAIL [only U/C]
11 *A-1298-988-B A BOARD, COMPLETE [AEP]
11 *A-1299-191-A A BOARD, COMPLETE
[U/C for Japan-made set]
11 *A-1299-135-A A BOARD, COMPLETE
[U/C for Mexico-made set]
12 1-900-246-08 CONNECTOR ASSY (F)
13 1-900-250-06 CONNECTOR ASSY (F)
14 *4-069-570-01 SPACER, PRINTED CIRCUIT BOARD
15 4-071-452-11 CABINET [AEP]
15 4-071-493-11 CABINET [U/C]
16 *4-063-711-01 SUPPORT, HV CABLE
17 4-039-358-01 SCREW (4X16), (+) BV TAPPING [AEP]
17 7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3 [U/C]
18 4-389-025-11 SCREW (M4) (EXT TOOTH WASHER)
19 1-792-123-11 CORD, CONNECTION [only U/C]
