Sony Trinitron CPD-E500 - 2-5. N BOARD REMOVAL; 2-6. SERVICE POSITION

CPD-E500/E500E
N board
Printed circuit board holder
1
2
CN010
CN011
CN001
CN007
CN002
CN5002
CN5001
CN5003
CPD-E500
(U/C)
D board (Refer to 2-2.)
CN602
Rear shield
D,G boards
G board
(Refer to 2-3.)
AC inlet (3P)
CAUTION : SHORT
If the claw is hooked,
opening and closing
the board is impossible.
Do not try to do it by force.
If the claw is hooked,
opening and closing
the board is impossible.
Do not try to do it by force.

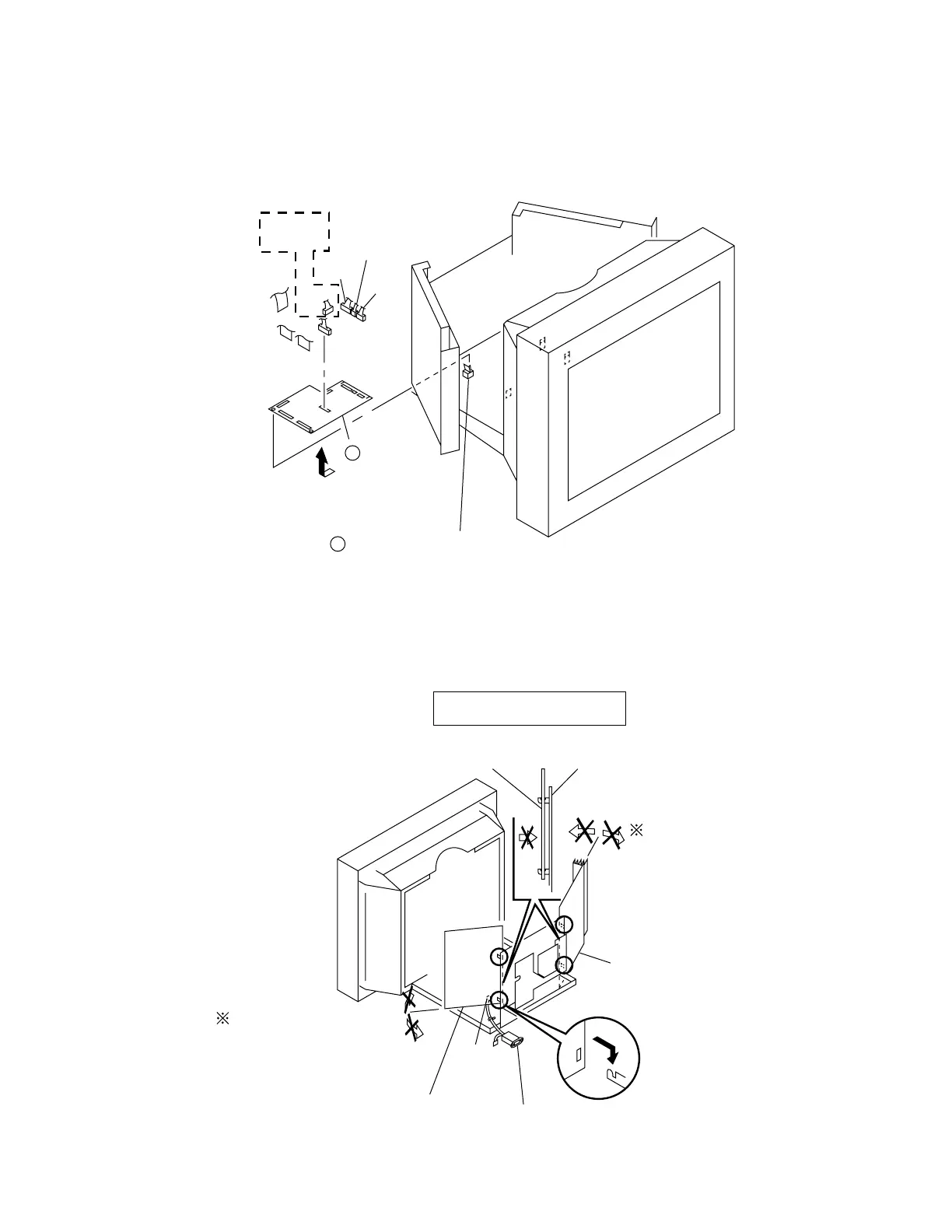

2-5. N BOARD REMOVAL
2-6. SERVICE POSITION
2-4
