Sony Trinitron CPD-E500 - 2-4. BOARD REMOVAL; 2-4-1. A BOARD, I;O TERMINAL BOARD ASSEMBLY REMOVAL (CPD-E500 E); 2-4-2. A BOARD, TERMINAL BRACKET REMOVAL (CPD-E500)

CPD-E500/E500E
A board (2/2)
Screw (M4)
(EXT tooth washer)
2
Three screws
(+BVTT 4 x 8)
1
Two screws
(HD15)
5
Terminal bracket
6
4
A board (1/2)
A board (1/2)
A board (1/2)
Screw lock
3
When installing I/O terminal
board assembly, be sure to apply
screw lock on 2 spots after
screws (HD15) are fixed.

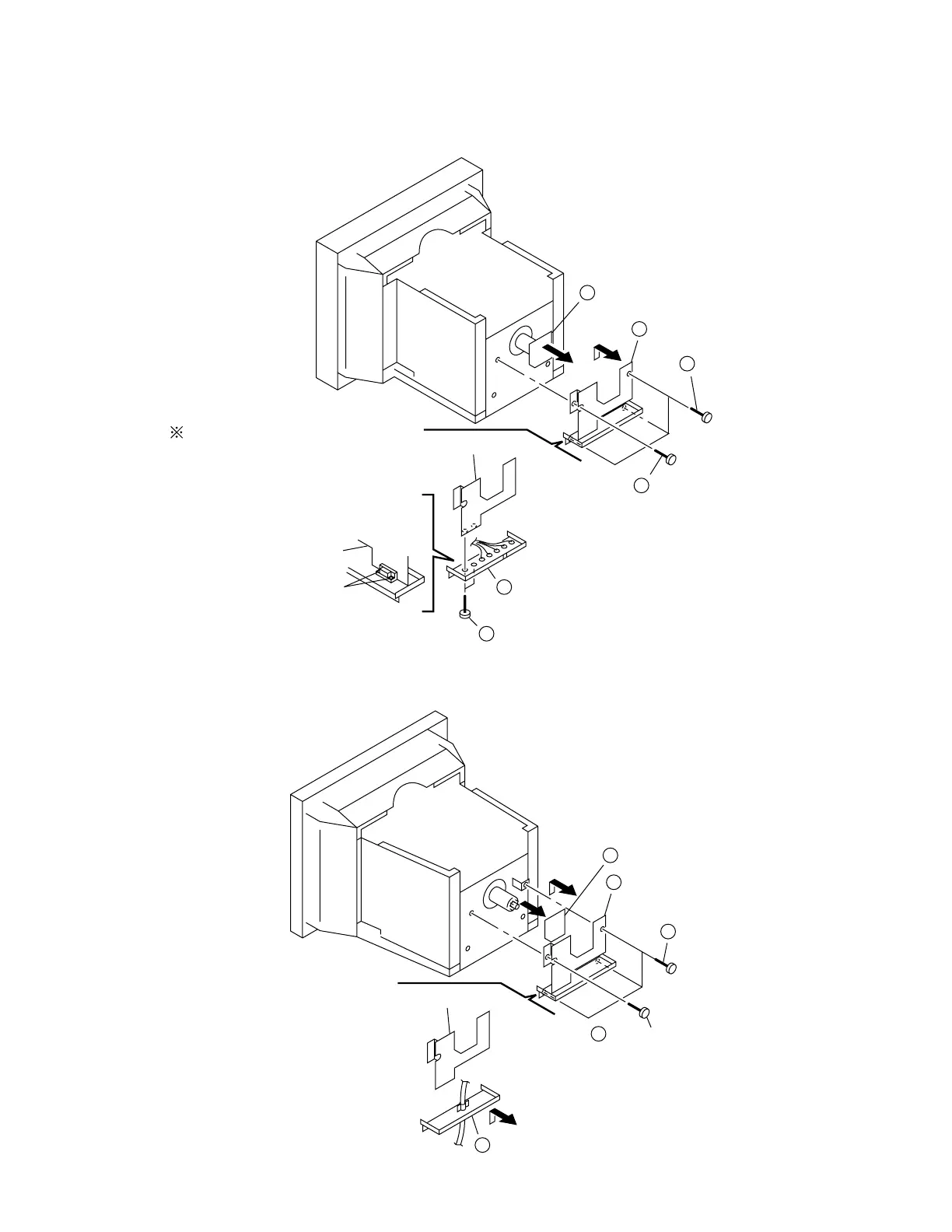

2-4-1. A BOARD, I/O TERMINAL BOARD ASSEMBLY REMOVAL (CPD-E500E)
2-4-2. A BOARD, TERMINAL BRACKET REMOVAL (CPD-E500)
A board (2/2)
Three screws
(+BVTT 4 x 8)
1
Screw (M4)
(EXT tooth washer)
2
Terminal board bracket
5
4
A board (1/2)
A board (1/2)
3
2-3
