Sony Trinitron CPD-E500 - 6-2. PICTURE TUBE ASSEMBLY

CPD-E500/E500E
60
70
51
61
71
52
62
56
53
63
73
64
74
55
65
75
54
72
66
76
57
67
58
68
59
69

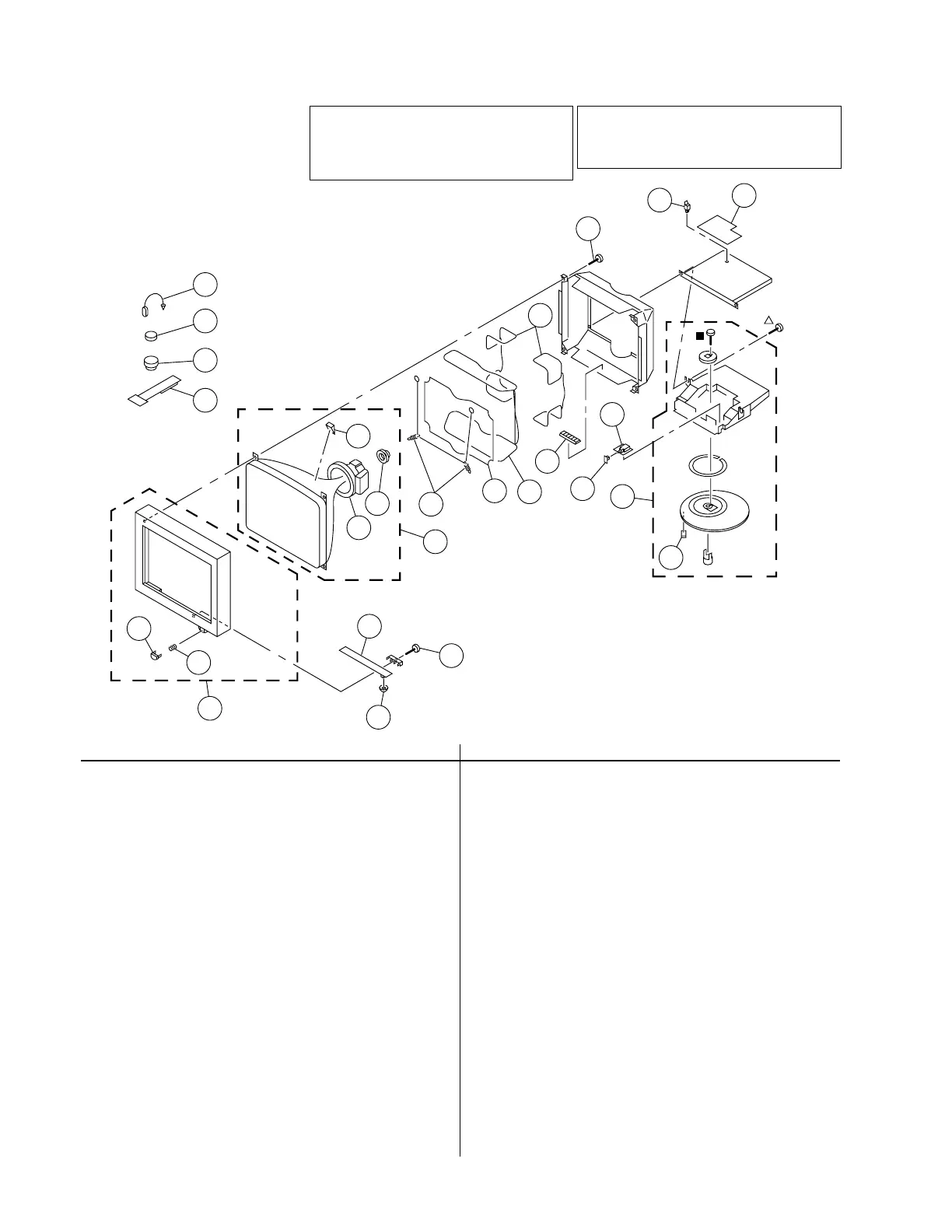

6-2. PICTURE TUBE
x 7-685-663-71 +BVTP 4X16
f 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
51 X-4037-550-1 BEZEL ASSY [U/C] 52,53
51 X-4200-569-1 BEZEL ASSY [AEP] 52,53
52 4-071-152-22 BUTTON, POWER [U/C]
52 4-204-957-01 BUTTON, POWER [AEP]
53 3-653-339-21 SPRING, COMPRESSION [U/C]
53 3-653-339-11 SPRING, COMPRESSION [AEP]
54 *A-1372-799-A H1 BOARD, COMPLETE
[U/C for Japan-made set]
54 *A-1372-770-A H1 BOARD, COMPLETE
[U/C for Mexico-made set]
54 *A-1646-206-A H1 BOARD, COMPLETE [AEP]
55 4-070-665-02 BUTTON, MENU
[U/C for Japan-made set]
55 4-071-155-02 BUTTON, MENU
[U/C for Mexico-made set]
55 4-204-970-01 BUTTON, MENU [AEP]
56 *A-1388-260-B J BOARD, COMPLETE [AEP]
56 *A-1388-250-B J BOARD, COMPLETE
[U/C for Japan-made set]
56 *A-1388-261-B J BOARD, COMPLETE
[U/C for Mexico-made set]
57 *4-394-972-21 CAP, POWER
58 X-4036-844-2 STAND ASSY 59
59 *4-061-996-11 CUSHION
60 ! 8-738-813-61 ITC ASSY (21TKC-R1) 61-63
61 ! 8-451-509-11 DEFLECTION YOKE Y21TKM-M
62 ! 1-452-912-61 NECK ASSEMBLY (NA-2914)
63 2-162-100-21 SPACER, DEFLECTION YOKE
64 *4-047-316-01 SPRING, EXTENSION
[U/C for Japan-made set, AEP]
64 *4-061-573-01 SPRING, TENSION
[U/C for Mexico-made set]
65 ! 1-419-130-21 COIL, LANDING CORRECTION
66 ! 1-419-128-21 COIL, DEGAUSSING
67 ! 1-419-129-21 COIL, LANDING CORRECTION
68 4-062-670-01 SPACER, PICTURE TUBE
69 4-203-648-01 SCREW (5), SELF TAPPING [AEP]
69 4-365-808-01 SCREW (5), TAPPING [U/C]
70 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
71 *A-1394-950-B N BOARD, COMPLETE [AEP]
71 *A-1394-984-A N BOARD, COMPLETE
[U/C for Japan-made set]
71 *A-1394-973-A N BOARD, COMPLETE
[U/C for Mexico-made set]
72 7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3 [U/C]
72 4-039-358-01 SCREW (4X16), (+) BV TAPPING [AEP]
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-032-00 MAGNET, DISK; 10mm φ
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15mm φ
76 4-051-736-21 PIECE A (90), CONV. CORRECT
