Sony Trinitron CPD-E500 - Page 39

5-29 5-30
N
µ-COM, V.CONV, H.CONV,
LCC, GEO MAGNETIC SENSOR

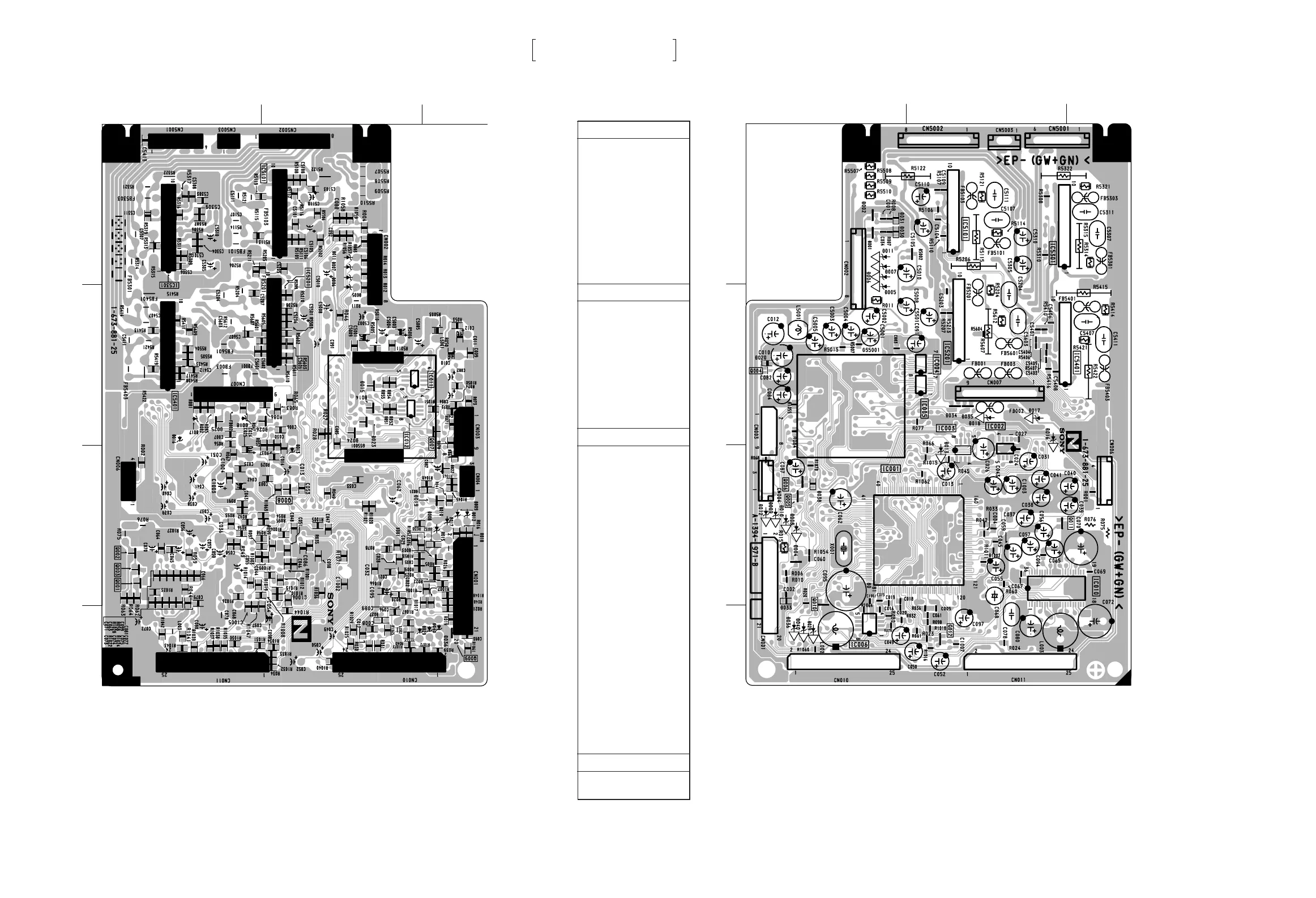

— N BOARD (Component Side) —
— N BOARD (Conductor Side) —
A
B
C
D
1 23
A
B
C
D
1 23
IC
IC001 C-2
IC002 C-2
IC003 C-2
IC004 B-2
IC005 B-2
IC006 D-1
IC010 C-2
IC011 B-2
IC012 B-2
IC5101 A-2 A-2
IC5201 B-2 B-2
IC5301 A-1 A-2
IC5401 B-1 B-2
TRANSISTOR
*
Q001 C-1 1
Q002 C-1 1
Q003 C-1 1
Q004 B-1 2
Q005 C-1 2
Q006 C-1 2
Q007 B-3 1
Q008 C-2 1
Q010 C-1 1
Q011 C-2 2
Q012 D-2 2
DIODE
*
D001 A-1 7
D002 A-1 7
D003 C-3 6
D004 C-1 7
D005 B-2 B-1 –
D006 A-2 A-1 –
D007 A-2 A-1 –
D008 C-3 C-1 –
D009 C-3 C-1 –
D010 C-3 C-1 –
D011 A-2 A-1 –
D012 C-3 C-1 –
D013 C-2 C-2 –
D014 B-2 8
D015 B-2 8
D016 B-1 B-2 –
D017 B-1 B-2 –
D018 B-1 B-2 –
D020 B-1 3
D021 C-3 3
D022 C-3 8
D023 B-2 8
D024 B-2 8
D025 B-1 6
D026 B-2 6
D027 D-2 3
D028 D-2 3
D029 D-3 D-1 –
D036 D-3 D-1 –
D038 C-1 3
D040 D-3 D-1 –
CRYSTAL
X001 C-2 C-1
Component
()
Side
Conductor
()
Side
• N BOARD
SEMICONDUCTOR
LOCATION
Component
()
Side
Conductor
()
Side
*
: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 5-10)
Component
()
Side
Conductor
()
Side
Component
()
Side
Conductor
()
Side
