G
POWER SUPPLY

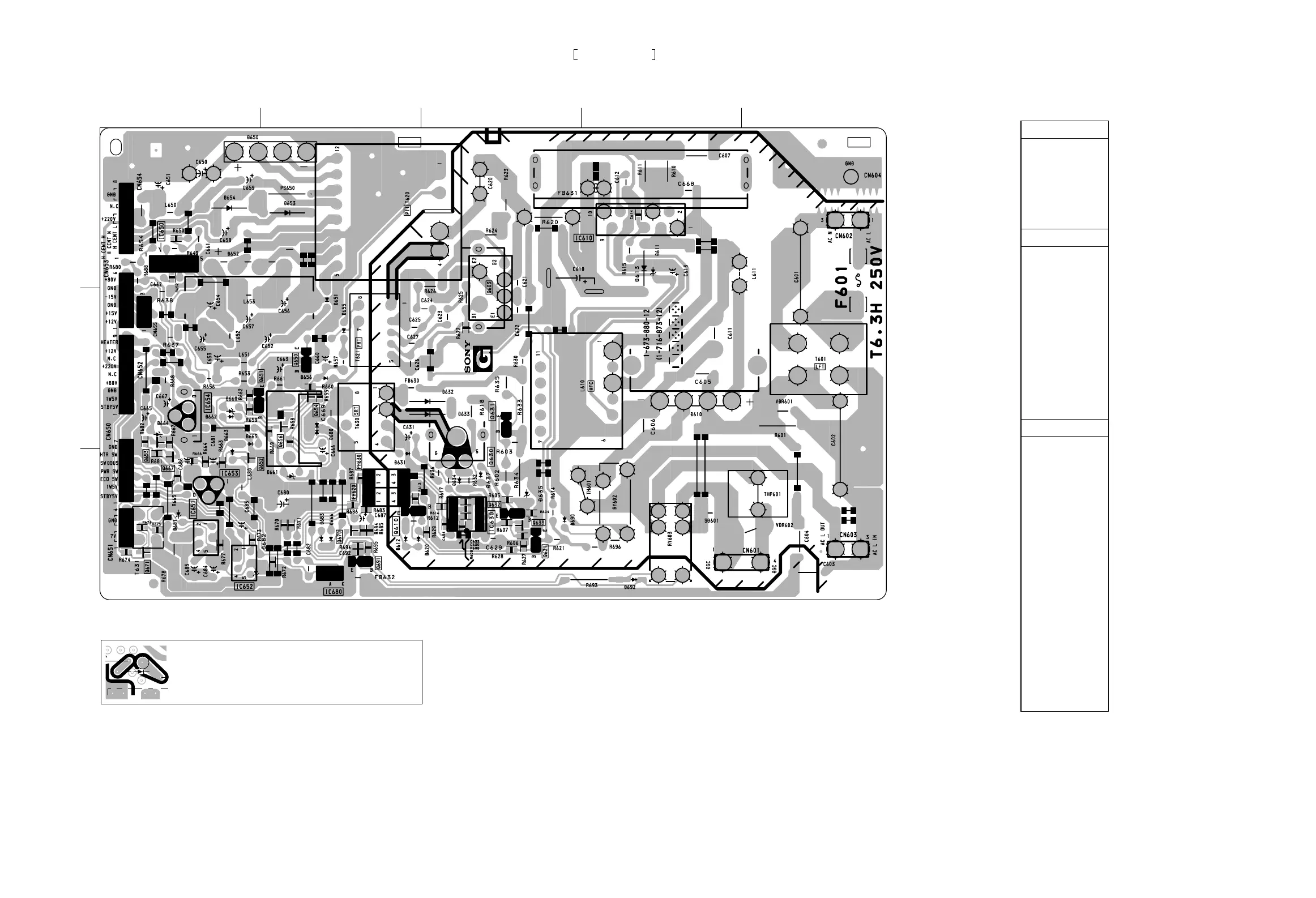

— G BOARD — • G BOARD
SEMICONDUCTOR
LOCATION
5-33 5-34
*
: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 5-10)
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
IC
IC610 A-4
IC630 C-3
IC650 A-1
IC651 C-1
IC652 C-1
IC653 C-1
IC654 B-1
IC680 C-2
TRANSISTOR
*
Q603 A-3 –
Q610 C-2 –
Q621 C-3 –
Q630 C-3 –
Q631 B-3 –
Q632 C-3 –
Q633 C-3 1
Q650 B-2 –
Q651 B-1 –
Q652 C-1 1
Q653 B-1 1
Q654 B-2 1
Q667 C-1 1
Q670 C-2 1
Q671 C-1 1
Q691 C-2 –
DIODE
D610 B-4
D612 C-2
D613 A-4
D620 C-2
D631 C-2
D632 B-3
D633 B-3
D634 C-3
D635 C-3
D637 C-3
D650 A-2
D651 B-2
D652 A-1
D653 A-2
D654 A-1
D655 B-2
D656 B-2
D660 B-1
D661 C-2
D663 C-1
D664 B-1
D665 B-1
D666 C-2
D680 B-2
D681 C-1
D682 C-1
D683 C-2
D690 C-3
D692 C-4
