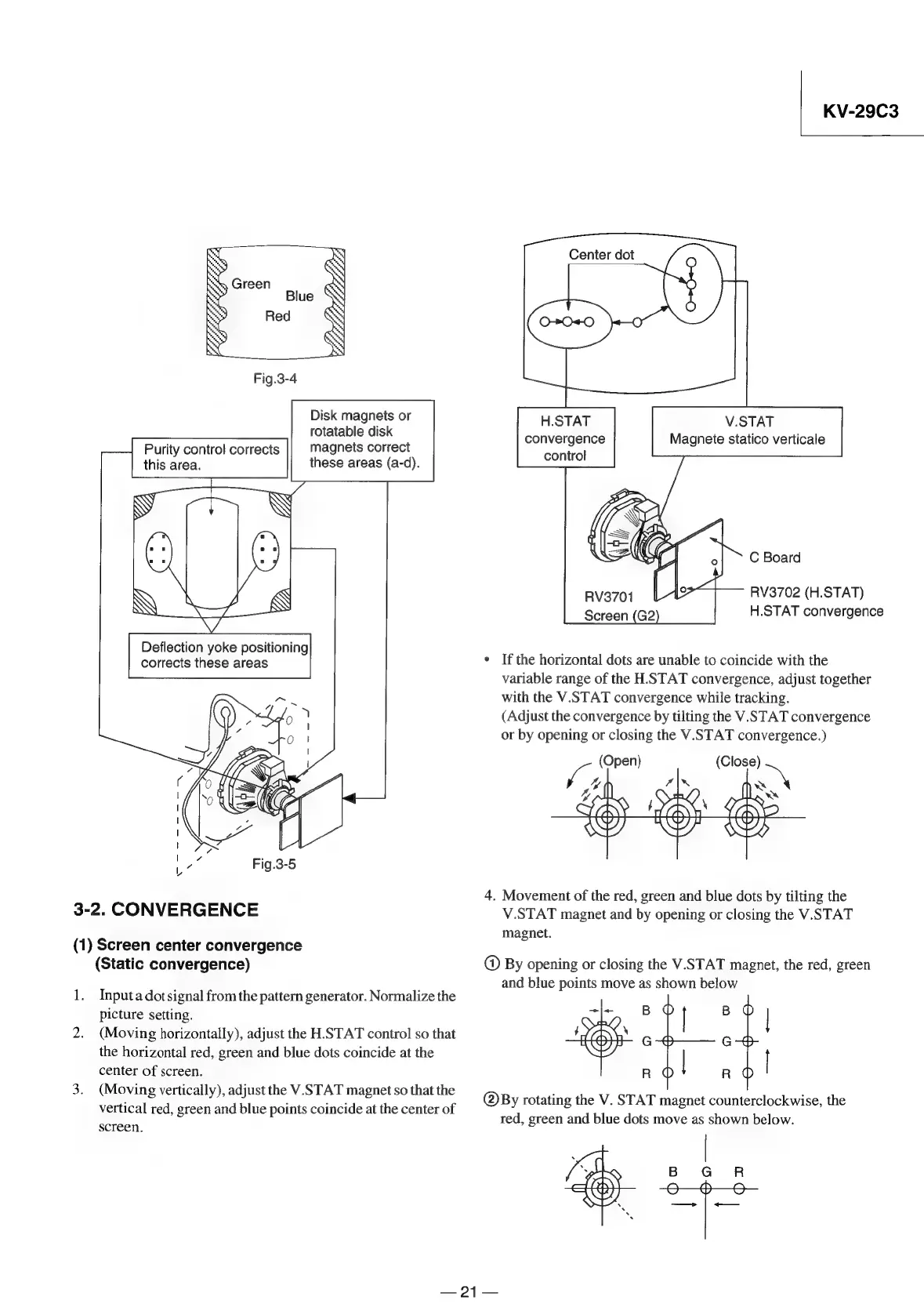

Sony TRINITRON KV-29C3A - Page 21

Disk magnets or
rotatable disk
magnets correct
these areas (a-d).
KV-29C3
Center dot
H.STAT
convergence
control
V.STAT
Magnete statico verticale
C Board
RV3702 (H.STAT)
H.STAT convergence
RV3701
Screen (G2
If the horizontal dots are unable to coincide with the
variable range of the H.STAT convergence, adjust together
with the V.STAT convergence while tracking.
(Adjust the convergence by tilting the V.STAT convergence
or by opening or closing the V.STAT convergence.)
4. Movement of the red, green and blue dots by tilting the
3-2.
CONVERGENCE
V.STAT
magnet
and
by
opening
or
closing
the
V.STAT
magnet.
(1) Screen center convergence
(Static convergence) @) By opening or closing the V.STAT magnet, the red, green
1. Inputadotsignal from the pattern generator. Normalize the
picture setting.
2. (Moving horizontally), adjust the HSTAT control so that
the horizontal red, green and blue dots coincide at the
center of screen.
3. (Moving vertically), adjust the V.STAT magnet so that the
vertical red, green and blue points coincide at the center of
screen.
—21—
and blue points move as shown below
| * Tl
@By rotating the V. STAT magnet counterclockwise, the
red, green and blue dots move as shown below.
