Sony TRINITRON KV-29C3A - Exploded Views

KV-29C3
NOTE:
* Items with no part number and no description are not stocked because they J

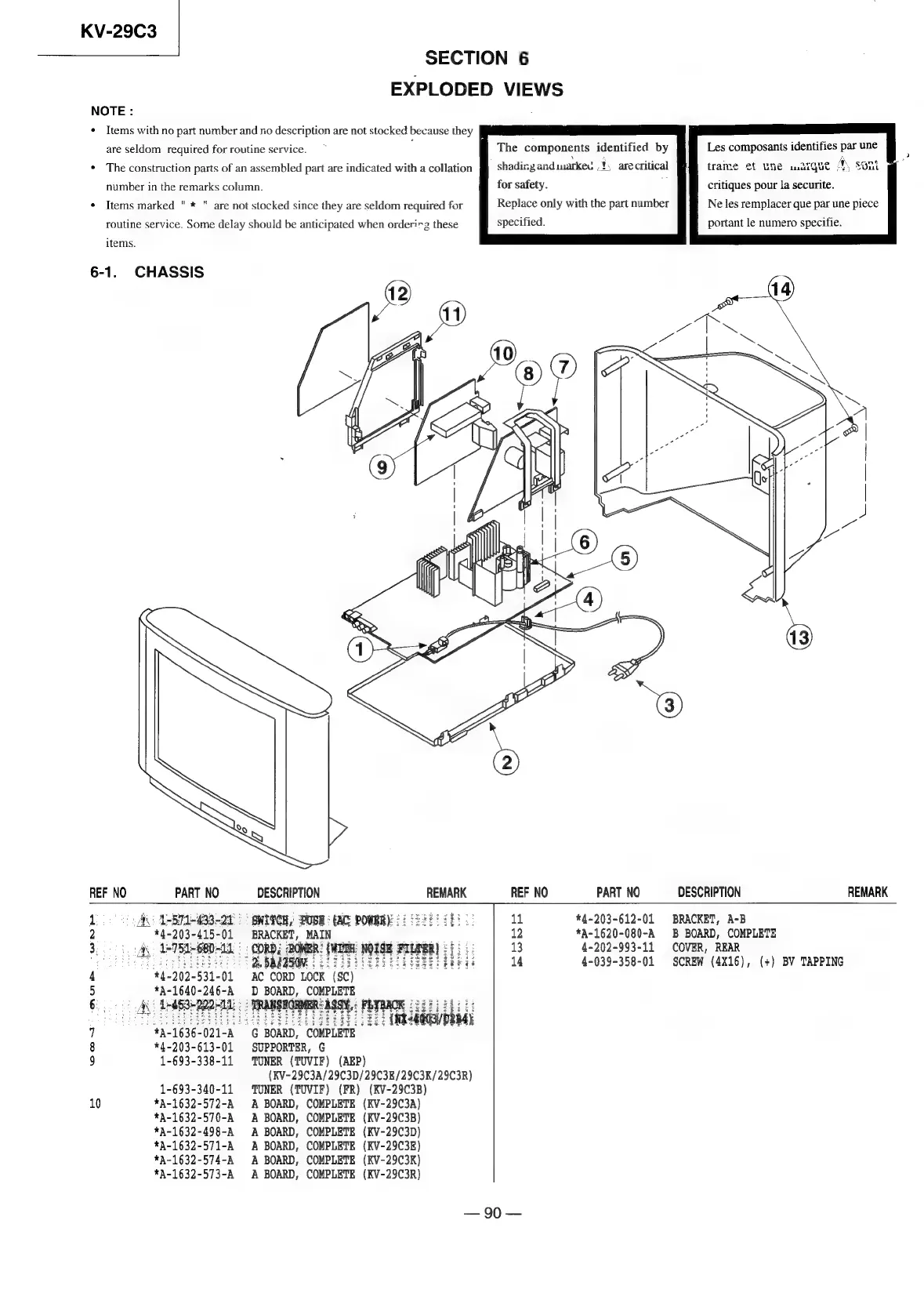

SECTION 6
EXPLODED VIEWS
are seldom required for routine service.
* The construction parts of an assembled part are indicated with a collation
number in the remarks column.
¢ Items marked "* " are not stocked since they are seldom required for
routine service. Some delay should be anticipated when orderi=z these
items.
6-1. CHASSIS
=<
REF NO PART NO DESCRIPTION REMARK
1. Qu: 1-571-433-21 SWIPCH, PUSH (AC POWBR)! ©: {2555582
2 *4-203-415-01 BRACKET, MAIN 23
3... 5. Ay. L-751-680-12 | - CORD, ae: WOH: NOISE FILTER) < {5
“sl
hibeeeepaipihaekssey
1
By
BARZSOM
:
25
ie
Se
bee
ds
4 *4-202-531-01 AC CORD LOCK (SC)
5 *A-1640-246-A D BOARD, COMPLETE
6+ A 1e453*202-10; - : TRANSR ui
ee ae £2,227 (WR4800B/02B4):
7 *A-1636-021-A G BOARD, COMPLETE
8 *4-203-613-01 SUPPORTER, G
9 1-693-338-11 TUNER (TUVIF) (AEP)
(KV-29C3A/29C3D/29C3E/29C3K/29C3R)
1-693-340-11 TUNER (TUVIF) (FR) (KV-29C3B)
10 *A-1632-572-A A BOARD, COMPLETE (KV~29C3A)
*A-1632-570-A A BOARD, COMPLETE (KV-29C3B)
*A-1632-498-A A BOARD, COMPLETE (KV-29C3D)
*A-1632-571-A A BOARD, COMPLETE (KV-29C3E)
*A-1632-574-A A BOARD, COMPLETE (KV-29C3K)
*A-1632-573-A A BOARD, COMPLETE (KV-29C3R)
The components identified by
shading andmarked ,!, arecritical
for safety.
Replace only with the part number
specified.
Les composants identifies par une
trame et une wargue
critiques pour la securite.
Ne les remplacer que par une piece
portant le numero specifie.
DESCRIPTION REMARK
REF NO PART NO
11 *4-203-612-01
12 *A-1620-080-A
13 4-202-993-11
14 4-039-358-01
BRACKET, A-B
B BOARD, COMPLETE
COVER, REAR
SCREW (4X16), (+) BV TAPPING
A sont
