Sony TRINITRON KV-29C3A - Volume Electrical Adjustments

KV-29C3

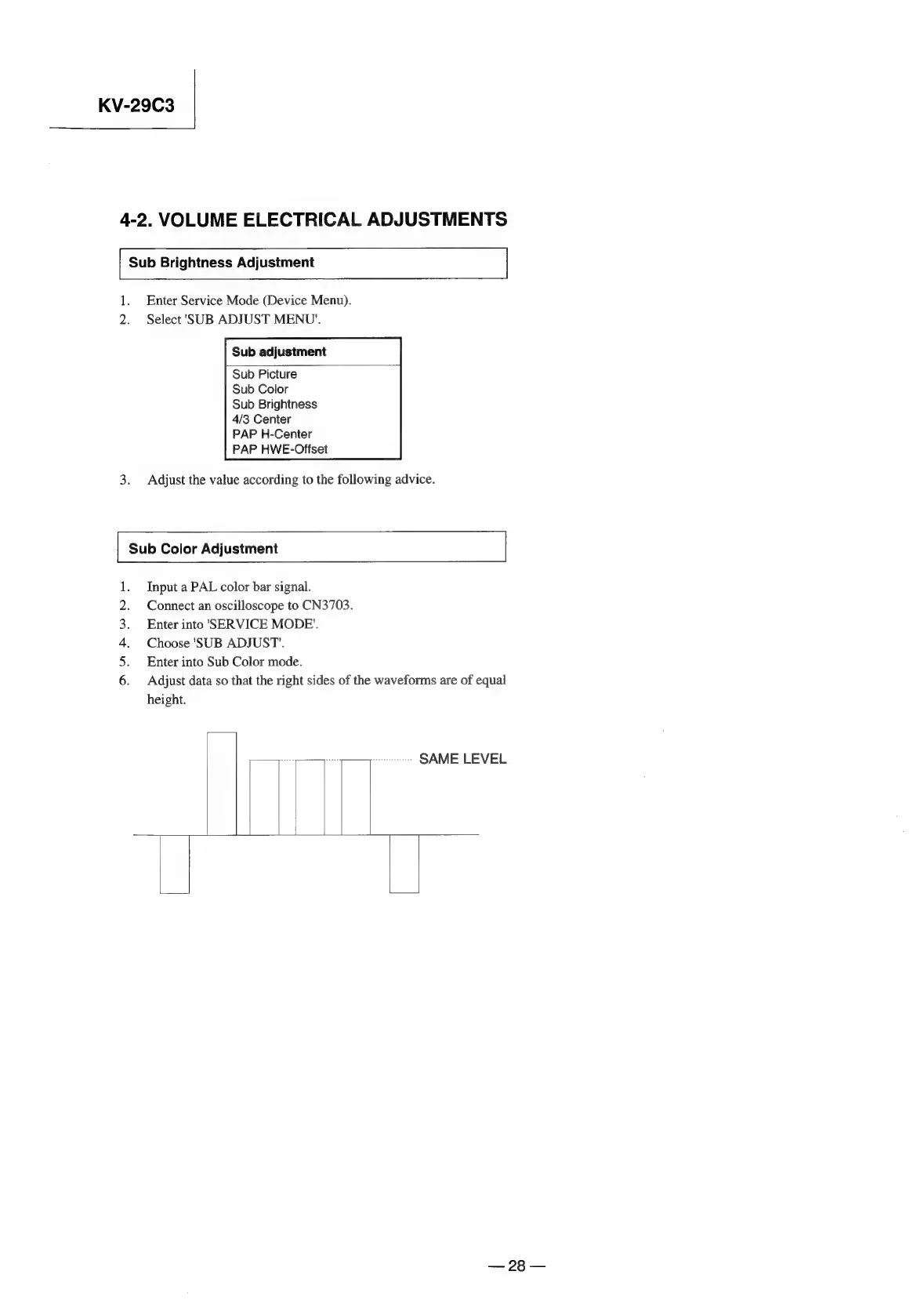

4-2. VOLUME ELECTRICAL ADJUSTMENTS
Sub Brightness Adjustment |
1. Enter Service Mode (Device Menu).
2. Select 'SUB ADJUST MENU'.
Sub adjustment
Sub Picture
Sub Color
Sub Brightness
4/3 Center
PAP H-Center
PAP HWE-Offset
3. Adjust the value according to the following advice.
Sub Color Adjustment
Input a PAL color bar signal.
Connect an oscilloscope to CN3703.
Enter into 'SERVICE MODE".
Choose 'SUB ADJUST".
Enter into Sub Color mode.
Adjust data so that the right sides of the waveforms are of equal
height.
DNA i ON
~ oe GAME LEVEL
— 28 —
