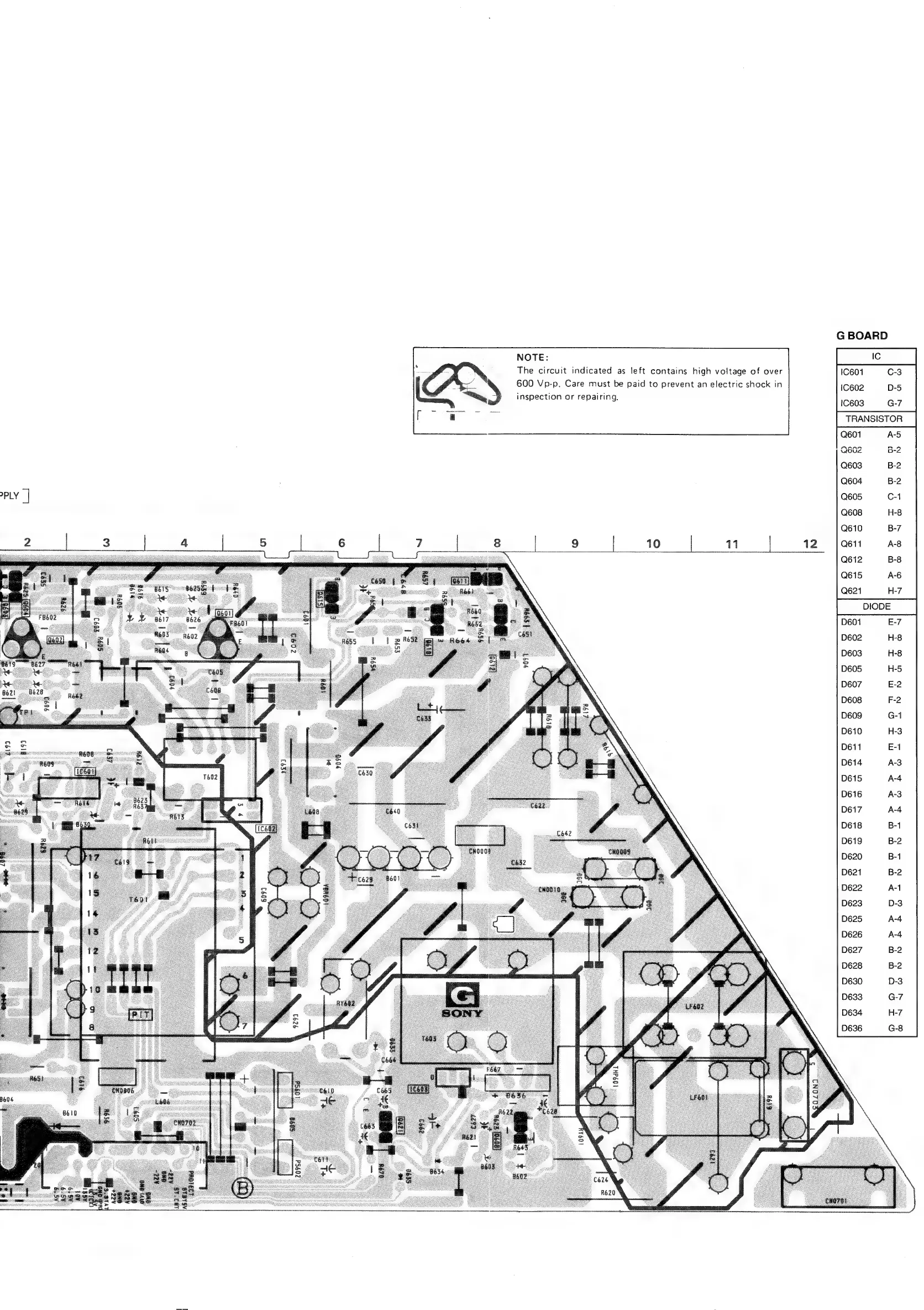

Sony TRINITRON KV-29C3A - G Board

NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
G BOARD
IC601
IC602
IC603
Q601
mMans
C-3
D-5
G-7
