Sony TRINITRON KV-32WS4A - A Board Removal; Picture Tube Removal

KV-32WS4
— 18 —

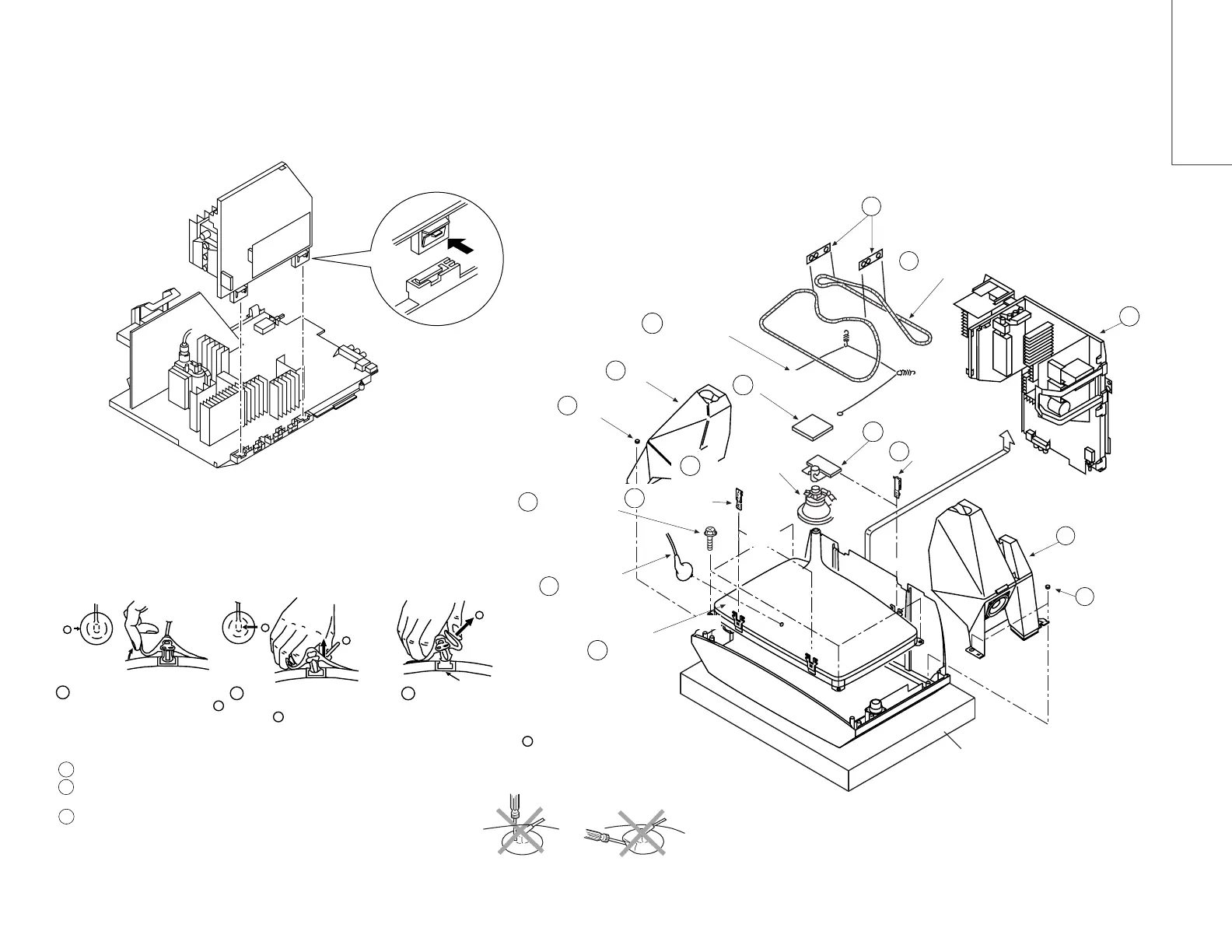

2-6. A BOARD REMOVAL 2-7. PICUTRE TUBE REMOVAL
1
2
3
• HOW TO HANDLE AN ANODE-CAP
Don't damage the surface of anode-cap with sharp shaped material !
Don't press the rubber hardly not to hurt inside of anode-caps !
A metal fitting called as shatter-hook terminal is built into the rubber.
Don’t turn the foot of rubber over hardly !
The shatter-hook terminal will stick out or damage the rubber
.
b
b
Anode button
a
* REMOVING PROCEDURES.
c
Turn up one side of the rubber cap in
the direction indicated by the arrow a
1
2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow b
3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling it up in
the direction of the arrow c
• REMOVAL OF ANODE-CAP
Note: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or
carbon paint on the CRT, after removing the anode.
1
Two screws
2
Speaker
6
Chassis
7
DGC clips
Spring tension
10
Speaker
4
3
Two screws
Deflection yoke
13
8
DGC clips
Picture tube
15
Anode cap
5
Four tapping
screws (M)
14
Cushion
Push the claw of the bracket
in the direction of the arrow
and remove.
Neck assy
12
8
DGC clips
11
C board
9
Degaussing coil
