— 111 —
KV-32WS4
EXPLODED VIEWS
SECTION 6
NOTE :
• Items with no part number and no description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled part are indicated with a collation
number in the remarks column.
• Items marked " * " are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering these
items.
The components identified by
shading and marked are critical
for safety.
Replace only with the part number
specified.
Les composants identifies par une
trame et une marque sont
critiques pour la securite.
Ne les remplacer que par une piece
portant le numero specifie.

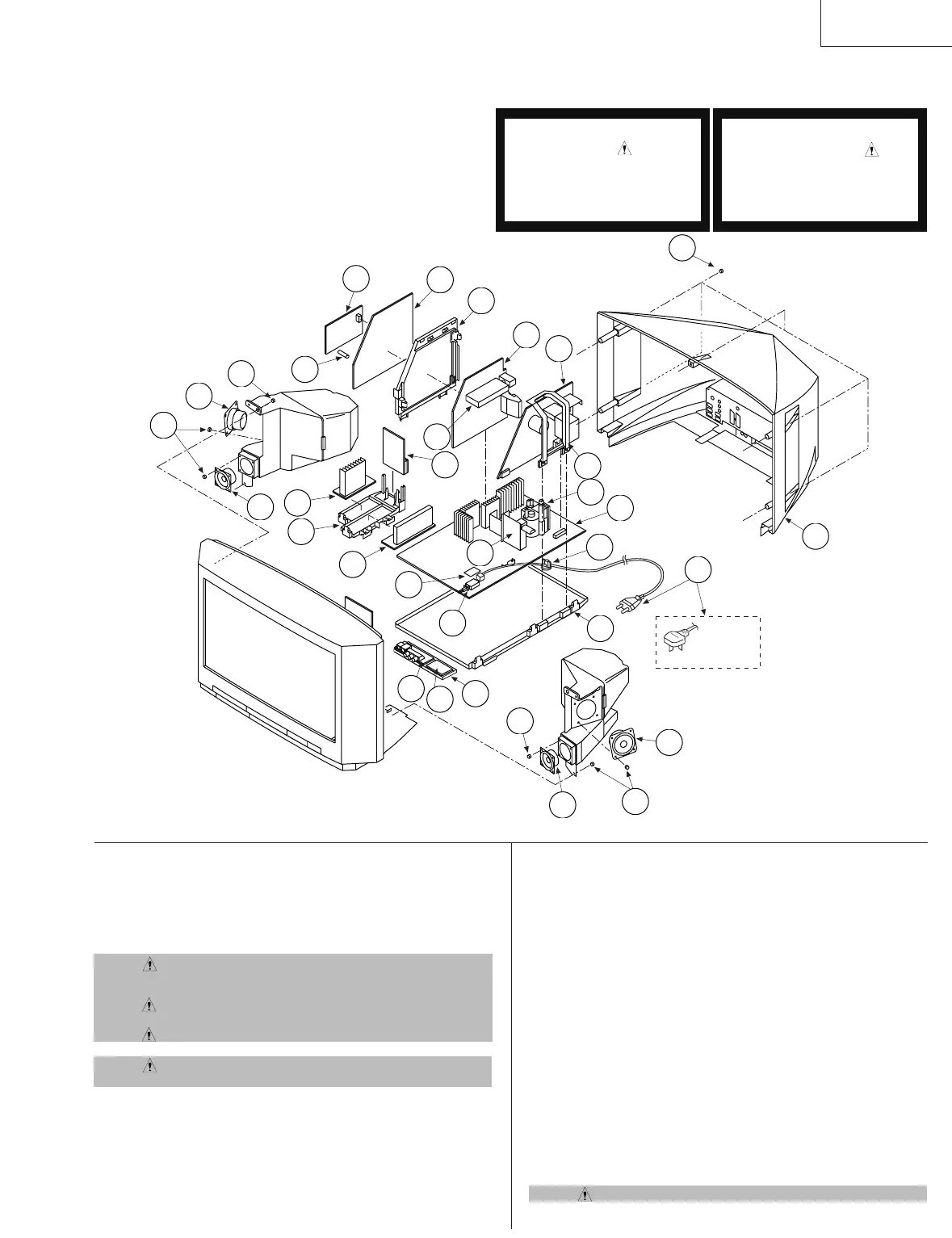

6-1. CHASSIS
1
2
3
4
5
4
6
8
9
7
13
11
10
27
16 1-693-338-21 TUNER (TUVIF) (AEP)
(KV-32WS4A/32WS4D/32WS4E/32WS4K/32WS4R)
1-693-340-21 TUNER (TUVIF) (FR) (KV-32WS4B)
1-693-339-21 TUNER (TUVIF) (UK) (KV-32WS4U)
17 *4-203-612-01 BRACKET, A-B
18 *A-1620-079-A B BOARD, COMPLETE
(KV-32WS4A/32WS4D/32WS4E/32WS4K/32WS4R/
32WS4U)
*A-1620-086-A B BOARD, COMPLETE (KV-32WS4B)
19 *A-1626-008-A Q BOARD, COMPLETE (KV-32WS4A/32WS4D/
32WS4E/32WS4K/32WS4R/32WS4U)
20 *4-203-568-01 HOLDER, PCB (KV-32WS4A/32WS4D/32WS4E/
32WS4K/32WS4R/32WS4U)
21 *A-1651-085-A J1 BOARD, COMPLETE (KV-32WS4A/32WS4D/
32WS4E/32WS4K/32WS4R/32WS4U)
*A-1651-090-A J1 BOARD, COMPLETE (KV-32WS4B)
22 *A-1649-016-A K BOARD, COMPLETE
23 *4-203-537-01 BRACKET, J-K-T
24 *A-1652-043-A T BOARD, COMPLETE
(KV-32WS4A/32WS4D/32WS4E/32WS4K/32WS4R)
*A-1652-045-A T BOARD, COMPLETE (KV-32WS4B)
*A-1652-046-A T BOARD, COMPLETE (KV-32WS4U)
25 4-386-611-01 COVER SWITCH
26 1-571-433-21 SWITCH, PUSH (AC POWER)
27 4-203-582-01 COVER, REAR
28 4-039-358-01 SCREW (4X16), (+) BV TAPPING
REF NO PART NO DESCRIPTION REMARK
1 *A-1646-122-A H1 BOARD, COMPLETE
2 *A-1646-123-A H2 BOARD, COMPLETE
3 *4-203-627-01 BRACKET, H
4 4-039-355-11 SCREW(4X12), (+) BV TAPPING
5 1-505-154-11 SPEAKER (6.5CM)
6 1-505-155-11 SPEAKER (10CM)
7 *4-203-457-01 BRACKET, MAIN
8 1-751-680-11 CORD, POWER (WITH NOISE FILTER)
2.5A/250V (KV-32WS4A/32WS4B/32WS4D/
32WS4E/32WS4K/32WS4R)
1-776-204-11 CORD, POWER (FILTER)
3A/250V (KV-32WS4U)
9 *4-202-531-01 AC CORD LOCK (SC)
10 *A-1640-245-A D BOARD, COMPLETE
11 1-453-223-11 TRANSFORMER ASSY, FLYBACK
(NX-4123/U2B4)
12 *4-203-609-01 HOLDER, G
13 *4-203-613-01 SUPPORTER, G
14 *A-1636-020-A G BOARD, COMPLETE
15 *A-1632-577-A A BOARD, COMPLETE (KV-32WS4A)
*A-1632-575-A A BOARD, COMPLETE (KV-32WS4B)
*A-1632-497-A A BOARD, COMPLETE (KV-32WS4D)
*A-1632-578-A A BOARD, COMPLETE (KV-32WS4E)
*A-1632-579-A A BOARD, COMPLETE (KV-32WS4K)
*A-1632-580-A A BOARD, COMPLETE (KV-32WS4R)
*A-1632-576-A A BOARD, COMPLETE (KV-32WS4U)
REF NO PART NO DESCRIPTION REMARK
KV-32WS4U ONLY
28
12
26
25
15
14
17
21
16
18
19
20
22
23
24
4
5
6
4
