Sony TRINITRON KV-32WS4A - T Board; Picture Tube

KV-32WS4
— 112 —

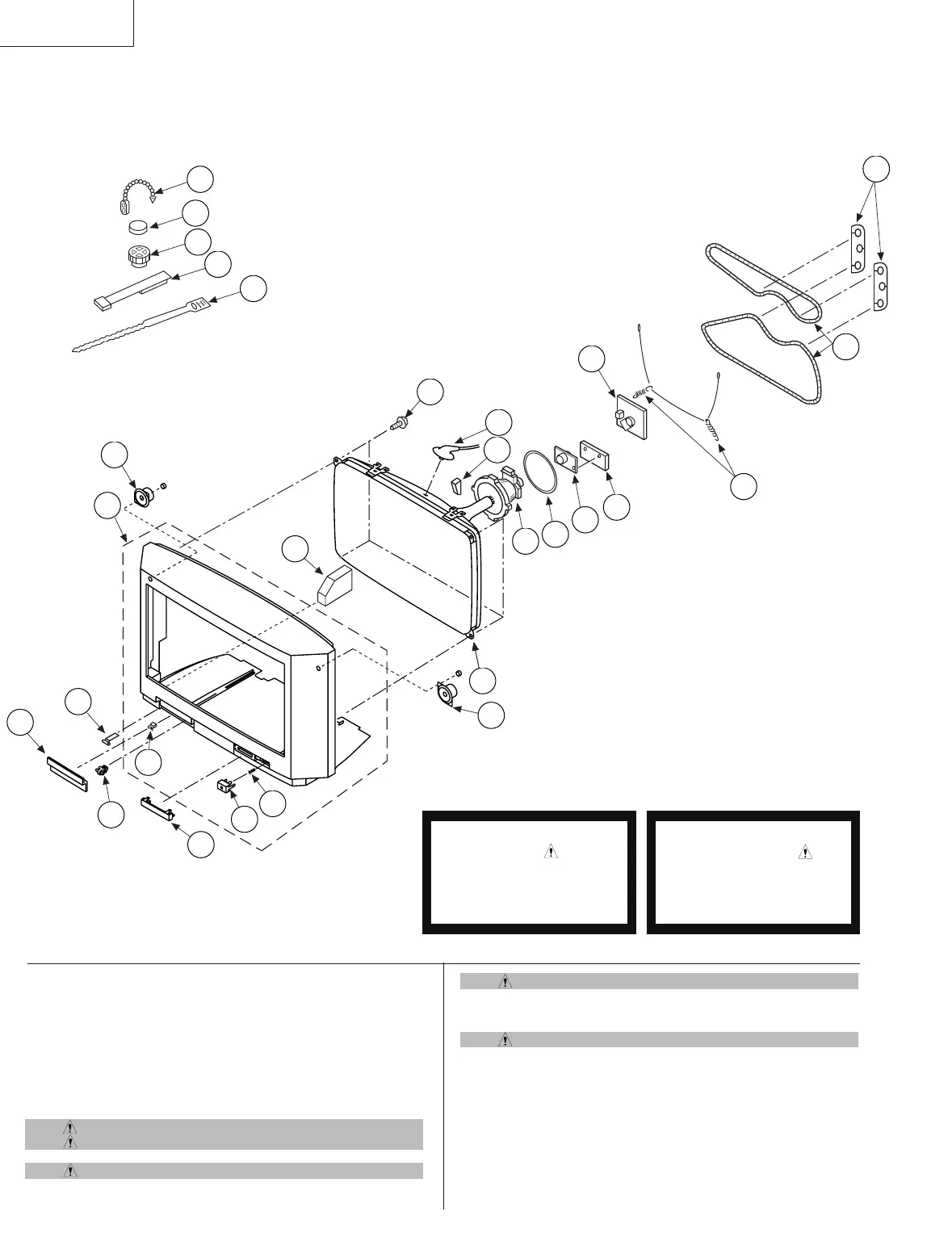

6-2. PICTURE TUBE
REF NO PART NO DESCRIPTION REMARK
Les composants identifies par une
trame et une marque sont
critiques pour la securite.
Ne les remplacer que par une piece
portant le numero specifie.
The components identified by
shading and marked are critical
for safety.
Replace only with the part number
specified.
REF NO PART NO DESCRIPTION REMARK
51 A-4200-284-1 BEZNET ASSY 52-54
52 4-392-036-01 CATCHER PUSH
53 4-203-581-01 BUTTON, POWER
54 4-202-964-01 SPRING
55 4-045-250-01 DAMPER
56 4-203-625-01 DOOR (PAINTED)
57 4-202-555-01 SHAFT, DOOR
58 4-203-539-01 WINDOW ORNAMENTAL
59 1-504-418-21 SPEAKER (5CM)
60 *4-203-098-01 SUPPORTER, CRT
61 8-735-032-05 PICTURE TUBE (SD-297) (W76LHT010X)
62 8-451-485-11 DEFLECTION YOKE (Y32C2C2-M)
63 3-704-495-01 SPACER, DY
64 1-251-317-31 CAP ASSY, HIGH-VOLTAGE
65 4-203-216-01 PT-SCREW
66 1-452-724-22 COIL, NA ROTATION (RT-165)
67 8-453-011-11 NECK ASSY PICTURE TUBE (NA299-M)
68 *A-1644-076-A VM BOARD, COMPLETE
69 *A-1638-096-A C BOARD, COMPLETE
70 4-369-318-51 SPRING, TENSION
71 1-411-871-11 COIL DEGAUSSING
72 4-202-749-01 HOLDER, D.G.C. (29"/32")
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-032-00 MAGNET, DISK; 10MM Ø
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
76 X-4387-214-1 PERMALLOY ASSY, CORRECTION
77 3-701-007-00 BAND, BINDING
